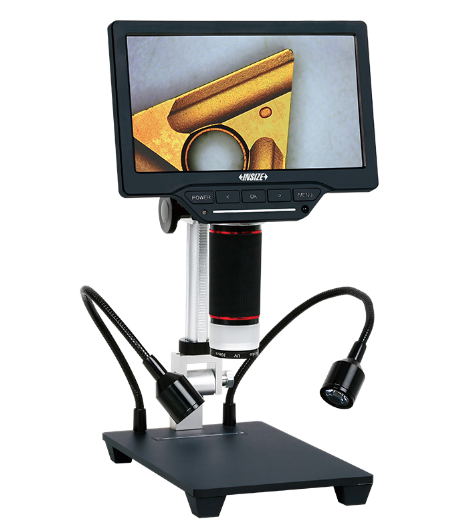

Mini Digital Microscope (Economic Type)
BDT 79,494/-
Product Details
Brand: INSIZE
Model: 5311-M710
Country Of Origin: China
Features:
Screen freezing: full screen, up-down split screen, left-right split screen, 1/4 split screen.
| Display: | 10.1" IPS (1280Ã800) |
| Sensor: | 1/3" CMOS, 13M Pixel |
| Magnification: | 6.5X~60X |
| Output: | HDMI |
| Dimensions: | 180Ã200Ã360mm |
| Net Weight: | 1.3kg |
The INSIZE 5311-M710 Mini Digital Microscope (Economic Type) is a highly portable, standalone inspection system designed for versatile quality control and electronics troubleshooting. Featuring a bright 10.1-inch IPS display and a built-in lithium battery, it allows for completely untethered operation, making it easy to move around the workspace.
Equipped with a 13-megapixel CMOS sensor and a magnification range of 6.5X to 60X, it delivers sharp, detailed images. The microscope features dual illumination with a dial wheel control for precise brightness adjustment, and an adjustable stand to tilt the viewing angle. It supports advanced on-screen features like customizable grids and crosshairs, as well as screen-freezing split-screen modes for easy comparison. When advanced analysis is required, it can be connected to a PC via USB to utilize the included measurement software (with a 0.02mm measuring accuracy). It comes complete with a 32G memory card, an IR remote controller, and a plastic calibration ruler.
INSIZE 5311-M710 Mini Digital Microscope – Portable Standalone Inspection System
Experience the freedom of untethered microscopy with the INSIZE 5311-M710 Mini Digital Microscope. Designed as a highly portable "Economic Type" solution, this advanced system features a built-in lithium battery and a large 10.1" IPS display, allowing you to perform detailed inspections anywhere on the shop floor or in the lab without being tied to a power outlet or computer.
Key Features & Benefits:
-
True Portability: The built-in rechargeable battery and compact, lightweight design (1.3kg) make this microscope incredibly easy to transport and set up on the fly.
-
High-Resolution Imaging: Equipped with a 13-megapixel CMOS sensor, it captures crystal-clear images and videos. The 6.5X to 60X magnification range offers excellent versatility for inspecting PCBs, mechanical parts, and more.
-
Advanced On-Screen Features: The system supports customizable grid and crosshair overlays for easy alignment. It also features a screen-freezing function with split-screen modes (up/down, left/right, 1/4), allowing you to compare real-time images with frozen reference shots.
-
Precision Illumination: Dual LED illumination with intuitive dial-wheel brightness control ensures the workpiece is always perfectly lit.
-
PC Connectivity & Measurement: While fully standalone, the microscope can be connected to a PC via USB to utilize the included professional measurement software, which offers a wide array of tools (angle, radius, distance, etc.) with an accuracy of 0.02mm.
-
Complete Turnkey Package: Comes with a 32G memory card for standalone recording, an IR remote controller for hands-free operation, an HDMI cable, and a calibration ruler.
