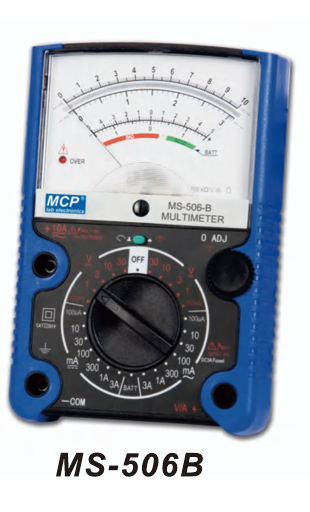

MS-506B Multimeter
BDT 3,933/-
Product Details
Brand: MCP
Model: MS-506B
Country Of Origin: China
Feature
Sturdy, simple and extremely safe to use
LCR measuring (MS-508 only)
High accuracy and reliability
Combination of electronic and mechanical advantage
Single switch for range selection
Safety sockets and dual insulation
| Function: | Multimeter (Analog) |
| DC Voltage: | 0~100mV to 0~1000V |
| AC Voltage: | 0~100mV to 0~1000V |
| DC Current: | 0~100ÂĩA to 0~10A |
| AC Current: | 0~100ÂĩA to 0~10A |
| Resistance: | 100Ί, 10, 100, 1K |
| Accuracy: | 2.0% DCV, 3.0% DCA/ACV, 4.0% ACA |
| Battery Test: | 1.5V / 9V |
| Dimensions: | 160X105X44mm |
| Weight: | 350g |
The MCP MS-506B Analog Multimeter is a comprehensive, all-in-one testing instrument designed for versatile electrical diagnostics. As a feature-rich model in the MS 500 Series, it combines multiple functions into a single rugged device. It measures DC voltage (100mV~1000V), AC voltage (100mV~1000V), DC current (100µA~10A), AC current (100µA~10A), and resistance (up to 1kΩ). Additionally, it includes a dedicated battery test function (1.5V/9V) and a 0 ADJ control for calibration. With accuracy ranging from 2.0% to 4.0% depending on the range, this multimeter is perfect for professionals. It features a sturdy, simple design with dual insulation and safety sockets for maximum safety. The single-switch range selection ensures straightforward operation, and its compact, portable form factor makes it ideal for field and laboratory use.
MCP MS-506B Analog Multimeter – All-in-One Electrical Tester
Simplify your electrical diagnostics with the MCP MS-506B, a professional-grade analog multimeter that combines multiple testing functions into one durable, portable device. As a key model in the MS 500 Series, it is ideal for electricians, engineers, and technicians who need a reliable tool for voltage, current, resistance, and battery testing in industrial, commercial, or laboratory settings.
Key Features & Benefits:
-
Multi-Function Capability: Measures DC Voltage, AC Voltage, DC Current, AC Current, and Resistance, eliminating the need for multiple instruments.
-
Extensive Measurement Ranges:
-
DCV: 0~100mV to 0~1000V
-
ACV: 0~100mV to 0~1000V
-
DCA: 0~100µA to 0~10A
-
ACA: 0~100µA to 0~10A
-
Resistance: Up to 1kΩ (with 100Ω, 10, 100, 1K ranges)
-
-
Battery Test Function: Includes dedicated 1.5V and 9V battery test ranges for quick checks.
-
High Accuracy: Delivers reliable readings with accuracy ranging from 2.0% to 4.0% depending on the measurement range.
-
Overload Protection: Features an "OVER" indicator light to warn of excessive input.
-
Rugged & Portable: The sturdy, simple design features dual insulation and safety sockets for user protection. Compact and lightweight.
-
Simple Operation: Features a single rotary switch for quick range selection, a 0 ADJ control for calibration, and a clear analog display.
