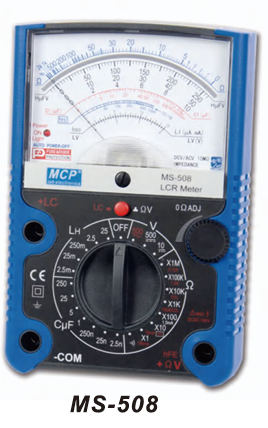

MS-508 LCR Multimeter
BDT 4,867/-
Product Details
Brand: MCP
Model: MS-508
Country Of Origin: China
Feature
Sturdy, simple and extremely safe to use
LCR measuring (MS-508 only)
High accuracy and reliability
Combination of electronic and mechanical advantage
Single switch for range selection
Safety sockets and dual insulation
| Function: | LCR Multimeter (Analog) |
| DC Voltage: | 0~10V / 0~500V |
| AC Voltage: | 0~500V |
| Resistance: | 0.2Ω ~ 2000MΩ |
| Inductance: | 0 ~ 25H (2.5mH, 25mH, 250mH, 2.5H, 25H) |
| Capacitance: | C1: 0~250µF, C2: 10~4000µF |
| Accuracy: | 3.0% (4.0% for 200k~2000MΩ) |
| Dimensions: | 160 x 105 x 44 mm |
| Weight: | 400g |
The MCP MS-508 Analog LCR Multimeter is a specialized, high-precision instrument designed for comprehensive testing of Inductance (L), Capacitance (C), and Resistance (R). As the flagship model in the MS 500 Series, it offers an extensive measurement range, including resistance up to 2000MΩ, inductance from 2.5mH to 25H, and capacitance from 2.5nF to 4000µF. It also measures DC voltage (up to 500V) and AC voltage (up to 500V). With accuracy ranging from 3.0% to 4.0%, this LCR meter is ideal for engineers, technicians, and hobbyists working with electronic components. It features a sturdy, simple design with dual insulation and safety sockets, plus a 0 ADJ control for calibration and an hFE terminal for transistor testing. Its compact, portable form factor (160 x 105 x 44 mm, 400g) makes it perfect for field and laboratory use.
MCP MS-508 Analog LCR Multimeter – Inductance, Capacitance & Resistance Tester
Measure electronic components with exceptional versatility using the MCP MS-508, a professional-grade analog LCR multimeter designed for accuracy and durability. As the flagship model in the MS 500 Series, this instrument is ideal for engineers, technicians, and electronics hobbyists who require dependable testing of inductance, capacitance, resistance, and voltage in laboratory, field, or industrial settings.
Key Features & Benefits:
-
Comprehensive LCR Measurement: Accurately measures Inductance (L), Capacitance (C), and Resistance (R), eliminating the need for multiple instruments.
-
Extensive Measurement Ranges:
-
Resistance: 0.2Ω ~ 2000MΩ (multiple ranges)
-
Inductance: 2.5mH ~ 25H (multiple ranges)
-
Capacitance (C1): 2.5nF ~ 250µF
-
Capacitance (C2): 10µF ~ 4000µF
-
-
Voltage Measurement: Also measures DC Voltage (0~500V) and AC Voltage (0~500V).
-
High Accuracy: Delivers reliable readings with 3.0% accuracy (4.0% for the highest resistance range).
-
Transistor Test Function: Includes an hFE terminal for testing transistors.
-
Rugged & Portable: The sturdy, simple design features dual insulation and safety sockets for user protection. Compact and lightweight at 400g.
-
Simple Operation: Features a single rotary switch for quick range selection, a 0 ADJ control for calibration, and a clear analog display.
