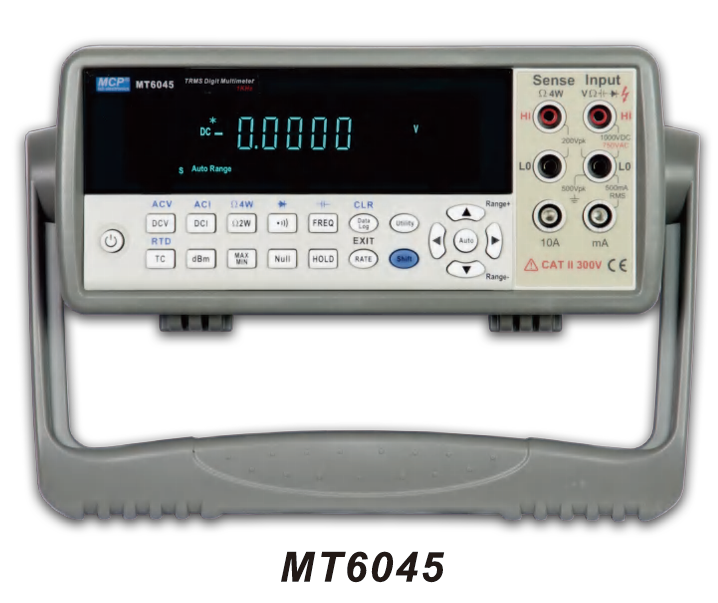

MT6045 BENCHTOP DIGITAL MULTIMETER
BDT 41,985/-
Product Details
Brand: MCP
Model: MT6045
Country Of Origin: China
Features:
4-1/2 digits display resolution, the highest reading value displayed is 55000 words.
The basic DC voltage accuracy is up to 0.025%.
AC voltage resolution up to 1uV.
Display refresh rate: 20 readings per second (fast) or 5 readings per second (slow).
Multifunction DCV, DCA and ACA, resistance, capacitance and frequency.
on-off, diode test, thermocouple and thermal resistance temperature measurement, maximum, minimum and average value (MAX/MIN/AVG).
2-wire or 4-wire measurement is used for resistance measurement, and 4-wire measurement can be used to eliminate the impact of lead resistance.
AC measurement is true RMS measurement (RMS) using automatic frequency compensation technology, with frequency up to 1kHz.
The reference impedance of 1~2400 Ω can be selected for decibel measurement.
Multimeter data recording with Max. 50000 measuring data.
USB, RS232 interface.
| Display: | 4-1/2 digits, 55000 counts |
| DCV Accuracy: | 0.025%+5 (typical) |
| ACV Accuracy: | 0.5%+30 (45Hz~400Hz) |
| DCA Accuracy: | 0.15%+10 (typical) |
| ACA Accuracy: | 0.7%+30 (45Hz~400Hz) |
| Resistance Accuracy: | 0.05%+5 (typical) |
| Capacitance Accuracy: | 5%+5 (typical) |
| Frequency Accuracy: | 0.02%+4 |
| Input Impedance: | 10MΩ, <100pF (V), >2.5GΩ (mV) |
| Power Source: | 220VAC±10%, 50/60Hz |
| Dimensions: | 245×220×82 mm |
| Weight: | 2kg |
The MCP MT6045 Benchtop Digital Multimeter is a high-precision, 4-1/2 digit instrument designed for advanced laboratory, industrial, and educational applications. It features a maximum display of 55000 counts and exceptional basic DC voltage accuracy of up to 0.025%. With AC voltage resolution up to 1µV, this meter delivers precise True RMS AC measurements using automatic frequency compensation technology (up to 1kHz). It offers a comprehensive range of functions including DCV, DCA, ACA, resistance (with 2-wire or 4-wire measurement to eliminate lead resistance), capacitance, frequency, duty cycle, diode test, and temperature measurement (thermocouple and thermal resistance). Additional features include Max/Min/Average value recording, decibel measurement with selectable reference impedance (1~2400Ω), data logging for up to 50,000 measurements, and USB/RS232 interfaces. The MT6045 has a fast display refresh rate (20 readings/second), measures 245 x 220 x 82 mm, and weighs 2kg.
MCP MT6045 Benchtop Digital Multimeter – 4-1/2 Digit, True RMS, USB/RS232, 55000 Counts
Achieve laboratory-grade precision and advanced data logging with the MCP MT6045, a professional benchtop digital multimeter designed for the most demanding electrical measurement and analysis tasks. Ideal for engineers, researchers, and technicians in laboratory, industrial, and educational environments, this instrument combines exceptional accuracy, extensive functionality, and PC connectivity.
Key Features & Benefits:
-
High Precision & Resolution: 4-1/2 digit display with 55000 counts and basic DCV accuracy up to 0.025%. AC voltage resolution up to 1µV.
-
Comprehensive Measurement Functions:
-
DC Voltage: 50mV ~ 1000V
-
AC Voltage (True RMS): 50mV ~ 750V
-
DC Current: 500µA ~ 10A
-
AC Current: 500µA ~ 10A
-
Resistance: 500Ω ~ 50MΩ (2-wire or 4-wire measurement)
-
Capacitance: 10nF ~ 100mF
-
Frequency: 10Hz ~ 100kHz
-
Duty Cycle: 0.1% ~ 99%
-
Temperature: -200℃ ~ 1372℃ (TC) / -200℃ ~ 800℃ (RTD/PT100)
-
-
True RMS AC Measurement: Automatic frequency compensation technology for accurate AC readings up to 1kHz.
-
4-Wire Resistance Measurement: Eliminates the impact of lead resistance for precise low-resistance measurements.
-
Data Logging & Connectivity: Records up to 50,000 measuring data points with USB and RS232 interfaces for PC control and analysis.
-
Advanced Features: Includes Max/Min/Average value recording, decibel measurement with selectable reference impedance (1~2400Ω), diode test, and continuity beeper.
-
Fast Display Refresh: Selectable 20 readings/second (fast) or 5 readings/second (slow).
-
Reliable Power: Operates on 220VAC±10%, 50/60Hz.
