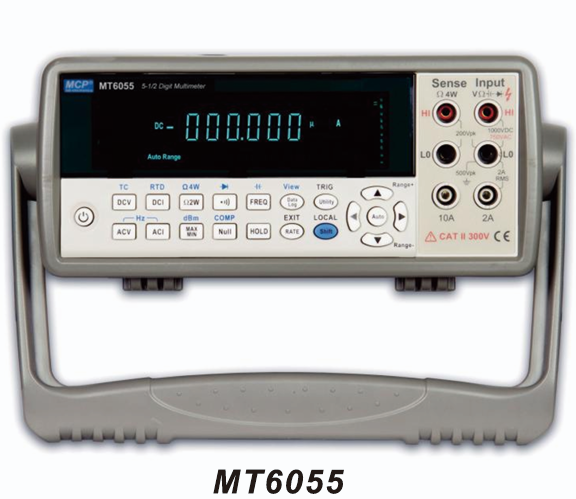

MT6055 BENCHTOP DIGITAL MULTIMETER
BDT 64,122/-
Product Details
Brand: MCP
Model: MT6055
Country Of Origin: China
Features:
5 1/2 digits display resolution with VFD screen.
2-wire and 4-wire resistance measurement.
Capacitance measurement up to 100mF.
Decibel measurement with selectable reference impedance from 1~2400Ω.
Measurement data hold, relative value measurement, maximum/minimum/average value measurement.
Selectable manual or auto range.
Measurement comparison function: preset limit range (upper/lower limit), judging3 whether the measurement is out of range according to the result, and audio alarm.
Trigger input and measurement completion output functions.
8 grades of thermocouple measurements: K, E, J, T, B, S, N, R, with manual RJ compensation.
Selectable temperature display units: °C or °F.
Remote operation via RS-232 interface, USB interface, and LAN interface.
Support SCPI programming language and multiple command sets.
Panel calibration technology: no need to open the case for calibration.
| Display: | 5 1/2 digits VFD |
| DCV Accuracy: | 0.012+0.004 (typical) |
| ACV Accuracy: | 0.2+0.08 (45Hz~100Hz) |
| DCA Accuracy: | 0.02+0.006 (typical) |
| ACA Accuracy: | 0.5+0.05 (45Hz~2kHz) |
| Resistance Accuracy: | 0.03+0.003 (typical) |
| Capacitance Accuracy: | 1+0.5 (typical) |
| Frequency Accuracy: | 0.01+0.003 (40~100kHz) |
| Input Impedance: | 10MΊ / 10GΊ |
| Power Source: | 250VÂą10% AC, 50/60Hz |
| Dimensions: | 260Ã110Ã315 mm |
| Weight: | 4kg |
The MCP MT6055 Benchtop Digital Multimeter is a flagship, high-precision instrument designed for the most demanding laboratory, industrial, and research applications. It features a 5 1/2 digit VFD display for superior resolution and clarity. This advanced multimeter offers a comprehensive suite of functions, including DCV (200mV~1000V), ACV (200mV~750V), DCA (200µA~10A), ACA (200µA~10A), Resistance (200Ω~100MΩ with 2-wire and 4-wire measurement), Capacitance (10nF~100mF), Frequency (3Hz~10MHz), Diode test, and Continuity. It also supports 8 grades of thermocouple measurements (K, E, J, T, B, S, N, R) and RTD (PT100/PT1000) with selectable °C or °F display. Key features include decibel measurement with selectable reference impedance (1~2400Ω), measurement comparison function with audio alarm, trigger input/output, data hold, relative value, and Max/Min/Average measurement. The MT6055 offers remote operation via RS-232, USB, and LAN interfaces, supports SCPI programming, and features panel calibration without opening the case. It measures 260 x 110 x 315 mm and weighs 4kg.
MCP MT6055 Benchtop Digital Multimeter – 5 1/2 Digit VFD, True RMS, LAN/USB/RS232
Experience the pinnacle of precision measurement with the MCP MT6055, a flagship benchtop digital multimeter designed for advanced laboratory, industrial, and research applications. Ideal for engineers, scientists, and metrologists, this instrument delivers exceptional accuracy, extensive functionality, and comprehensive connectivity.
Key Features & Benefits:
-
Ultra-High Precision & Resolution: 5 1/2 digit VFD display with DCV accuracy up to 0.012% and 1µV resolution.
-
Comprehensive Measurement Functions:
-
DC Voltage: 200mV ~ 1000V
-
AC Voltage (True RMS): 200mV ~ 750V (up to 100kHz)
-
DC Current: 200µA ~ 10A
-
AC Current: 200µA ~ 10A
-
Resistance: 200Ω ~ 100MΩ (2-wire and 4-wire)
-
Capacitance: 10nF ~ 100mF
-
Frequency: 3Hz ~ 10MHz
-
Temperature: 8 thermocouple types (K, E, J, T, B, S, N, R) and RTD (PT100/PT1000)
-
Diode & Continuity Test
-
-
Advanced Features: Decibel measurement (1~2400Ω reference), measurement comparison with audio alarm, trigger input/output, data hold, relative value, and Max/Min/Average.
-
Multi-Interface Connectivity: Remote operation via RS-232, USB, and LAN interfaces. Supports SCPI programming language and multiple command sets.
-
Panel Calibration Technology: Allows calibration without opening the case for easy maintenance.
-
Selectable Ranging: Manual or auto range operation.
-
Reliable Power: Operates on 250V±10% AC, 50Hz or 60Hz.
