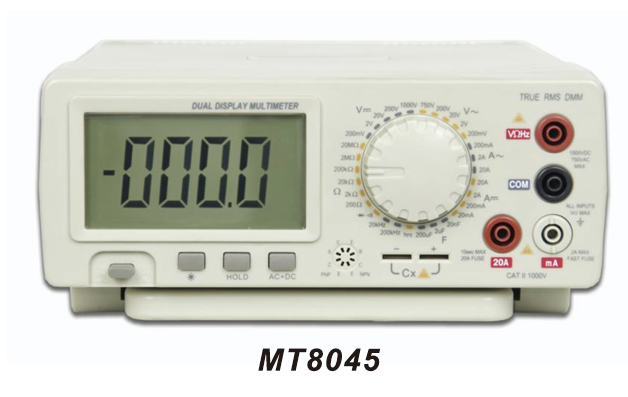

MT8045 BENCHTOP DIGITAL MULTIMETER
BDT 12,151/-
Product Details
Brand: MCP
Model: MT8045
Country Of Origin: China
Features:
4 1/2 digits LCD display with back light
Multi-functional ACV/DCV, ACA/DCA, R, C, Hz, hFE, diode test and continuity beeper test
High resolution of 10 μV, 10 μA, 10 mΩ, 1pF, 0.1Hz
0.05% DCV accuracy
20A high current range
1000V high voltage range
AC + DC true rms
Overload protection
| Display: | 4 1/2 digits LCD with backlight |
| DCV Accuracy: | ±(0.05%rdg+3digits) |
| ACV Accuracy: | ±(0.8%rdg+80digits) typical |
| DCA Accuracy: | ±(0.35%rdg+10digits) typical |
| ACA Accuracy: | ±(0.8%rdg+80digits) typical |
| Resistance Accuracy: | ±(0.1%rdg+20digits) typical |
| Capacitance Accuracy: | ±(3.5%rdg+20digits) typical |
| Frequency Accuracy: | ±(1.0%rdg+20digits) |
| Power Source: | 110~127VAC / 220~240VAC, 50/60Hz |
| Dimensions: | 260mm×220mm×82mm |
| Weight: | Approx. 1kg |
The MCP MT8045 Benchtop Digital Multimeter is a high-precision, multi-functional instrument designed for professional laboratory, industrial, and educational applications. It features a large 4 1/2 digit LCD display with backlight for clear readings. This True RMS multimeter offers an extensive range of measurement functions, including DC Voltage (200mV~1000V), AC Voltage (200mV~750V), DC Current (20mA~20A), AC Current (200mA~20A), Resistance (200Ω~20MΩ), Capacitance (20nF~200µF), Frequency (20kHz~200kHz), and hFE transistor testing (PNP/NPN). It also includes diode test and continuity beeper functions. With an exceptional 0.05% DCV accuracy and high resolution of 10µV, 10µA, 10mΩ, 1pF, and 0.1Hz, this benchtop meter is ideal for demanding measurement tasks. It features AC+DC true RMS capability, overload protection, NMRR >60dB, and CMRR >120dB. The MT8045 is powered by selectable AC mains (110~127VAC or 220~240VAC), measures 260 x 220 x 82 mm, and weighs approximately 1kg.
MCP MT8045 Benchtop Digital Multimeter – High Precision True RMS Lab Meter
Achieve laboratory-grade precision with the MCP MT8045, a professional benchtop digital multimeter designed for advanced electrical measurement and analysis. Ideal for engineers, researchers, and technicians working in laboratory, industrial, and educational environments, this instrument combines high accuracy with a comprehensive feature set.
Key Features & Benefits:
-
High Precision & Resolution: Features 0.05% DCV accuracy and high resolution of 10µV, 10µA, 10mΩ, 1pF, and 0.1Hz.
-
Comprehensive Measurement Functions:
-
DC Voltage: 200mV ~ 1000V
-
AC Voltage (AC or AC+DC True RMS): 200mV ~ 750V
-
DC Current: 20mA ~ 20A
-
AC Current: 200mA ~ 20A
-
Resistance: 200Ω ~ 20MΩ
-
Capacitance: 20nF ~ 200µF
-
Frequency: 20kHz ~ 200kHz
-
hFE Test: PNP/NPN (0~1000)
-
-
True RMS Measurement: Ensures accurate readings for AC signals, including AC+DC combined measurements.
-
Advanced Features: Includes diode test, continuity beeper (<5Ω), overload protection, and backlit display.
-
High Noise Rejection: NMRR >60dB and CMRR >120dB for stable readings in noisy environments.
-
Clear Display: 4 1/2 digit LCD with backlight for easy reading.
-
Reliable Power: Operates on selectable AC mains (110~127VAC or 220~240VAC, 50/60Hz).
