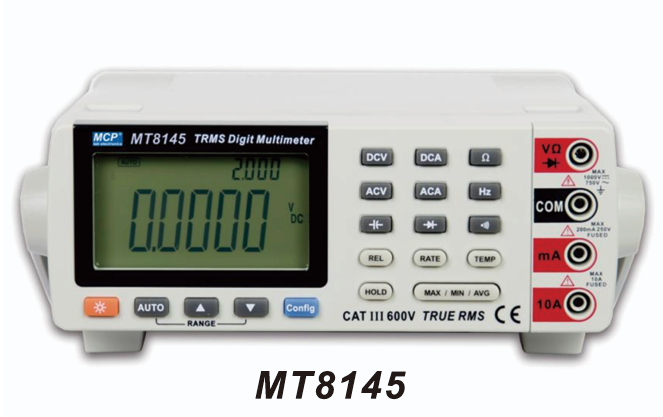

MT8145 BENCHTOP DIGITAL MULTIMETER
BDT 23,367/-
Product Details
Brand: MCP
Model: MT8145
Country Of Origin: China
Features:
5 digits Multi-meter with dual display.
Accurate true RMS AC value.
10uV sensitivity in volts DC.
Multi-function of ACV/DCV, ACA/DCA, R, C, Hz, diode test, temperature test and continuity beeper test.
Panel calibration function (without open-case adjustment).
Isolation of Universal Serial Bus (USB) Port.
Remote Control, display, record, Data Analysis with computer.
| Display: | 5 digits, dual display |
| DCV Accuracy: | 0.05%+4 |
| ACV Accuracy: | 0.5%+40 (typical) |
| DCA Accuracy: | 0.2%+10 (typical) |
| ACA Accuracy: | 0.8%+30 (typical) |
| Resistance Accuracy: | 0.2%+5 (typical) |
| Capacitance Accuracy: | 5%+5 (typical) |
| Frequency Accuracy: | 0.02%+4 |
| Input Impedance: | 10MΩ, >1000MΩ |
| Power Source: | 110V (115V) or 220V (230V) AC |
| Dimensions: | 243×97×252 mm |
| Weight: | 2kg |
The MCP MT8145 Benchtop Digital Multimeter is a high-precision, 5-digit dual-display instrument designed for advanced laboratory, industrial, and educational applications. It delivers accurate True RMS AC values and features exceptional 10µV sensitivity in DC volts. This multi-functional meter covers a comprehensive range of measurements including ACV/DCV, ACA/DCA, Resistance, Capacitance, Frequency, Diode test, Temperature test, and Continuity beeper. Key features include panel calibration without open-case adjustment, an isolated USB port for remote control and data analysis with a computer, and a clear dual display. With DCV accuracy up to 0.05% and a wide range of ranges (DCV up to 1000V, ACV up to 750V, DCA/ACA up to 10A, Resistance up to 60MΩ, Capacitance up to 1000µF, Frequency up to 10MHz, and Temperature from -200℃ to 1372℃), the MT8145 is a versatile powerhouse. It has an input impedance of 10MΩ (>1000MΩ for lower ranges), is powered by selectable AC mains (110V/220V), measures 243 x 97 x 252 mm, and weighs 2kg.
MCP MT8145 Benchtop Digital Multimeter – 5-Digit True RMS, USB, Dual Display Lab Meter
Achieve laboratory-grade precision and connectivity with the MCP MT8145, a professional benchtop digital multimeter designed for advanced electrical measurement, data logging, and analysis. Ideal for engineers, researchers, and technicians in laboratory, industrial, and educational environments, this instrument combines high accuracy, extensive functionality, and PC connectivity.
Key Features & Benefits:
-
High Precision & Dual Display: Features a 5-digit dual display with 10µV sensitivity in DC volts and accurate True RMS AC values.
-
Comprehensive Measurement Functions:
-
DC Voltage: 200mV ~ 1000V
-
AC Voltage (True RMS): 200mV ~ 750V
-
DC Current: 0.2mA ~ 10A
-
AC Current: 0.2mA ~ 10A
-
Resistance: 200Ω ~ 60MΩ
-
Capacitance: 10nF ~ 1000µF
-
Frequency: 10Hz ~ 10MHz
-
Temperature: -200℃ ~ 1372℃
-
Diode Test & Continuity Beeper
-
-
PC Connectivity & Remote Control: Features an isolated USB port for remote control, display, recording, and data analysis with a computer.
-
Panel Calibration: Allows calibration without opening the case for easy maintenance.
-
High Accuracy: DCV accuracy up to 0.05%, Resistance accuracy up to 0.2%, and Frequency accuracy of 0.02%+4.
-
Clear Display: 5-digit dual display for simultaneous reading of multiple parameters.
-
Reliable Power: Operates on selectable AC mains (110V/115V or 220V/230V).
