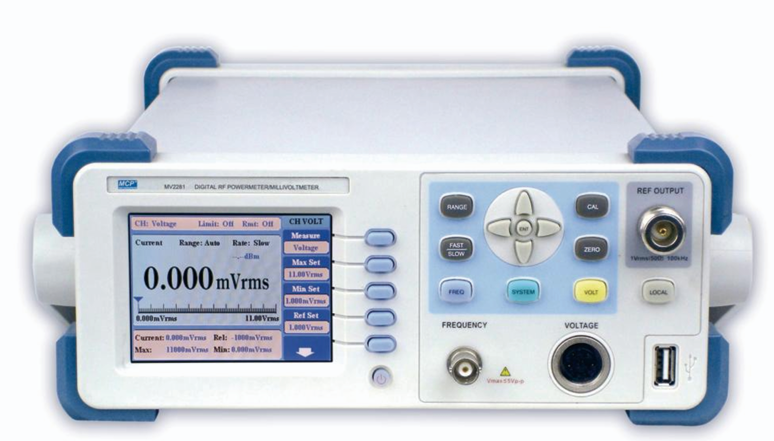

MV2281I DIGITAL RF VOLTAGE & POWER METER
BDT 257,164/-
Product Details
Brand: MCP
Model: MV2281I
Country Of Origin: China
Features
-
Frequency measurement up to 3GHz
-
Advanced MCU control for high accuracy and resolution
-
Compact design with plastic die-casting
-
SMT construction for reliability (MTBF >20,000h)
-
3.5" QVGA color LCD with soft keys
-
Optional frequency counter function
-
Interfaces: RS232, USB, optional GPIB
Technical Data
| Specification | MV2281 I | MV2281 II | MV2281 III |
|---|---|---|---|
| Frequency Range | 9kHz–1200MHz (RF probe) | 10kHz–2000MHz (2GHz coaxial detector) | 10kHz–3000MHz (3GHz coaxial detector) |
| Voltage Measurement Range | 1mVrms–10Vrms (50Ω load) | Same | Same |
| Voltage Range Type | Manual: 4mVrms/40mVrms/400mVrms/4Vrms/10Vrms; Automatic | Same | Same |
| Power Measurement Range | –47dBm–+33dBm (50Ω load, 0dBm=0.224Vrms) | Same | Same |
| Power Range Type | Manual: –40dBm/–20dBm/0dBm/20dBm/40dBm; Automatic | Same | Same |
| Coaxial Detector SWR | ≤1.03 (10kHz–200MHz); ≤1.04 (200kHz–500MHz); ≤1.15 (500MHz–1000MHz); ≤1.25 (1000–1600MHz); ≤1.35 (1600–2000MHz); ≤1.40 (2000–3000MHz) | Same | Same |
| Frequency Counter (Option) | Range: 10kHz–3GHz; Min Input: 50mVrms; Max Input: 5Vrms; Impedance: 500kΩ/30pF or 50Ω; Resolution: 5 digits (100ms gate), 6 digits (1s gate); Time Base Stability: ≤1×10⁻⁶/day | Same | Same |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz | Same | Same |
| Dimensions | 255×170×370mm | Same | Same |
| Weight | 3.5kg | Same | Same |
| Frequency Range | 9kHz–1200MHz (RF probe) |
| Voltage Measurement Range | 1mVrms–10Vrms (50Ω load) |
| Voltage Range Type | Manual: 4mVrms/40mVrms/400mVrms/4Vrms/10Vrms; Automatic |
| Power Measurement Range | –47dBm–+33dBm (50Ω load, 0dBm=0.224Vrms) |
| Power Range Type | Manual: –40dBm/–20dBm/0dBm/20dBm/40dBm; Automatic |
| Coaxial Detector SWR | ≤1.03 (10kHz–200MHz); ≤1.04 (200kHz–500MHz); ≤1.15 (500MHz–1000MHz); ≤1.25 (1000–1600MHz); ≤1.35 (1600–2000MHz); ≤1.40 (2000–3000MHz) |
| Frequency Counter (Option) | Range: 10kHz–3GHz; Min Input: 50mVrms; Max Input: 5Vrms; Impedance: 500kΩ/30pF or 50Ω; Resolution: 5 digits (100ms gate), 6 digits (1s gate); Time Base Stability: ≤1×10⁻⁶/day |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions | 255×170×370mm |
| Weight | 3.5kg |
Features
-
Frequency measurement up to 3GHz
-
Advanced MCU control for high accuracy and resolution
-
Compact design with plastic die-casting
-
SMT construction for reliability (MTBF >20,000h)
-
3.5" QVGA color LCD with soft keys
-
Optional frequency counter function
-
Interfaces: RS232, USB, optional GPIB
Technical Data
| Specification | MV2281 I | MV2281 II | MV2281 III |
|---|---|---|---|
| Frequency Range | 9kHz–1200MHz (RF probe) | 10kHz–2000MHz (2GHz coaxial detector) | 10kHz–3000MHz (3GHz coaxial detector) |
| Voltage Measurement Range | 1mVrms–10Vrms (50Ω load) | Same | Same |
| Voltage Range Type | Manual: 4mVrms/40mVrms/400mVrms/4Vrms/10Vrms; Automatic | Same | Same |
| Power Measurement Range | –47dBm–+33dBm (50Ω load, 0dBm=0.224Vrms) | Same | Same |
| Power Range Type | Manual: –40dBm/–20dBm/0dBm/20dBm/40dBm; Automatic | Same | Same |
| Coaxial Detector SWR | ≤1.03 (10kHz–200MHz); ≤1.04 (200kHz–500MHz); ≤1.15 (500MHz–1000MHz); ≤1.25 (1000–1600MHz); ≤1.35 (1600–2000MHz); ≤1.40 (2000–3000MHz) | Same | Same |
| Frequency Counter (Option) | Range: 10kHz–3GHz; Min Input: 50mVrms; Max Input: 5Vrms; Impedance: 500kΩ/30pF or 50Ω; Resolution: 5 digits (100ms gate), 6 digits (1s gate); Time Base Stability: ≤1×10⁻⁶/day | Same | Same |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz | Same | Same |
| Dimensions | 255×170×370mm | Same | Same |
| Weight | 3.5kg | Same | Same |
The MV2281 Series Digital RF Voltage & Power Meters provide precise measurement of RF signals up to 3GHz. With ranges from 1mVrms to 10Vrms and –47dBm to +33dBm, these instruments deliver high accuracy and resolution for voltage and power analysis. Featuring optional frequency counter capability, advanced MCU control, and a stable time base, the MV2281 Series ensures reliable performance in RF testing, communication systems, and laboratory environments. Compact and durable, they include USB, RS232, and optional GPIB connectivity.
