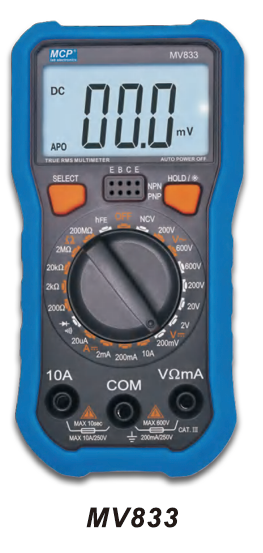

MV833 PORTABLE DIGITAL MULTIMETER
BDT 1,617/-
Product Details
Brand: MCP
Model: MV833
Country Of Origin: China
Features:
3 1/2 digit display
True RMS, Non-contact voltage detect (NCV) function
Backlight display, diode test, hFE test
Strong antimagnetic and anti-interferential performance, full function protection
Auto power off when there is no measurement in 15 minutes
Unit symbol display, easy to read, data hold
Large LCD display makes reading clear
New type holster, streamlined design, comfortable handle
| Display: | 3 1/2 digit LCD (Max. 2000 counts) |
| DCV Accuracy: | ±(0.5% +4) |
| ACV Accuracy: | ±(1.0% +6) |
| DCA Accuracy: | ±(1.0% +5) |
| Resistance Accuracy: | ±(0.8% +1) |
| Input Impedance: | 10MΩ |
| Sampling Rate: | 3 times/s |
| AC Frequency Response: | 40Hz-400Hz |
| Battery: | 3V, AAA X 2 |
| Meter Size: | 140 mm×72 mm×37 mm |
| Weight: | 195g (including battery) |
| Standard Accessories: | Test leads, battery, manual |
The MCP MV833 Portable Digital Multimeter is a compact, versatile, and feature-rich testing instrument designed for professional and DIY electrical diagnostics. It features a clear 3 1/2 digit LCD display (max. 2000 counts) with a backlight for easy reading in low-light conditions. This True RMS multimeter offers a wide range of measurement functions, including DC Voltage (200mV~600V), AC Voltage (200V~600V), DC Current (20µA~10A), and Resistance (200Ω~200MΩ). It also includes specialized functions such as Non-Contact Voltage (NCV) detection, diode test, hFE transistor test, continuity alarm, and data hold. Built for durability, it features strong antimagnetic and anti-interferential performance, full function protection, and a new type holster with a streamlined, comfortable handle. The meter includes an auto power-off function (after 15 minutes of inactivity) and a low battery indicator. It is powered by two AAA batteries and comes complete with test leads, battery, and manual.
MCP MV833 Portable Digital Multimeter – True RMS, NCV, Backlight, 3 1/2 Digit Display
Test and troubleshoot with confidence using the MCP MV833, a professional-grade portable digital multimeter designed for accuracy, safety, and convenience. Ideal for electricians, engineers, and DIY enthusiasts, this compact instrument delivers reliable readings for a wide range of electrical parameters.
Key Features & Benefits:
-
True RMS Measurement: Ensures accurate readings for both AC and DC signals, even with non-sinusoidal waveforms.
-
Comprehensive Measurement Functions:
-
DC Voltage: 200mV / 2V / 20V / 200V / 600V
-
AC Voltage: 200V / 600V
-
DC Current: 20µA / 2mA / 200mA / 10A
-
Resistance: 200Ω / 2kΩ / 20kΩ / 2MΩ / 200MΩ
-
-
Non-Contact Voltage (NCV) Detection: Safely detects live voltage without direct contact.
-
Special Functions: Includes diode test, hFE transistor test (0~2000), continuity alarm, and data hold.
-
Clear Display: Large 3 1/2 digit LCD (61x28mm) with backlight for easy reading in any lighting.
-
Durable & Ergonomic: Features a new type holster with a streamlined design and comfortable handle, plus strong antimagnetic and anti-interferential performance.
-
Smart Power Management: Auto power-off after 15 minutes of inactivity and low battery indicator (below 2.4V).
-
Full Function Protection: Built-in safety features for reliable operation.
