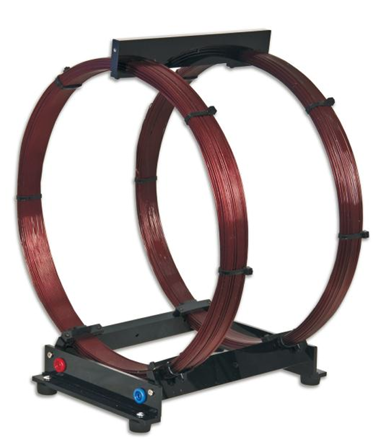

P338001 Helmholtz pair of coils
BDT 30,266/-
Product Details
Brand: MCP
Model: P338001
Country Of Origin: China
BASIC FINE BEAM TUBE SYSTEM
SYSTEM COMPOSITION
1 pc fine beam tube
1 pc fine beam tube base+ Helmholtz pair of coils
Ipc DC power supply
Ipc DC power supply
Ipc DC power supply
| Number of turns: | 124 each |
| Maximum field: | 3.8 mT |
| Coil diameter: | 300 mm |
| Rated current: | 5 A |
| Effective resistance: | 1.2 Ω (2.4 Ω in series) |
| Terminals: | 4 mm safety sockets |
| Weight: | 4 kg |
The P338001 Helmholtz Pair of Coils is a specialized teaching and research instrument for physics laboratories. Designed to generate a uniform magnetic field, it consists of two identical coils with 124 turns each, mounted in parallel. Operating at 5 A, the coils produce a maximum field strength of 3.8 mT, making them suitable for experiments involving electron beams, charge‑to‑mass ratio measurements, and fundamental studies in electromagnetism. Compact and durable, with 4 mm safety socket terminals, the P338001 is widely used in schools, vocational colleges, and research labs as an essential tool for studying magnetic field interactions.
The P338001 Helmholtz Pair of Coils is a precision instrument designed to generate a uniform magnetic field for physics experiments. With 124 turns per coil and a diameter of 300 mm, it produces a maximum field strength of 3.8 mT at 5 A. Featuring 4 mm safety socket terminals and robust construction, the P338001 is ideal for schools, universities, and research labs conducting experiments in electromagnetism, electron beam studies, and charge‑to‑mass ratio demonstrations.
