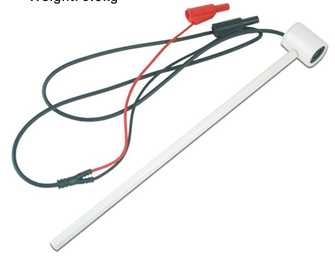

P416000 Ultrasonic Transducer 40 kHz
BDT 4,973/-
Product Details
Brand: MCP
Model: P416000
Country Of Origin: China
Features
-
Piezoelectric air ultrasonic transducer
-
Suitable for experiments in geometric and wave‑mechanical acoustics
-
Functions as both transmitter and receiver
-
Mounted in housing on stand rod with coaxial connection cable
| Resonance frequency: | 40 kHz |
| Bandwidth: | approx. 6 kHz |
| Capacitance: | 2000 pF |
| Connection: | 1 m coaxial cable with 4 mm sockets |
| Housing dimensions: | 48 mm × 27 mm diameter |
| Stand rod: | 200 mm × 10 mm diameter |
The P416000 Ultrasonic Transducer (40 kHz) is a specialized teaching and research instrument for acoustics and wave‑mechanical experiments. Built with piezoelectric technology, it operates at 40 kHz resonance frequency with a 6 kHz bandwidth. The transducer functions as both a transmitter and receiver, enabling versatile experimental setups. Supplied with a 1 m coaxial cable and mounted on a stand rod, it ensures stable and reliable operation. Compact and durable, the P416000 is widely used in schools, vocational colleges, and research labs as an essential tool for studying ultrasonic waves, reflection, and sound propagation.
The P416000 Ultrasonic Transducer (40 kHz) is a precision piezoelectric device designed for acoustics experiments. Operating at a resonance frequency of 40 kHz, it can be used as both a transmitter and receiver, making it versatile for wave‑mechanical and geometric acoustics studies. Compact and easy to mount, the P416000 is ideal for schools, universities, and research labs conducting ultrasonic experiments and sound wave demonstrations.
