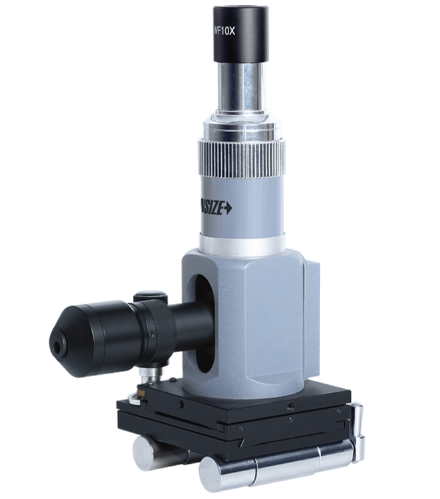

Portable Metallurgical Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: 5109-PM500
Country Of Origin: China
Features:
Illumination is powered by batteries
Aperture diaphragm improves image quality and increases depth of field
Magnetic base with on/off switch can adhere on metal workpieces
Can be connected to digital cameras
| Magnification: | 100X~500X |
| Eyepiece: | 10X/12.5X (Wide field) |
| Objectives: | 10X, 40X (Plan achromatic) |
| Illumination: | 3W LED, battery-powered |
| Dimensions: | 210Ã160Ã95mm |
| Net Weight: | 1.5kg |
The INSIZE 5109-PM500 Portable Metallurgical Microscope is a highly versatile, battery-powered optical instrument designed for on-site inspection of large or immovable metal components. Weighing only 1.5kg, it features a unique magnetic base with an on/off switch, allowing the microscope to be securely attached directly to ferrous metal workpieces in any orientation, whether on the factory floor or in the field.
Equipped with 10X and 40X plan achromatic objectives and wide-field 10X/12.5X eyepieces, it delivers a magnification range of 100X to 500X. The 3W LED illumination is powered by three standard AAA batteries, eliminating the need for external power cords. An adjustable aperture diaphragm enhances image quality and depth of field, while the built-in X-Y double-layer stage (15x12mm) allows for precise sample scanning. It can also be connected to optional digital cameras and analysis software, making it a complete, highly mobile solution for metallurgical analysis, failure investigation, and quality control.
INSIZE 5109-PM500 Portable Metallurgical Microscope – On-Site Magnetic Inspection
Perform accurate metallurgical inspections anywhere with the INSIZE 5109-PM500 Portable Metallurgical Microscope. Designed for field engineers, maintenance technicians, and quality control professionals, this compact, battery-operated instrument is the ultimate solution for examining the microstructure of large, heavy, or immovable metal components directly on the shop floor.
Key Features & Benefits:
-
Magnetic Base Technology: Features a unique magnetic base with an on/off switch, allowing the microscope to securely adhere to ferrous metal workpieces in any orientation. This makes it incredibly easy to inspect the side or underside of large machinery.
-
Cordless Operation: The 3W LED illumination is powered by three standard AAA batteries, freeing you from power outlets and allowing for true on-site mobility.
-
High-Quality Optics: Equipped with 10X and 40X plan achromatic objectives and wide-field eyepieces, providing a magnification range of 100X to 500X. The adjustable aperture diaphragm enhances contrast and increases the depth of field.
-
Built-in X-Y Stage: Despite its compact size, it features a double-layer mechanical stage (15×12mm) with moving knobs for precise sample scanning.
-
Digital Documentation: The microscope can be easily connected to an optional digital camera and analysis software (available separately) for high-resolution image capture and porosity measurement.
