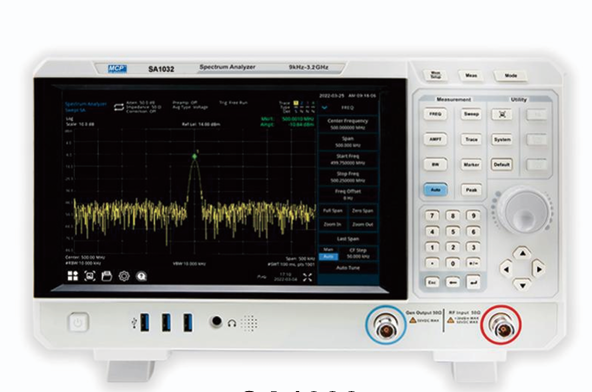

SA1032 SPECTRUM ANALYZER
BDT 465,654/-
Product Details
Brand: MCP
Model: SA1032
Country Of Origin: China
Features
-
Frequency measurement range up to 3.2GHz
-
Displayed average noise level (DANL) as low as –161dBm/Hz (typical)
-
Phase noise < –98dBc/Hz (10kHz offset, typical)
-
Full amplitude accuracy <0.7dB
-
Up to 10,001 scanning points
-
Minimum resolution bandwidth (RBW): 1Hz
-
Optional advanced one-key measurement functions
-
EMI pre-compliance analysis (optional)
-
Analog and digital demodulation analysis (optional)
-
10.1-inch 1280×800 HD capacitive touchscreen
-
USB/LAN interface with SCPI protocol supportFrequency Range 9kHz–3.2GHz
Frequency Resolution 1Hz
Internal Reference 10MHz
Sweep Time 1µs–4000s
RBW Range 1Hz–1MHz (1–3–10 steps)
VBW Range 1Hz–1MHz (1–3–10 steps)
Amplitude Range DANL to +30dBm
Reference Level –100dBm to +30dBm (1dB steps)
Preamp Gain 20dB (9kHz–3.2GHz)
Input Attenuator 0–51dB (1dB steps)
Detector Types Sample, Peak, Negative, Normal, Average
Trace Types Clear/Write, Average, Max Hold, Min Hold
Frequency Response (Preamp Off) ±1.3dB (10MHz–3.2GHz)
Frequency Response (Preamp On) ±1.5dB (10MHz–3.2GHz)
Absolute Amplitude Accuracy ±0.5dB (Preamp On)
VSWR –164dBm/Hz
Phase Noise –100dBc/Hz (100kHz offset)
Tracking Source (D Models) 100kHz–3.2GHz
Display 10.1" capacitive touchscreen, 1280×800 resolution
Interfaces RF Input, Trace Output, 10MHz Ref In/Out, EXT Trigger, HDMI, USB Host/Device, LAN
Power Supply 100–240VAC ±10%, 50/60Hz
Dimensions 378×218×120mm
Weight 4.55kg
| Frequency Range | 9kHz–3.2GHz |
| Frequency Resolution | 1Hz |
| Internal Reference | 10MHz |
| Sweep Time | 1µs–4000s |
| RBW Range | 1Hz–1MHz (1–3–10 steps) |
| VBW Range | 1Hz–1MHz (1–3–10 steps) |
| Amplitude Range | DANL to +30dBm |
| Reference Level | –100dBm to +30dBm (1dB steps) |
| Preamp Gain | 20dB (9kHz–3.2GHz) |
| Input Attenuator | 0–51dB (1dB steps) |
| Detector Types | Sample, Peak, Negative, Normal, Average |
| Trace Types | Clear/Write, Average, Max Hold, Min Hold |
| Frequency Response | (Preamp Off) ±1.3dB (10MHz–3.2GHz) |
| Frequency Response | (Preamp On) ±1.5dB (10MHz–3.2GHz) |
| Absolute Amplitude Accuracy | ±0.5dB (Preamp On) |
| VSWR | –164dBm/Hz |
| Phase Noise | –100dBc/Hz (100kHz offset) |
| Tracking Source | (D Models) 100kHz–3.2GHz |
| Display | 10.1" capacitive touchscreen, 1280×800 resolution |
| Interfaces | RF Input, Trace Output, 10MHz Ref In/Out, EXT Trigger, HDMI, USB Host/Device, LAN |
| Power Supply | 100–240VAC ±10%, 50/60Hz |
| Dimensions | 378×218×120mm |
| Weight | 4.55kg |
Features
-
Frequency measurement range up to 3.2GHz
-
Displayed average noise level (DANL) as low as –161dBm/Hz (typical)
-
Phase noise < –98dBc/Hz (10kHz offset, typical)
-
Full amplitude accuracy <0.7dB
-
Up to 10,001 scanning points
-
Minimum resolution bandwidth (RBW): 1Hz
-
Optional advanced one-key measurement functions
-
EMI pre-compliance analysis (optional)
-
Analog and digital demodulation analysis (optional)
-
10.1-inch 1280×800 HD capacitive touchscreen
-
USB/LAN interface with SCPI protocol support
Frequency Range 9kHz–3.2GHz
Frequency Resolution 1Hz
Internal Reference 10MHz
Sweep Time 1µs–4000s
RBW Range 1Hz–1MHz (1–3–10 steps)
VBW Range 1Hz–1MHz (1–3–10 steps)
Amplitude Range DANL to +30dBm
Reference Level –100dBm to +30dBm (1dB steps)
Preamp Gain 20dB (9kHz–3.2GHz)
Input Attenuator 0–51dB (1dB steps)
Detector Types Sample, Peak, Negative, Normal, Average
Trace Types Clear/Write, Average, Max Hold, Min Hold
Frequency Response (Preamp Off) ±1.3dB (10MHz–3.2GHz)
Frequency Response (Preamp On) ±1.5dB (10MHz–3.2GHz)
Absolute Amplitude Accuracy ±0.5dB (Preamp On)
VSWR –164dBm/Hz
Phase Noise –100dBc/Hz (100kHz offset)
Tracking Source (D Models) 100kHz–3.2GHz
Display 10.1" capacitive touchscreen, 1280×800 resolution
Interfaces RF Input, Trace Output, 10MHz Ref In/Out, EXT Trigger, HDMI, USB Host/Device, LAN
Power Supply 100–240VAC ±10%, 50/60Hz
Dimensions 378×218×120mm
Weight 4.55kg
The SA1000 Series Spectrum Analyzers deliver high-performance signal analysis for RF and microwave applications. With frequency ranges up to 3.2GHz, ultra-low noise floors (–161dBm/Hz typical), and phase noise below –98dBc/Hz, these analyzers provide precise measurement capability for communication, EMI testing, and signal integrity analysis. Featuring a 10.1-inch HD touchscreen, 1Hz RBW, and optional tracking generator, the SA1000 Series combines advanced functionality with intuitive operation. Ideal for laboratories, production lines, and educational environments requiring accurate RF spectrum visualization.
