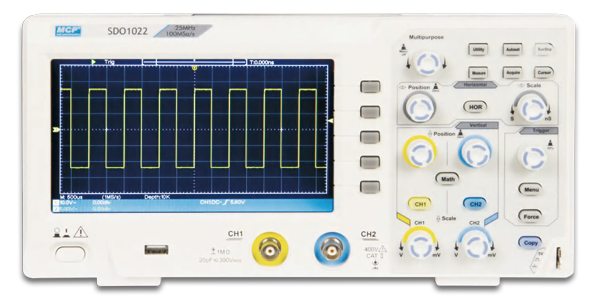

SDO1022 DIGITAL STORAGE OSCILLOSCOPE
BDT 28,714/-
Product Details
Brand: MCP
Model: SDO1022
Country Of Origin: China
Features
-
Bandwidth: 25MHz (SDO1022) and 100MHz (SDO1102)
-
Sample rate: 100MS/s – 1GS/s
-
Dual-channel configuration
-
Ultra-thin body design
-
7-inch high-resolution LCD display (800×480 pixels)
-
SCPI and LabVIEW supported
Technical Data
| Specification | SDO1022 | SDO1102 |
|---|---|---|
| Channels | 2 | 2 |
| Bandwidth | 25MHz | 100MHz |
| Sample Rate | 100MS/s | 1GS/s |
| Rise Time | 17.5ns | 3.5ns |
| Input Impedance | 1MΩ ±2%, 20pF ±5pF | 1MΩ ±2%, 20pF ±5pF |
| Channel Isolation | 50Hz: 100:1 / 10MHz: 40:1 | 50Hz: 100:1 / 10MHz: 40:1 |
| Max Input Voltage | 400V (DC+AC, PK-PK) | 400V (DC+AC, PK-PK) |
| DC Gain Accuracy | ±3% | ±3% |
| Record Length | 10K | 10K |
| Vertical Resolution | 8 bits (2 channels simultaneously) | 8 bits (2 channels simultaneously) |
| Vertical Sensitivity | 5mV/div – 5V/div | 5mV/div – 5V/div |
| Input Coupling | DC, AC, GND | DC, AC, GND |
| Trigger Type | Edge, Video | Edge, Video |
| Trigger Mode | Auto, Normal, Single | Auto, Normal, Single |
| Video Standards | NTSC, PAL, SECAM | NTSC, PAL, SECAM |
| Cursor Measurement | ΔV, ΔT | ΔV, ΔT |
| Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Preshoot, Rise/Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B↑, Delay A→B↓, Area, Cycle Area | Same |
| Waveform Math | +, –, ×, ÷, invert, FFT | +, –, ×, ÷, invert, FFT |
| Waveform Storage | 16 waveforms | 16 waveforms |
| Lissajous Figure | Full bandwidth | Full bandwidth |
| Phase Difference | ±3° | ±3° |
| Communication Interface | USB Host & Device | USB Host & Device |
| Frequency Counter | Available | Available |
| Power Supply | 100–240VAC, 50/60Hz, CAT II | 100–240VAC, 50/60Hz, CAT II |
| Power Consumption | <15W | <15W |
| Fuse | 2A, T class, 250V | 2A, T class, 250V |
| Dimensions (W×H×D) | 301×152×70mm | 301×152×70mm |
| Weight | 1.10kg | 1.10kg |
| Channels: | 2 |
| Bandwidth: | 25MHz |
| Sample Rate : | 100MS/s |
| Rise Time: | 17.5ns |
| Input Impedance: | 1MΩ ±2%, 20pF ±5pF |
| Channel Isolation: | 50Hz: 100:1 / 10MHz: 40:1 |
| Max Input Voltage: | 400V (DC+AC, PK-PK) |
| DC Gain Accuracy : | ±3% |
| Record Length: | 10K |
| Vertical Resolution: | 8 bits (2 channels simultaneously) |
| Vertical Sensitivity: | 5mV/div – 5V/div |
| Input Coupling: | DC, AC, GND |
| Trigger Type : | Edge, Video |
| Trigger Mode: | Auto, Normal, Single |
| Video Standards: | NTSC, PAL, SECAM |
| Cursor Measurement: | ΔV, ΔT |
| Automatic Measurement: | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Preshoot, Rise/Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B↑, Delay A→B↓, Area, Cycle Area |
| Waveform Math: | +, –, ×, ÷, invert, FFT |
| Waveform Storage: | 16 waveforms |
| Lissajous Figure: | Full bandwidth |
| Phase Difference: | ±3° |
| Communication Interface: | USB Host & Device |
| Frequency Counter: | Available |
| Power Supply: | 100–240VAC, 50/60Hz, CAT II |
| Power Consumption: | <15W |
| Fuse: | 2A, T class, 250V |
| Dimensions (W×H×D): | 301×152×70mm |
| Weight: | 1.10kg |
Features
-
Bandwidth: 25MHz (SDO1022) and 100MHz (SDO1102)
-
Sample rate: 100MS/s – 1GS/s
-
Dual-channel configuration
-
Ultra-thin body design
-
7-inch high-resolution LCD display (800×480 pixels)
-
SCPI and LabVIEW supported
Technical Data
| Specification | SDO1022 | SDO1102 |
|---|---|---|
| Channels | 2 | 2 |
| Bandwidth | 25MHz | 100MHz |
| Sample Rate | 100MS/s | 1GS/s |
| Rise Time | 17.5ns | 3.5ns |
| Input Impedance | 1MΩ ±2%, 20pF ±5pF | 1MΩ ±2%, 20pF ±5pF |
| Channel Isolation | 50Hz: 100:1 / 10MHz: 40:1 | 50Hz: 100:1 / 10MHz: 40:1 |
| Max Input Voltage | 400V (DC+AC, PK-PK) | 400V (DC+AC, PK-PK) |
| DC Gain Accuracy | ±3% | ±3% |
| Record Length | 10K | 10K |
| Vertical Resolution | 8 bits (2 channels simultaneously) | 8 bits (2 channels simultaneously) |
| Vertical Sensitivity | 5mV/div – 5V/div | 5mV/div – 5V/div |
| Input Coupling | DC, AC, GND | DC, AC, GND |
| Trigger Type | Edge, Video | Edge, Video |
| Trigger Mode | Auto, Normal, Single | Auto, Normal, Single |
| Video Standards | NTSC, PAL, SECAM | NTSC, PAL, SECAM |
| Cursor Measurement | ΔV, ΔT | ΔV, ΔT |
| Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Preshoot, Rise/Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B↑, Delay A→B↓, Area, Cycle Area | Same |
| Waveform Math | +, –, ×, ÷, invert, FFT | +, –, ×, ÷, invert, FFT |
| Waveform Storage | 16 waveforms | 16 waveforms |
| Lissajous Figure | Full bandwidth | Full bandwidth |
| Phase Difference | ±3° | ±3° |
| Communication Interface | USB Host & Device | USB Host & Device |
| Frequency Counter | Available | Available |
| Power Supply | 100–240VAC, 50/60Hz, CAT II | 100–240VAC, 50/60Hz, CAT II |
| Power Consumption | <15W | <15W |
| Fuse | 2A, T class, 250V | 2A, T class, 250V |
| Dimensions (W×H×D) | 301×152×70mm | 301×152×70mm |
| Weight | 1.10kg | 1.10kg |
The MCP Instruments SDO1000 Series digital oscilloscopes combine compact design with powerful measurement capabilities. The SDO1022 offers 25MHz bandwidth and 100MS/s sampling, while the SDO1102 delivers 100MHz bandwidth and 1GS/s sampling for high-speed signal analysis. Both models feature dual channels, 8-bit resolution, and a bright 7-inch LCD display. With advanced math functions, FFT analysis, and USB connectivity supporting SCPI and LabVIEW, these oscilloscopes are ideal for electronics labs, R&D, and educational environments requiring reliable waveform visualization and precise measurement.
