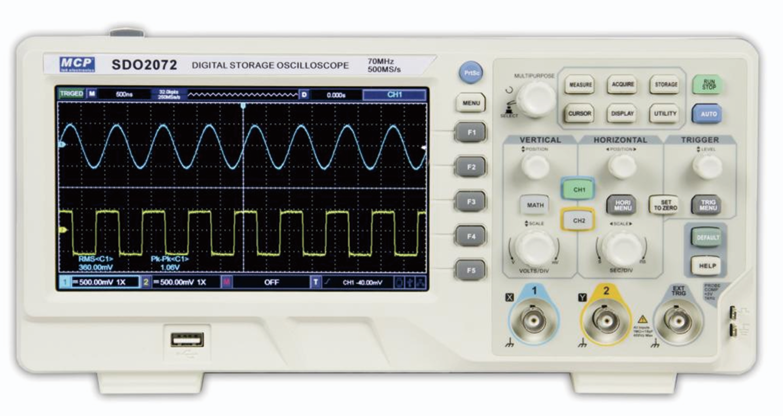

SDO2072 DIGITAL STORAGE OSCILLOSCOPE
BDT 37,787/-
Product Details
Brand: MCP
Model: SDO2072
Country Of Origin: China
Features
-
Bandwidth options: 70MHz, 100MHz, 200MHz
-

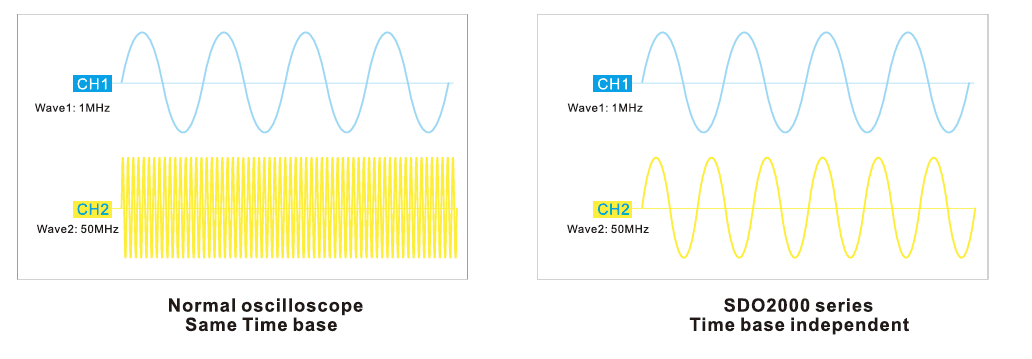

Independent double time base
-
AUTO strategy presettable
-
Lissajous figure supported
-
Automatic measurement of 34 waveform parameters
-
Automatic cursor tracking measurement
-
2 channels, low noise floor, wide vertical range (1mV/div–20V/div)
-
Built-in FFT and digital filter
-
System software upgrade via USB drive
-
7-inch TFT LCD, 800×480 resolution
-
Window extension function for detailed waveform analysis
-
USB storage device support, PC communication and remote control via USB
Technical Data (Highlights)
| Specification | SDO2072 | SDO2102X | SDO2202X |
|---|---|---|---|
| Real-time Sample Rate | 500MS/s | 1GS/s | 1GS/s |
| Equivalent Sampling Rate | 50GS/s | 50GS/s | 50GS/s |
| Rise Time (Typical) | ≤7ns | ≤3.5ns | ≤1.8ns |
| Bandwidth | 70MHz | 100MHz | 200MHz |
| Channels | 2 | 2 | 2 |
| ADC Resolution | 8 bits | 8 bits | 8 bits |
| Vertical Range | 1mV/div–20V/div | 1mV/div–20V/div | 1mV/div–20V/div |
| Input Impedance | 1MΩ ±2% // 18pF ±3pF | Same | Same |
| Max Input Voltage | 300Vrms, transient 1000Vpk | Same | Same |
| Record Length | 2×512k sampling points | Same | Same |
| Storage Depth | 64kpts (single), 32kpts (dual) | Same | Same |
| Waveform Capture Rate | 5,000 wfms/s | Same | Same |
| DC Gain Accuracy | ≤±3% (5mV–20V/div), ≤±4% (1–2mV/div) | Same | Same |
| Display | 7" TFT LCD, 800×480 | Same | Same |
| Interface | USB Host, USB Device, EXT Trig, Pass/Fail; LAN optional | Same | Same |
| Dimensions | 306×138×124mm | Same | Same |
| Weight | 2.5kg | Same | Same |
| Real-time Sample Rate | 500MS/s |
| Equivalent Sampling Rate | 50GS/s |
| Rise Time (Typical) | ≤7ns |
| Bandwidth | 70MHz |
| Channels | 2 |
| ADC Resolution | 8 bits |
| Vertical Range | 1mV/div–20V/div |
| Input Impedance | 1MΩ ±2% // 18pF ±3pF |
| Max Input Voltage | 300Vrms, transient 1000Vpk |
| Record Length | 2×512k sampling points |
| Storage Depth | 64kpts (single), 32kpts (dual) |
| Waveform Capture Rate | 5,000 wfms/s |
| DC Gain Accuracy ≤ | ±3% (5mV–20V/div), ≤±4% (1–2mV/div) |
| Display | 7" TFT LCD, 800×480 |
| Interface | USB Host, USB Device, EXT Trig, Pass/Fail; LAN optional |
| Dimensions | 306×138×124mm |
| Weight | 2.5kg |
Features
-
Bandwidth options: 70MHz, 100MHz, 200MHz
-
Independent double time base
-
AUTO strategy presettable
-
Lissajous figure supported
-
Automatic measurement of 34 waveform parameters
-
Automatic cursor tracking measurement
-
2 channels, low noise floor, wide vertical range (1mV/div–20V/div)
-
Built-in FFT and digital filter
-
System software upgrade via USB drive
-
7-inch TFT LCD, 800×480 resolution
-
Window extension function for detailed waveform analysis
-
USB storage device support, PC communication and remote control via USB
Technical Data (Highlights)
| Specification | SDO2072 | SDO2102X | SDO2202X |
|---|---|---|---|
| Real-time Sample Rate | 500MS/s | 1GS/s | 1GS/s |
| Equivalent Sampling Rate | 50GS/s | 50GS/s | 50GS/s |
| Rise Time (Typical) | ≤7ns | ≤3.5ns | ≤1.8ns |
| Bandwidth | 70MHz | 100MHz | 200MHz |
| Channels | 2 | 2 | 2 |
| ADC Resolution | 8 bits | 8 bits | 8 bits |
| Vertical Range | 1mV/div–20V/div | 1mV/div–20V/div | 1mV/div–20V/div |
| Input Impedance | 1MΩ ±2% // 18pF ±3pF | Same | Same |
| Max Input Voltage | 300Vrms, transient 1000Vpk | Same | Same |
| Record Length | 2×512k sampling points | Same | Same |
| Storage Depth | 64kpts (single), 32kpts (dual) | Same | Same |
| Waveform Capture Rate | 5,000 wfms/s | Same | Same |
| DC Gain Accuracy | ≤±3% (5mV–20V/div), ≤±4% (1–2mV/div) | Same | Same |
| Display | 7" TFT LCD, 800×480 | Same | Same |
| Interface | USB Host, USB Device, EXT Trig, Pass/Fail; LAN optional | Same | Same |
| Dimensions | 306×138×124mm | Same | Same |
| Weight | 2.5kg | Same | Same |
The MCP Instruments SDO2000 Series digital oscilloscopes deliver advanced performance with bandwidths of 70MHz, 100MHz, and 200MHz. Featuring up to 1GS/s real-time sampling, 50GS/s equivalent sampling, and a waveform capture rate of 5,000 wfms/s, these scopes provide precise signal analysis. With 34 automatic measurements, FFT and digital filtering, and a wide vertical range from 1mV/div to 20V/div, the SDO2000 Series is ideal for demanding applications. Compact yet powerful, these oscilloscopes include USB connectivity, upgradeable system software, and a high-resolution 7-inch display for detailed waveform visualization.
