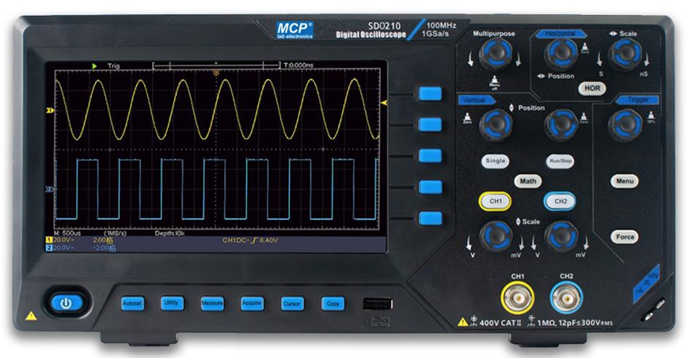

SDO210S DIGITAL STORAGE OSCILLOSCOPE
BDT 34,727/-
Product Details
Brand: MCP
Model: SDO210S
Country Of Origin: China
Features
-
Dual-channel oscilloscope
-
Bandwidth: 100MHz (SDO210/SDO210S), 200MHz (SDO220/SDO220S)
-
Independent dual-channel 1GS/s real-time sampling
-
20M memory depth
-
30 automatic waveform measurements
-
6-digit high-precision frequency counter
-
FFT spectrum analysis
-
USB device interface with SCPI & LabVIEW support, remote control & secondary development demos
-
7-inch TFT LCD display
-
Waveform generator (SDO210S, SDO220S only)
| Input: | DC/AC/GND coupling, 1MΩ ±2% // 12pF ±5pF impedance, max input 400V, probe attenuation 1X–1000X |
| Vertical: | 100MHz bandwidth (SDO210), 200MHz bandwidth (SDO220); rise time ≤3.5ns vs ≤1.75ns; 2 channels, 8-bit resolution, 2mV/div–10V/div scale |
| Horizontal: | 2ns/div–1000s/div time scale, ±100ppm accuracy |
| Sampling: | 0.5S/s–1GS/s, (Sinx)/x mode, 20M memory depth |
| Trigger: | Edge (rising/falling), video (NTSC/PAL/SECAM), line number range 1–525/625, hold-off 100ns–10s |
| Measurements: | 30+ auto functions (frequency, RMS, duty cycle, delay, pulse count, etc.), cursor ΔV/ΔT |
| Math: | +, –, ×, ÷, FFT |
| Waveform Generator (S models): | sine, square, ramp, pulse, arbitrary (160+ types), bandwidth up to 25MHz, 14-bit resolution, 125MSa/s, amplitude 0.005–3Vpp, output impedance 50Ω |
| Display: | 7" TFT LCD, 800×480 resolution |
| Interface: | USB Host & Device |
| Power: | 100–240VAC, 50/60Hz, max 16W |
| Mechanical: | 301×152×70mm, weight ~1.1kg |
The MCP Instruments SDO210/SDO220 series are advanced dual-channel digital oscilloscopes designed for precision signal analysis. With bandwidths of 100MHz and 200MHz, 1GS/s real-time sampling, and 20M memory depth, these scopes deliver high-resolution waveform capture. The S models (SDO210S, SDO220S) include a built-in waveform generator supporting sine, square, ramp, pulse, and over 160 arbitrary waveforms, making them versatile for both testing and development. Featuring FFT spectrum analysis, 30 automatic measurements, and USB connectivity with SCPI/LabVIEW support, these oscilloscopes are ideal for engineers, technicians, and educational labs seeking reliable performance in a compact design.
