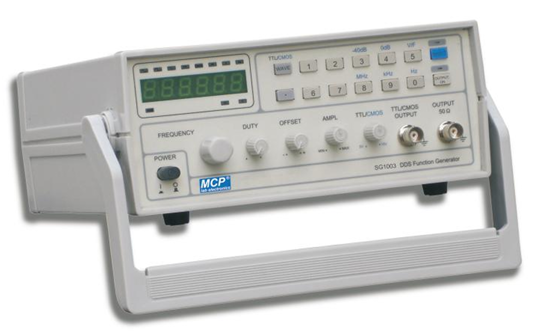

SG1003 DDS FUNCTION GENERATOR
BDT 22,901/-
Product Details
Brand: MCP
Model: SG1003
Country Of Origin: China
-
DDS (Direct Digital Synthesis) technology design for ultra-low power consumption
-
Frequency range: 0.1Hz–3MHz (SG1003), 0.1Hz–5MHz (SG1005), 0.1Hz–8MHz (SG1008)
-
High frequency accuracy and stability
-
Multiple waveform outputs: sine, square, triangle
-
Adjustable amplitude and DC offset
-
Compact, reliable design suitable for laboratory and educational use
Technical Data (Highlights)
-
Waveforms: Sine, Square, Triangle
-
Frequency Range: 0.1Hz–3MHz (SG1003), 0.1Hz–5MHz (SG1005), 0.1Hz–8MHz (SG1008)
-
Frequency Accuracy: ±5×10⁻⁶
-
Frequency Stability: ±1×10⁻⁶
-
Amplitude Range: 0.2–20Vp-p (no load)
-
Amplitude Accuracy: ±10% (1kHz, 20Vp-p)
-
Output Impedance: 50Ω ±10%
-
DC Offset: ±5V (no load)
-
Sine Wave Distortion: ≤0.8% (at 1kHz)
-
Square Wave Rise/Fall Time: ≤5µs
-
Triangle Wave Linearity: ≥98% (100Hz–100kHz)
-
Display: 3-digit LED frequency display
-
Power Supply: 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz
-
Dimensions: 240×90×170mm
-
Weight: 1.5kg
| Waveforms: | Sine, Square, Triangle |
| Frequency Range: | 0.1Hz–3MHz |
| Frequency Accuracy: | ±5×10⁻⁶ |
| Frequency Stability: | ±1×10⁻⁶ |
| Amplitude Range: | 0.2–20Vp-p (no load) |
| Amplitude Accuracy: | ±10% (1kHz, 20Vp-p) |
| Output Impedance: | 50Ω ±10% |
| DC Offset: | ±5V (no load) |
| Sine Wave Distortion: | ≤0.8% (at 1kHz) |
| Square Wave Rise/Fall Time: | ≤5µs |
| Triangle Wave Linearity: | ≥98% (100Hz–100kHz) |
| Display: | 3-digit LED frequency display |
| Power Supply: | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions: | 240×90×170mm |
| Weight: | 1.5kg |
-
DDS (Direct Digital Synthesis) technology design for ultra-low power consumption
-
Frequency range: 0.1Hz–3MHz (SG1003), 0.1Hz–5MHz (SG1005), 0.1Hz–8MHz (SG1008)
-
High frequency accuracy and stability
-
Multiple waveform outputs: sine, square, triangle
-
Adjustable amplitude and DC offset
-
Compact, reliable design suitable for laboratory and educational use
Technical Data (Highlights)
-
Waveforms: Sine, Square, Triangle
-
Frequency Range: 0.1Hz–3MHz (SG1003), 0.1Hz–5MHz (SG1005), 0.1Hz–8MHz (SG1008)
-
Frequency Accuracy: ±5×10⁻⁶
-
Frequency Stability: ±1×10⁻⁶
-
Amplitude Range: 0.2–20Vp-p (no load)
-
Amplitude Accuracy: ±10% (1kHz, 20Vp-p)
-
Output Impedance: 50Ω ±10%
-
DC Offset: ±5V (no load)
-
Sine Wave Distortion: ≤0.8% (at 1kHz)
-
Square Wave Rise/Fall Time: ≤5µs
-
Triangle Wave Linearity: ≥98% (100Hz–100kHz)
-
Display: 3-digit LED frequency display
-
Power Supply: 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz
-
Dimensions: 240×90×170mm
-
Weight: 1.5kg
The SG1000 Series DDS Function Generators deliver precise and stable waveform generation using advanced Direct Digital Synthesis technology. Available in three models—SG1003 (3MHz), SG1005 (5MHz), and SG1008 (8MHz)—these generators provide sine, square, and triangle outputs with exceptional accuracy and low distortion. Compact and energy-efficient, they are ideal for laboratory testing, circuit development, and educational applications requiring reliable signal generation across a wide frequency range.
