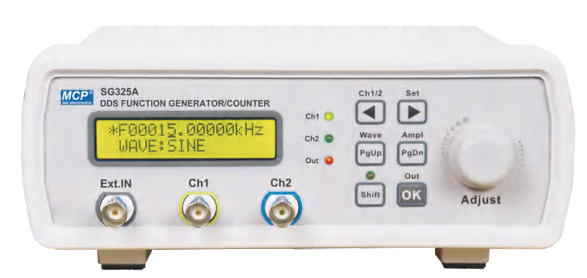

SG325A DDS FUNCTION GENERATOR
BDT 12,780/-
Product Details
Brand: MCP
Model: SG325A
Country Of Origin: China
Features
-
Dual-channel output
-
Maximum output frequency: 6MHz (SG306A), 12MHz (SG312A), 25MHz (SG325A)
-
Arbitrary waveform generation capability
-
Built-in –20dB attenuator with 1mV accuracy
-
Linear/logarithmic sweep up to 999s
-
Pulse duty cycle resolution up to 1%
-
Compact design, high desktop efficiency
-
PC software available for remote control
Technical Data (Highlights)
| Specification | SG306A | SG312A | SG325A |
|---|---|---|---|
| Max Output Frequency | 6MHz | 12MHz | 25MHz |
| Waveforms | Sine, Square, Triangle, Pulse, Arbitrary | Same | Same |
| Resolution | 1µHz | Same | Same |
| Accuracy | ±20ppm | Same | Same |
| Stability | ±1ppm | Same | Same |
| Amplitude Range | 20mVp-p–20Vp-p | Same | Same |
| Amplitude Accuracy | ±(1%+1mV) | Same | Same |
| DC Offset Range | ±10V | Same | Same |
| Phase Range | 0–360° | Same | Same |
| Harmonic Distortion | ≤0.3% (1kHz, 10Vp-p) | Same | Same |
| Rise Time | ≤20ns | Same | Same |
| Duty Cycle Range | 1%–99% | Same | Same |
| TTL Output | Low ≤0.4V, High ≥3.5V | Same | Same |
| Sweep Modes | Linear/Logarithmic, 0.1Hz–25MHz | Same | Same |
| Storage | 20 groups internal, USB external | Same | Same |
| Interface | USB | Same | Same |
| Power Supply | DC 5V (adapter) | Same | Same |
| Dimensions | 190×71×180mm | Same | Same |
| Weight | 0.5kg | Same | Same |
| Max Output Frequency | 25MHz |
| Waveforms | Sine, Square, Triangle, Pulse, Arbitrary |
| Resolution | 1µHz |
| Accuracy | ±20ppm |
| Stability | ±1ppm |
| Amplitude Range | 20mVp-p–20Vp-p |
| Amplitude Accuracy | ±(1%+1mV) |
| DC Offset Range | ±10V |
| Phase Range | 0–360° |
| Harmonic Distortion | ≤0.3% (1kHz, 10Vp-p) |
| Rise Time | ≤20ns |
| Duty Cycle Range | 1%–99% |
| TTL Output | Low ≤0.4V, High ≥3.5V |
| Sweep Modes | Linear/Logarithmic, 0.1Hz–25MHz |
| Storage | 20 groups internal, USB external |
| Interface | USB |
| Power Supply | DC 5V (adapter) |
| Dimensions | 190×71×180mm |
| Weight | 0.5kg |
Features
-
Dual-channel output
-
Maximum output frequency: 6MHz (SG306A), 12MHz (SG312A), 25MHz (SG325A)
-
Arbitrary waveform generation capability
-
Built-in –20dB attenuator with 1mV accuracy
-
Linear/logarithmic sweep up to 999s
-
Pulse duty cycle resolution up to 1%
-
Compact design, high desktop efficiency
-
PC software available for remote control
Technical Data (Highlights)
| Specification | SG306A | SG312A | SG325A |
|---|---|---|---|
| Max Output Frequency | 6MHz | 12MHz | 25MHz |
| Waveforms | Sine, Square, Triangle, Pulse, Arbitrary | Same | Same |
| Resolution | 1µHz | Same | Same |
| Accuracy | ±20ppm | Same | Same |
| Stability | ±1ppm | Same | Same |
| Amplitude Range | 20mVp-p–20Vp-p | Same | Same |
| Amplitude Accuracy | ±(1%+1mV) | Same | Same |
| DC Offset Range | ±10V | Same | Same |
| Phase Range | 0–360° | Same | Same |
| Harmonic Distortion | ≤0.3% (1kHz, 10Vp-p) | Same | Same |
| Rise Time | ≤20ns | Same | Same |
| Duty Cycle Range | 1%–99% | Same | Same |
| TTL Output | Low ≤0.4V, High ≥3.5V | Same | Same |
| Sweep Modes | Linear/Logarithmic, 0.1Hz–25MHz | Same | Same |
| Storage | 20 groups internal, USB external | Same | Same |
| Interface | USB | Same | Same |
| Power Supply | DC 5V (adapter) | Same | Same |
| Dimensions | 190×71×180mm | Same | Same |
| Weight | 0.5kg | Same | Same |
The SG300A Series Arbitrary Waveform Generators deliver precise and versatile signal generation for laboratory and R&D applications. Available in 6MHz, 12MHz, and 25MHz models, these compact instruments support sine, square, triangle, pulse, and arbitrary waveforms with high accuracy and stability. Featuring dual-channel outputs, sweep functions up to 999s, and pulse duty cycle resolution down to 1%, the SG300A Series ensures reliable waveform simulation. With USB connectivity and PC software support, these generators are ideal for electronics testing, circuit development, and educational environments.
