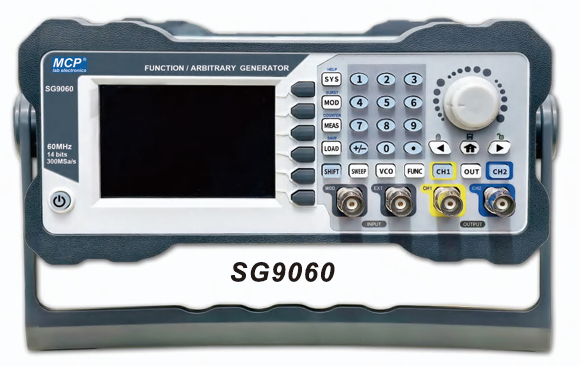

SG9060 DDS FUNCTION (ARBITRARY) GENERATOR
BDT 36,562/-
Product Details
Brand: MCP
Model: SG9060
Country Of Origin: China
Features
-
Independent dual channels
-
8k points, 14-bit arbitrary waveform output
-
Max sampling rate: 300MSa/s
-
Max sine frequency: 60MHz (SG9060), 80MHz (SG9080)
-
Output amplitude up to 25Vp-p (≤1MHz)
-
Multi-modulation functions: AM, FM, PM, ASK, FSK, PSK, PWM
-
Input signal measurement, sweep, and counter functions
-
External modulation input range: 0–20kHz
-
Voltage control supported
-
AC and DC power supply options
Technical Data (Highlights)
| Specification | SG9060 | SG9080 |
|---|---|---|
| Channels | 2 | 2 |
| Frequency Range | Sine: 1nHz–60MHz; Square: 1nHz–30MHz; Triangle: 1nHz–50MHz; Pulse: 1nHz–30MHz; TTL: 1nHz–20MHz; Arbitrary: 1nHz–50MHz | Sine: 1nHz–80MHz; Square: 1nHz–30MHz; Triangle: 1nHz–50MHz; Pulse: 1nHz–30MHz; TTL: 1nHz–20MHz; Arbitrary: 1nHz–50MHz |
| Pulse Width Range | 5ns–4s | Same |
| Pulse Period Range | 10ns–40s | Same |
| Frequency Resolution | 1nHz | Same |
| Frequency Accuracy | ±5ppm (0–50°C) | Same |
| Frequency Stability | ±3ppm/year | Same |
| Amplitude Range | 2mVp-p–25Vp-p (≤1MHz); 2mVp-p–10Vp-p (1–11MHz); 2mVp-p–5Vp-p (11–60MHz) | Same, plus 2mVp-p–3.6Vp-p (60–80MHz) |
| Amplitude Resolution | 1mVpp | Same |
| Amplitude Stability | ±1% ±1mVpp (@1kHz, >10mVpp) | Same |
| DC Offset Range | –9.99V–+15V | Same |
| Phase Range | 0–359.99° | Same |
| Phase Resolution | 0.01° | Same |
| Harmonic Distortion | ≤0.5% (@1kHz, 5Vp-p) | Same |
| Rise/Fall Time | ≤10ns | Same |
| Duty Cycle Range | 0.01%–99.99% | Same |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM, Burst | Same |
| Measurement Functions | Frequency, pulse width, period, duty cycle | Same |
| Counter Range | 0–4294967295 | Same |
| Sweep Modes | Linear, Logarithmic | Same |
| Sweep Time | 0.01s–640s | Same |
| Display | 3.5" TFT color LCD | Same |
| Storage | 100 groups | Same |
| Interface | USB, TTL-level serial port (secondary development) | Same |
| Power Supply | 85–264VAC, 47–63Hz; 5VDC ±0.5VDC, 3A | Same |
| Dimensions | 247×102×243mm | Same |
| Weight | 1.0kg | Same |
| Channels | 2 |
| Frequency Range | Sine: 1nHz–60MHz; Square: 1nHz–30MHz; Triangle: 1nHz–50MHz; Pulse: 1nHz–30MHz; TTL: 1nHz–20MHz; Arbitrary: 1nHz–50MHz |
| Pulse Width Range | 5ns–4s |
| Pulse Period Range | 10ns–40s |
| Frequency Resolution | 1nHz |
| Frequency Accuracy | ±5ppm (0–50°C) |
| Frequency Stability | ±3ppm/year |
| Amplitude Range | 2mVp-p–25Vp-p (≤1MHz); 2mVp-p–10Vp-p (1–11MHz); 2mVp-p–5Vp-p (11–60MHz) |
| Amplitude Resolution | 1mVpp |
| Amplitude Stability | ±1% ±1mVpp (@1kHz, >10mVpp) |
| DC Offset Range | –9.99V–+15V |
| Phase Range | 0–359.99° |
| Phase Resolution | 0.01° |
| Harmonic Distortion | ≤0.5% (@1kHz, 5Vp-p) |
| Rise/Fall Time | ≤10ns |
| Duty Cycle Range | 0.01%–99.99% |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM, Burst |
| Measurement Functions | Frequency, pulse width, period, duty cycle |
| Counter Range | 0–4294967295 |
| Sweep Modes | Linear, Logarithmic |
| Sweep Time | 0.01s–640s |
| Display | 3.5" TFT color LCD |
| Storage | 100 groups |
| Interface | USB, TTL-level serial port (secondary development) |
| Power Supply | 85–264VAC, 47–63Hz; 5VDC ±0.5VDC, 3A |
| Dimensions | 247×102×243mm |
| Weight | 1.0kg |
Features
-
Independent dual channels
-
8k points, 14-bit arbitrary waveform output
-
Max sampling rate: 300MSa/s
-
Max sine frequency: 60MHz (SG9060), 80MHz (SG9080)
-
Output amplitude up to 25Vp-p (≤1MHz)
-
Multi-modulation functions: AM, FM, PM, ASK, FSK, PSK, PWM
-
Input signal measurement, sweep, and counter functions
-
External modulation input range: 0–20kHz
-
Voltage control supported
-
AC and DC power supply options
Technical Data (Highlights)
| Specification | SG9060 | SG9080 |
|---|---|---|
| Channels | 2 | 2 |
| Frequency Range | Sine: 1nHz–60MHz; Square: 1nHz–30MHz; Triangle: 1nHz–50MHz; Pulse: 1nHz–30MHz; TTL: 1nHz–20MHz; Arbitrary: 1nHz–50MHz | Sine: 1nHz–80MHz; Square: 1nHz–30MHz; Triangle: 1nHz–50MHz; Pulse: 1nHz–30MHz; TTL: 1nHz–20MHz; Arbitrary: 1nHz–50MHz |
| Pulse Width Range | 5ns–4s | Same |
| Pulse Period Range | 10ns–40s | Same |
| Frequency Resolution | 1nHz | Same |
| Frequency Accuracy | ±5ppm (0–50°C) | Same |
| Frequency Stability | ±3ppm/year | Same |
| Amplitude Range | 2mVp-p–25Vp-p (≤1MHz); 2mVp-p–10Vp-p (1–11MHz); 2mVp-p–5Vp-p (11–60MHz) | Same, plus 2mVp-p–3.6Vp-p (60–80MHz) |
| Amplitude Resolution | 1mVpp | Same |
| Amplitude Stability | ±1% ±1mVpp (@1kHz, >10mVpp) | Same |
| DC Offset Range | –9.99V–+15V | Same |
| Phase Range | 0–359.99° | Same |
| Phase Resolution | 0.01° | Same |
| Harmonic Distortion | ≤0.5% (@1kHz, 5Vp-p) | Same |
| Rise/Fall Time | ≤10ns | Same |
| Duty Cycle Range | 0.01%–99.99% | Same |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK, PWM, Burst | Same |
| Measurement Functions | Frequency, pulse width, period, duty cycle | Same |
| Counter Range | 0–4294967295 | Same |
| Sweep Modes | Linear, Logarithmic | Same |
| Sweep Time | 0.01s–640s | Same |
| Display | 3.5" TFT color LCD | Same |
| Storage | 100 groups | Same |
| Interface | USB, TTL-level serial port (secondary development) | Same |
| Power Supply | 85–264VAC, 47–63Hz; 5VDC ±0.5VDC, 3A | Same |
| Dimensions | 247×102×243mm | Same |
| Weight | 1.0kg | Same |
The SG9000 Series DDS Arbitrary Function Generators deliver advanced waveform generation with dual independent channels, ultra-fine resolution, and wide frequency coverage up to 80MHz. Featuring 14-bit resolution, 300MSa/s sampling, and support for multiple modulation types (AM, FM, PM, ASK, FSK, PSK, PWM), these generators provide precise and versatile signal outputs. With built-in measurement, sweep, and counter functions, plus USB and TTL-level interfaces for secondary development, the SG9000 Series is ideal for laboratories, R&D, and advanced electronic testing.
