SPO3072 DIGITAL OSCILLOSCOPE PAD
BDT 71,235/-
Product Details
Brand: MCP
Model: SPO3072
Country Of Origin: China
Features
-
Dual or four channels
-
Bandwidth: 70MHz, 100MHz, 120MHz
-
Sampling rate: 1GSa/s
-
Oscilloscope + 4½ digit multimeter (2-channel models only)
-
Vertical resolution: 8-bit (standard), 14-bit (A models)
-
Record length: 40M
-
Waveform refresh rate: 45,000 wfms/s
-
Advanced trigger and bus decoding functions (I²C, SPI, RS232/UART, CAN optional)
-
Built-in 8000mAh battery (≈5 hours operation)
-
8-inch capacitive multi-touch LCD (800×600 pixels)
-
Wi-Fi module (optional)
| Channels | 2 |
| Bandwidth | 70MHz |
| Sampling Rate | 1GSa/s |
| Vertical Resolution | 8-bit |
| Record Length | 40M |
| Waveform Refresh Rate | 45,000 wfms/s |
| Vertical Sensitivity | 1mV/div–10V/div |
| Input Impedance | 1MΩ ±2%, 15pF ±5pF |
| Max Input Voltage | ≤300Vrms |
| Trigger Types | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I²C, SPI, RS232/UART, CAN (optional) |
| Math Functions | +, –, ×, ÷, FFT, FFT RMS, Intg, Diff, Sqrt, User Defined, Digital Filter |
| Waveform Storage | 100 waveforms |
| Communication | USB Host/Device, LAN, Pass/Fail, Wi-Fi optional |
| Frequency Counter | Yes |
| Battery | 7.4V, 8000mAh, ≈5h |
| Dimensions | 270×191×48mm |
| Weight | ≈1.7kg |

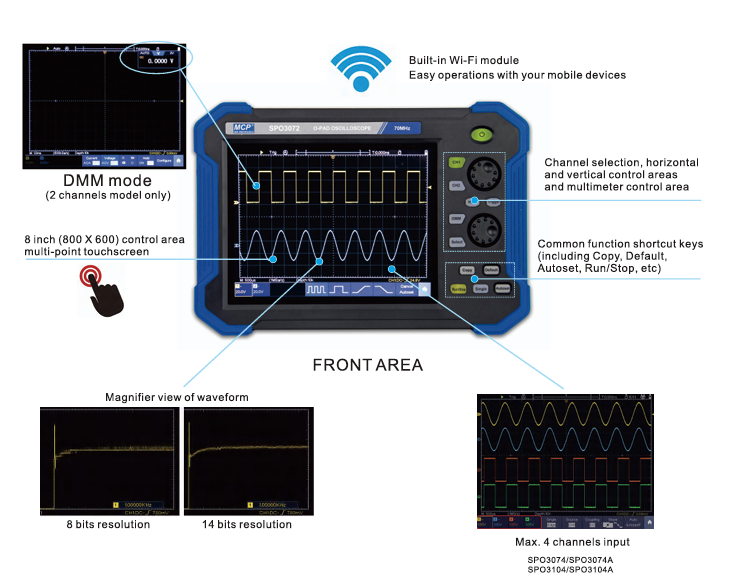

Portable Handheld-Style Digital Oscilloscope with Multimeter (70 / 100 / 120 MHz)
A battery-powered portable oscilloscope with an 8" capacitive touchscreen, deep 40M memory, and a built-in 4½-digit multimeter on the 2-channel models. Use it on the bench or carry it into the field, with about 5 hours of runtime on a full charge. Choose 2 or 4 channels, 70 to 120 MHz bandwidth, and standard 8-bit or high-resolution 14-bit (A models) vertical resolution.
Use it for: field service and maintenance, automotive and industrial troubleshooting, embedded development, electronics teaching labs, and R&D.
You can:
Capture signals at 1 GSa/s with 40M record length and up to 45,000 wfms/s refresh
See small details with 14-bit resolution on the A models (8-bit on standard models)
Measure from 1 mV/div to 10 V/div
Trigger on edge, video, pulse, slope, runt, windows, timeout, Nth edge, and logic conditions
Decode I²C, SPI, and RS232/UART buses, plus CAN as an option
Analyze signals with math functions (+, -, ×, ÷, FFT, FFT RMS, integral, differential, square root, user defined) and a digital filter
Read frequency on the built-in counter, and save up to 100 waveforms
Use the scope and multimeter in one unit (2-channel models only)
Work anywhere on the built-in 8000 mAh battery

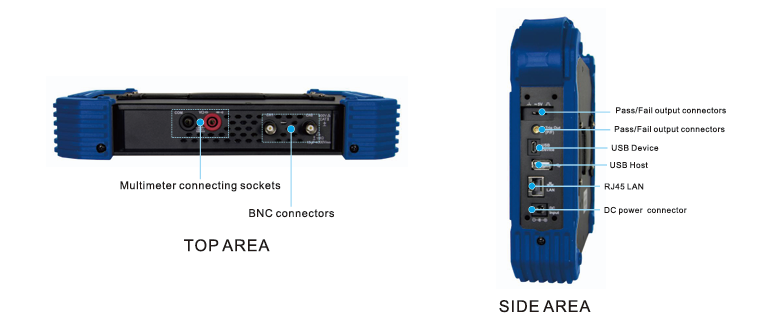

Connect through USB host/device, LAN, and SCPI, with optional Wi-Fi
Built-in multimeter (2-channel models):
4½ digits with auto-ranging
Voltage: 20 mV to 200 V range, up to 1000 VDC / 750 VAC
Current: up to 20 A (AC/DC), with the external current module
Resistance: 200 Ω to 100 MΩ, plus diode test
Key specs:
Display: 8" capacitive multi-touch LCD, 800 × 600
Input: 1 MΩ ±2% / 15 pF, 300 Vrms max
Battery: 7.4 V, 8000 mAh, about 5 hours
Size and weight: 270 × 191 × 48 mm, about 1.7 kg
Includes: 2 probes, probe adjust accessory, micro USB cable, BNC-SAM connector, current external module, power adapter and cord, folding stand, carrying bag, and multimeter leads (2-channel models only).
he SPO3000 Series Digital Oscilloscope Pad combines portability with powerful measurement capabilities. Offering bandwidths from 70MHz to 120MHz, 1GSa/s sampling, and up to 14-bit resolution, these compact devices deliver high-precision waveform analysis. With a record length of 40M, 45,000 wfms/s refresh rate, and advanced trigger/bus decoding, the SPO3000 Series is ideal for engineers on the move. Featuring an 8-inch multi-touch display, built-in battery for 5 hours of operation, and optional Wi-Fi connectivity, these oscilloscope pads provide unmatched flexibility for fieldwork, labs, and education.
