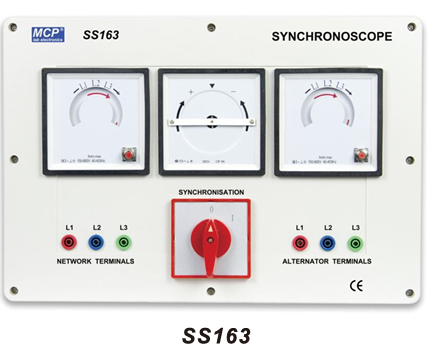

SS163 SYNCHROSCOPE
BDT 30,705/-
Product Details
Brand: MCP
Model: SS163
Country Of Origin: China
Main Advantages
Safe generator-to-grid synchronization
Phase presence and order indication
Voltage and frequency comparison meter
Clear best-time synchronization indicator
Easy wiring with labeled terminals
Robust panel-mount construction
Suitable for education and research
| Type: | Synchroscope |
| Working Voltage: | 400V |
| Max. Current: | 16A |
| Dimensions (WÃHÃD): | 380 Ã 200 Ã 260 mm |
| Terminals: | Network (L1, L2, L3), Alternator (L1, L2, L3) |
| Control: | Synchronization rotary switch |
The MCP SS163 Synchroscope is a specialized motor accessory designed to safely and accurately synchronize a working AC generator with a national 3 x 400V power grid. It features two meters that indicate the presence and order of the phases, along with a central meter that compares the voltage and frequency difference between the 3-phase 400V network and the AC generator, clearly showing the optimal moment to switch on synchronization. The unit is equipped with a red synchronization rotary switch and clearly labeled network and alternator terminals (L1, L2, L3) for straightforward wiring. It operates at a working voltage of 400V with a maximum current of 16A. The device measures 380 x 200 x 260 mm and is ideal for industrial, commercial, and educational power generation applications.
MCP SS163 Synchroscope – Safe AC Generator to 400V Grid Synchronization
Synchronize AC generators safely and precisely with the MCP SS163, a professional-grade synchroscope designed for secure connection of a working AC generator to a national 3 x 400V power grid. As a key motor accessory, it is ideal for engineers, technicians, and educators working with power generation, grid integration, and electrical training systems.
Key Features & Benefits:
-
Safe Grid Synchronization: Allows secure connection of a working AC generator to a national 3 x 400V power grid.
-
Phase Presence & Order Indication: Two dedicated meters clearly indicate the presence and correct order of the phases.
-
Voltage & Frequency Comparison: A central meter compares the voltage and frequency difference between the 3-phase 400V network and the AC generator.
-
Best-Time Synchronization Indicator: The central meter shows the optimal moment to switch on synchronization for safe paralleling.
-
Easy Operation: Features a red synchronization rotary switch for straightforward control.
-
Clear Terminal Connections: Equipped with clearly labeled network and alternator terminals (L1, L2, L3) for easy wiring.
-
Robust Panel-Mount Design: Operates at 400V working voltage with a maximum current of 16A, and measures 380 x 200 x 260 mm.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
