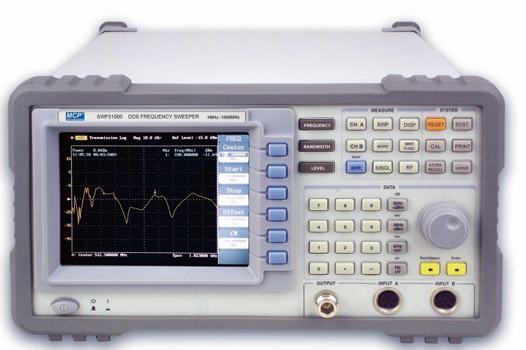

SWP31000 FREQUENCY RESPONSE ANALYZER
BDT 568,195/-
Product Details
Brand: MCP
Model: SWP31000
Country Of Origin: China
Features
-
Sweep signal up to 1GHz
-
High accuracy and stability using digital PLL technology
-
Linear and logarithmic scale display modes
-
Auto and manual sweep time control
-
5 user-set markers with gain and frequency display
-
6.4-inch TFT color LCD with soft keys
-
RS232 and VGA interfaces, optional GPIB
-
Limit line search, set, and compare functions
-
–3dB bandwidth and Q-value measurement capability
Technical Data (Highlights)
| Specification | SWP31000 Series |
|---|---|
| Frequency Range | 1MHz–1024MHz |
| Frequency Resolution | 100Hz |
| Frequency Accuracy | ±5×10⁻⁴ |
| Frequency Stability | 1×10⁻⁶/day |
| Amplitude Range | –67dBm to +13dBm |
| Amplitude Accuracy | ±1.0dBm (–40dBm to +12dBm, f≥10MHz) |
| Amplitude Flatness | ±1.0dBm (–40dBm to +12dBm) |
| SWR | ≤1.5 |
| Output Attenuation | ≤80dB |
| Scale Units | mVrms, μVrms, dBm |
| Output Impedance | 50Ω |
| Harmonic Distortion | ≤–25dBc |
| Sweep Time | Auto/manual (250ms–10s) |
| Sweep Mode | Continuous/single |
| Trigger Mode | Internal/external |
| External Trigger Level | TTL |
| External Trigger Frequency | ≤3Hz |
| Input Impedance | 50Ω |
| Input Amplitude Range | –40dBm to +13dBm |
| Display Scales | Log: 1/2/5/10dB per div; Lin: 10–500mV per div |
| Markers | 5 |
| Display Range | 80dB |
| Detector Frequency Range | 1MHz–1024MHz |
| Dynamic Range | 60dB |
| Detector Impedance | 50Ω |
| Max Input Voltage | +16dBm |
| Safety Voltage | ±25VDC, +20dBm |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions (W×H×D) | 340×190×360mm |
| Weight | 6kg |
| Frequency Range | 1MHz–1024MHz |
| Frequency Resolution | 100Hz |
| Frequency Accuracy | ±5×10⁻⁴ |
| Frequency Stability | 1×10⁻⁶/day |
| Amplitude Range | –67dBm to +13dBm |
| Amplitude Accuracy | ±1.0dBm (–40dBm to +12dBm, f≥10MHz) |
| Amplitude Flatness | ±1.0dBm (–40dBm to +12dBm) |
| SWR | ≤1.5 |
| Output Attenuation | ≤80dB |
| Scale Units | mVrms, μVrms, dBm |
| Output Impedance | 50Ω |
| Harmonic Distortion | ≤–25dBc |
| Sweep Time | Auto/manual (250ms–10s) |
| Sweep Mode | Continuous/single |
| Trigger Mode | Internal/external |
| External Trigger Level | TTL |
| External Trigger Frequency | ≤3Hz |
| Input Impedance | 50Ω |
| Input Amplitude Range | –40dBm to +13dBm |
| Display Scales | Log: 1/2/5/10dB per div; Lin: 10–500mV per div |
| Markers | 5 |
| Display Range | 80dB |
| Detector Frequency Range | 1MHz–1024MHz |
| Dynamic Range | 60dB |
| Detector Impedance | 50Ω |
| Max Input Voltage | +16dBm |
| Safety Voltage | ±25VDC, +20dBm |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions (W×H×D) | 340×190×360mm |
| Weight | 6kg |
Features
-
Sweep signal up to 1GHz
-
High accuracy and stability using digital PLL technology
-
Linear and logarithmic scale display modes
-
Auto and manual sweep time control
-
5 user-set markers with gain and frequency display
-
6.4-inch TFT color LCD with soft keys
-
RS232 and VGA interfaces, optional GPIB
-
Limit line search, set, and compare functions
-
–3dB bandwidth and Q-value measurement capability
Technical Data (Highlights)
| Specification | SWP31000 Series |
|---|---|
| Frequency Range | 1MHz–1024MHz |
| Frequency Resolution | 100Hz |
| Frequency Accuracy | ±5×10⁻⁴ |
| Frequency Stability | 1×10⁻⁶/day |
| Amplitude Range | –67dBm to +13dBm |
| Amplitude Accuracy | ±1.0dBm (–40dBm to +12dBm, f≥10MHz) |
| Amplitude Flatness | ±1.0dBm (–40dBm to +12dBm) |
| SWR | ≤1.5 |
| Output Attenuation | ≤80dB |
| Scale Units | mVrms, μVrms, dBm |
| Output Impedance | 50Ω |
| Harmonic Distortion | ≤–25dBc |
| Sweep Time | Auto/manual (250ms–10s) |
| Sweep Mode | Continuous/single |
| Trigger Mode | Internal/external |
| External Trigger Level | TTL |
| External Trigger Frequency | ≤3Hz |
| Input Impedance | 50Ω |
| Input Amplitude Range | –40dBm to +13dBm |
| Display Scales | Log: 1/2/5/10dB per div; Lin: 10–500mV per div |
| Markers | 5 |
| Display Range | 80dB |
| Detector Frequency Range | 1MHz–1024MHz |
| Dynamic Range | 60dB |
| Detector Impedance | 50Ω |
| Max Input Voltage | +16dBm |
| Safety Voltage | ±25VDC, +20dBm |
| Power Supply | 110–127VAC ±10%, 220–240VAC ±10%, 50/60Hz ±2Hz |
| Dimensions (W×H×D) | 340×190×360mm |
| Weight | 6kg |
The SWP31000 Series Frequency Response Analyzer offers precision sweep measurement up to 1GHz with exceptional stability and accuracy. Utilizing digital PLL technology, it provides both linear and logarithmic scale displays, automatic or manual sweep timing, and advanced marker functions for gain and frequency analysis. Equipped with RS232, VGA, and optional GPIB interfaces, this analyzer supports bandwidth and Q-value measurement, making it ideal for RF testing, filter characterization, and circuit analysis in research and production environments.
