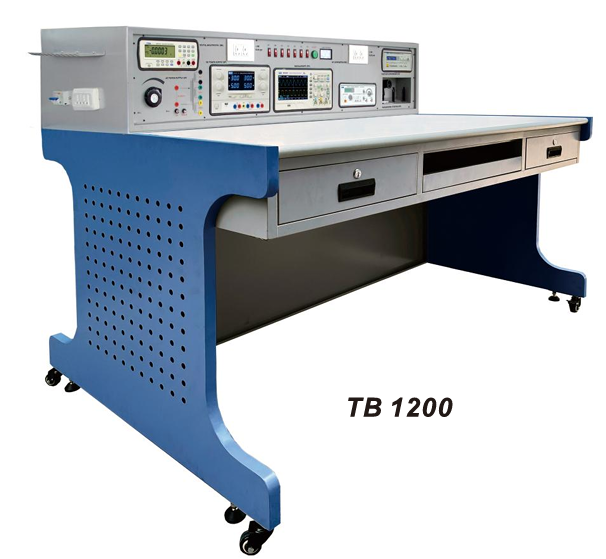

TB1200 Training Bench + Instrument housing
BDT 311,442/-
Product Details
Brand: MCP
Model: TB1200
Country Of Origin: China
Feature:
The benches are designed for the use of training,developing sevices,calibration and
assembling benches
| Training Bench | Training bench (TB1000) |
| Instrument Housing |
Oscilloscope: SDO1022 ×1 DC power supply: M10-QR303 ×1 Function generator: SG1638B ×1 RF generator: HG1503 ×1 Digital multimeter: MT8145 ×1 AC power supply: 0–250V, 6V, 12V, 24V ×1 Soldering station ×1 AC outlet ×6 Test leads holder: PTL2001 ×2 |
| Oscilloscope: SDO1022 |
Bandwidth: 25MHz Sampling rate: 100MSa/s Vertical sensitivity: 5mV/div – 5V/div Trigger mode: Auto, Normal, Single |
| DC Power Supply: M10-QR303 |
Output voltage: 0–30V ×2; 5V fixed Output current: 0–3A ×2; Max. 1A fixed Output mode: Independent, Series, Parallel |
| Function Generator: SG1638B |
Output frequency: 2MHz Output amplitude: ≥20Vp-p (1MΩ Load); ≥10Vp-p (50Ω Load) Output waveforms: Sine, Square, Triangle Output impedance: 50Ω ±10% |
| RF Generator: HG1503 |
Output frequency: 100Hz–150MHz (Max. 450MHz), 6 ranges Modulation: AM, FM Audio signal generator: >1.5Vrms, 1kHz, sine (<3% distortion) |
| Digital Multimeter: MT8145 |
DC voltage: 80mV, 800mV, 8V, 80V, 800V, 1000V AC voltage: 80mV, 800mV, 8V, 80V, 750V DC current: 80mA, 800mA, 8A, 20A AC current: 80mA, 800mA, 8A, 20A Resistance: 800Ω, 8kΩ, 80kΩ, 800kΩ, 8MΩ, 80MΩ Capacitance: 1nF, 10nF, 100nF, 1µF, 10µF, 100µF Frequency: 0.5Hz–8MHz |
The MCP Lab Electronics TB 1200 Training Bench is part of the TB Series, combining the TB 1000 base bench with a fully integrated instrument housing. It includes an oscilloscope (25 MHz, 100Ms/s), DC power supply (0–30V ×2, 5V fixed), function generator (2 MHz, sine/square/triangle), RF generator (100 Hz–150 MHz, AM/FM modulation), digital multimeter (DC/AC voltage, current, resistance, capacitance, frequency), soldering station, AC power supply (0–250V, 6V, 12V, 24V), six AC outlets, and test lead holders. This comprehensive setup provides everything needed for electronics training, calibration, and assembly, making it ideal for laboratories, workshops, and educational institutions.
MCP Lab Electronics TB 1200 Training Bench is a fully equipped workstation designed for electronics training, calibration, and assembly. Built on the TB 1000 base, it integrates instrument housing with essential lab equipment including oscilloscope, DC and AC power supplies, function generator, RF generator, digital multimeter, soldering station, and multiple AC outlets. This modular design provides a complete solution for technical education and laboratory environments.
