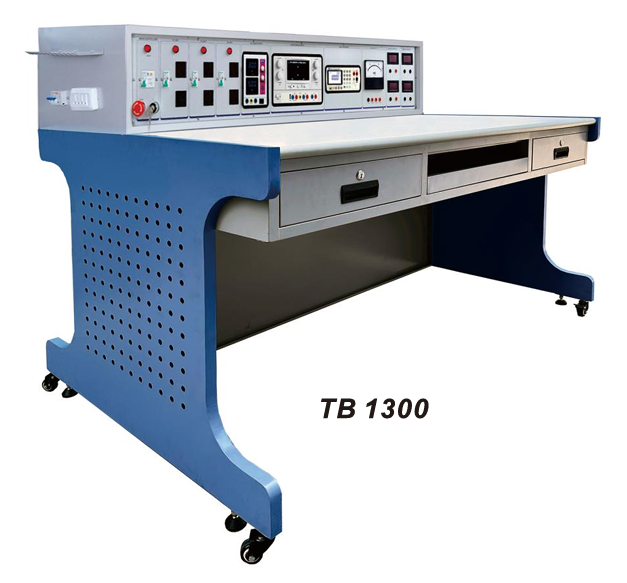

TB1300 Training bench + instrument housing
BDT 241,258/-
Product Details
Brand: MCP
Model: TB1300
Country Of Origin: China
Feature:
The benches are designed for the use of training,developing sevices,calibration and
assembling benches
| Training bench | TB1000 |
| Instrument housing |
AC power supply: M10-ASS305 ×1 DC power supply: M10-QR303 ×1 Digital multimeter: MT8145 ×1 Digital DC current and voltage meter ×1 Digital AC current and voltage meter ×1 Analog galvanometer ×1 AC outlet ×6 |
| AC power supply (M10-ASS305) |
Output voltage 0~30VAC, Output current 0~5A, Output frequency 50Hz/60Hz ( switchable or line tracing) |
| DC power supply (M10-QR303) |
Output voltage 0~30V ×2, 5V fixed; Output current 0~3A ×2, Max. 1A fixed; Output mode: independent, series, parallel |
| Digital AC current & voltage meter: | 30V/5A |
| Digital DC current & voltage meter: | 30V/5A |
| Analog galvanometer: | -50µA~+50µA, -0.5mA~+0.5mA, -5mA~+5mA |
| Digital multimeter (MT8145) |
DC voltage: 80mV–1000V; AC voltage: 80mV–750V; DC current: 80mA–20A; AC current: 80mA–20A; Resistance: 800Ω–80MΩ; Capacitance: 1nF–100µF; Frequency: 0.5Hz–8MHz |
The MCP Lab Electronics TB1300 Training Bench is part of the TB Series, combining the TB1000 base bench with a fully integrated instrument housing. It includes AC and DC power supplies, digital multimeter, digital AC/DC meters, and an analog galvanometer, along with six AC outlets. With precise technical specifications such as 0–30VAC/5A output, dual 0–30V DC supplies, and advanced measurement ranges, the TB1300 provides a complete platform for electrical training, calibration, and assembly. Its robust design makes it ideal for laboratories, workshops, and educational institutions.
MCP Lab Electronics TB1300 Training Bench is a modular workstation designed for electrical training, calibration, and assembly. Built on the TB1000 base, it integrates instrument housing with AC/DC power supplies, digital multimeter, AC/DC meters, and an analog galvanometer. With six AC outlets and advanced measurement capabilities, the TB1300 offers a complete solution for technical education and laboratory environments.
