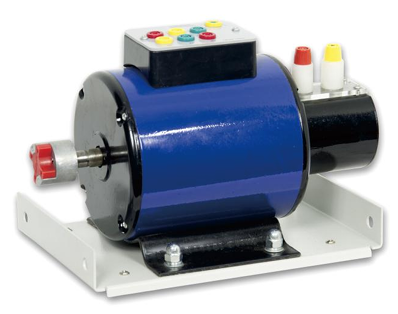

TM300-1500S THREE-PHASE SYNCHRONOUS MOTOR/GENERATOR
BDT 60,847/-
Product Details
Brand: MCP
Model: TM300-1500S
Country Of Origin: China
Main Advantages
Dual motor/generator operation
Synchronous design for precise speed
DC-excited rotor for power factor control
Dual voltage 230V/400V compatibility
Stable 200W output
Durable industrial construction
Suitable for education and research
| Machine Type: | Three-Phase Synchronous Motor/Generator |
| Voltage: | 230V/400V |
| Current: | 2.3A |
| Frequency: | 50Hz |
| Rotor Voltage: | 24VDC |
| Rotor Current: | 2.6ADC |
| Output Power: | 200W |
| Rotate Speed: | 1500rpm |
| Shaft Height: | 75mm |
| Dimensions: | 300 x 180 x 180 mm |
| Weight: | 9kg |
The MCP TM300-1500S Three-Phase Synchronous Motor/Generator is a versatile, industrial-grade machine designed for both motor and generator operation. Ideal for industrial, commercial, and educational applications, it features synchronous construction with a DC-excited rotor for precise speed control and power factor correction. The TM300-1500S operates on a three-phase voltage of 230V/400V at 50Hz, drawing 2.3A, with a rotor excitation of 24VDC and 2.6ADC. It delivers a stable output power of 200W and operates at a synchronous rotate speed of 1500rpm. The unit features a 75mm shaft height and dimensions of 300 x 180 x 180 mm, weighing 9kg, with a terminal box featuring color-coded control buttons for easy operation.
MCP TM300-1500S Three-Phase Synchronous Motor/Generator – 200W, 1500rpm, 230V/400V
Power your equipment with precision and versatility using the MCP TM300-1500S, a three-phase synchronous motor/generator designed for reliable performance in both motoring and generating modes. Ideal for industrial, commercial, and educational applications, this machine combines synchronous construction with a robust, durable design.
Key Features & Benefits:
-
Dual Motor/Generator Operation: Functions as both a synchronous motor and an alternator, providing versatility for a wide range of applications.
-
Synchronous Design: Operates at a constant synchronous speed of 1500rpm for precise speed control and power factor correction.
-
DC-Excited Rotor: Features a 24VDC, 2.6ADC rotor excitation for adjustable power factor and voltage regulation.
-
Dual Voltage Compatibility: Operates on 230V/400V at 50Hz, drawing 2.3A for flexible installation.
-
Stable Output: Delivers 200W of output power with high efficiency.
-
Robust Construction: Features a 75mm shaft height and dimensions of 300 x 180 x 180 mm, weighing 9kg.
-
Easy Operation & Wiring: Equipped with a terminal box featuring color-coded control buttons (Red, Yellow, Blue, Green) for straightforward connection and control.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
