TSP-5M TORQUE METER
BDT 21,932/-
Product Details
Brand: MCP
Model: TSP-5M
Country Of Origin: China
Main Advantages
3-in-1 display: torque, speed, and power
Clear red LED readouts
Designed for TSP-5S sensor
Real-time performance monitoring
HOLD and CLEAR functions
Compact benchtop design
Suitable for education and research
| Type: | 3-in-1 Torque Meter |
| Torque Measuring Range: | 0~±5.00Nm |
| Rotate Speed Range: | 0~9999rpm |
| Power Display Range: | 0~5235W |
| Output Voltage: | 24VDC |
| Max. Torque: | 5Nm |
| Adaptive Sensor: | TSP-5S |
| Dimensions: | 170×135×70 mm |

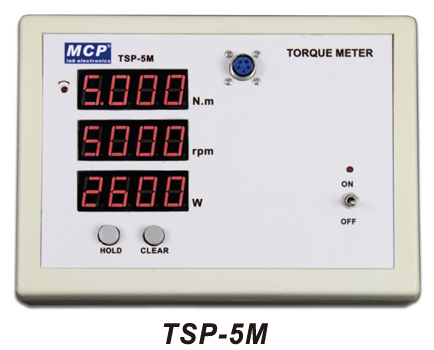

The MCP TSP-5M 3-in-1 Torque Meter is a precision digital display unit designed to work in conjunction with a dynamic torque sensor for comprehensive motor performance analysis. As part of the TSP-M Series, it provides simultaneous, real-time readouts of torque, rotational speed, and power. The TSP-5M features three clear red LED displays showing torque in N.m (0~±5.00Nm), speed in rpm (0~9999rpm), and power in Watts (0~5235W). It operates on a 24VDC output voltage and is specifically designed to be paired with the TSP-5S dynamic torque sensor. The unit includes a blue sensor connector, HOLD and CLEAR buttons for data management, and an ON/OFF switch with a red indicator light. With compact dimensions of 170 x 135 x 70 mm, it is ideal for benchtop use in industrial, commercial, and educational motor testing applications.
MCP TSP-5M 3-in-1 Torque Meter – Torque, Speed & Power Display for TSP-5S Sensor
Monitor motor performance with precision using the MCP TSP-5M, a 3-in-1 torque meter designed to work with dynamic torque sensors for simultaneous display of torque, rotational speed, and power. As a key model in the TSP-M Series, this instrument is ideal for engineers, technicians, and educators working with motor control, load simulation, and dynamometer applications.
Key Features & Benefits:
-
Comprehensive 3-in-1 Display: Simultaneously shows torque (N.m), rotational speed (rpm), and power (W) on three clear red LED displays.
-
Precise Torque Measurement: Displays torque from 0~±5.00Nm with high resolution.
-
Wide Speed Range: Measures rotational speed from 0~9999rpm.
-
Power Display: Shows power output from 0~5235W.
-
Dedicated Compatibility: Specifically designed to work with the MCP TSP-5S dynamic torque sensor.
-
Reliable Operation: Operates on a 24VDC output voltage.
-
User-Friendly Controls: Features HOLD and CLEAR buttons for data management, an ON/OFF switch, and a red power indicator light.
-
Compact Design: Benchtop-friendly dimensions of 170 x 135 x 70 mm.
-

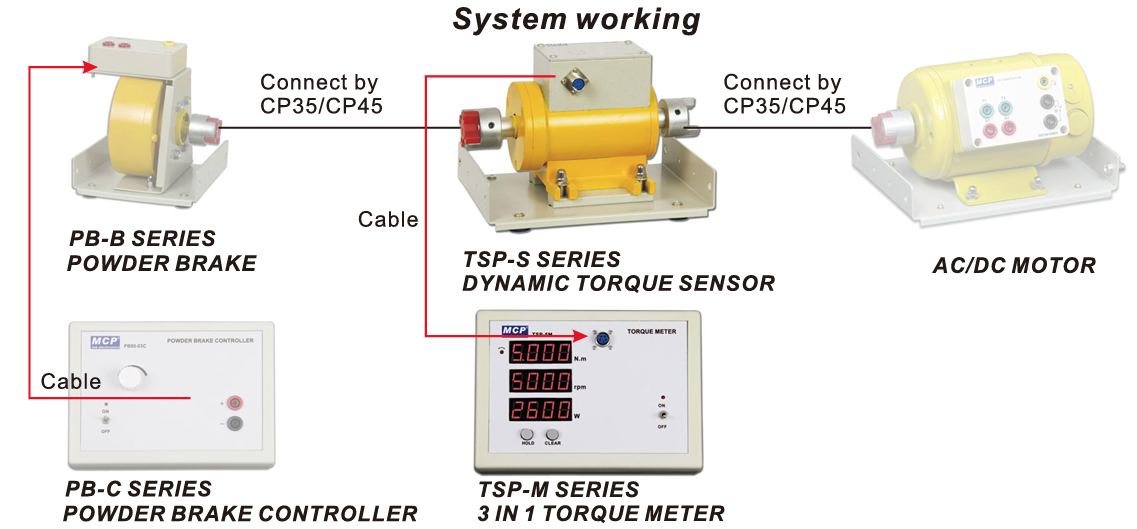

Part of a Versatile Series: The TSP-M Series includes models for TSP-10S, TSP-15S, and TSP-30S sensors with corresponding torque and power ranges.
