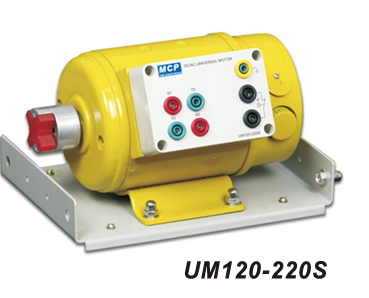

UM120-220S DC/AC UNIVERSAL MOTOR
BDT 35,092/-
Product Details
Brand: MCP
Model: UM120-220S
Country Of Origin: China
Main Advantages
Dual DC and AC operation
High-speed 4000rpm (DC) / 3000rpm (AC)
Universal motor for high starting torque
Compact and robust construction
Easy wiring with labeled terminals
Reliable 123W output
Suitable for education and research
| Motor Type: | DC/AC Universal Motor |
| Armature & Excitation Voltage: | 220VDC/AC |
| Max. Armature & Excitation Current: | 0.9A |
| Max. Output Power: 1 | 23W |
| Max. Rotate Speed: | 4000rpm (DC) / 3000rpm (AC) |
| Shaft Height: | 63mm |
| Dimensions: | 230 x 130 x 150 mm |
The MCP UM120-220S DC/AC Universal Motor is a versatile, high-performance motor designed to operate on both DC and AC power supplies. Ideal for industrial, commercial, and educational applications, it features universal motor construction, providing high starting torque and reliable operation across a wide range of voltages. The UM120-220S operates on an armature and excitation voltage of 220VDC/AC, with a maximum armature and excitation current of 0.9A. It delivers a maximum output power of 123W and achieves high rotate speeds of 4000rpm on DC and 3000rpm on AC. The motor features a 63mm shaft height and compact dimensions of 230 x 130 x 150 mm, with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward wiring.
MCP UM120-220S DC/AC Universal Motor – 123W, 4000/3000rpm, 220V
Power your equipment with versatility and high-speed performance using the MCP UM120-220S, a DC/AC universal motor designed for reliable operation on both power types. Ideal for industrial, commercial, and educational applications, this motor combines universal motor construction with a compact, durable design.
Key Features & Benefits:
-
Dual Power Capability: Operates on both 220VDC and 220VAC, providing flexibility for a wide range of applications.
-
High-Speed Performance: Delivers a maximum output power of 123W with high rotate speeds of 4000rpm (DC) and 3000rpm (AC).
-
Universal Motor Design: Provides high starting torque and reliable operation under varying loads.
-
Reliable Output: Maximum armature and excitation current of 0.9A.
-
Compact & Robust Design: Features a 63mm shaft height and dimensions of 230 x 130 x 150 mm, suitable for space-constrained applications.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
