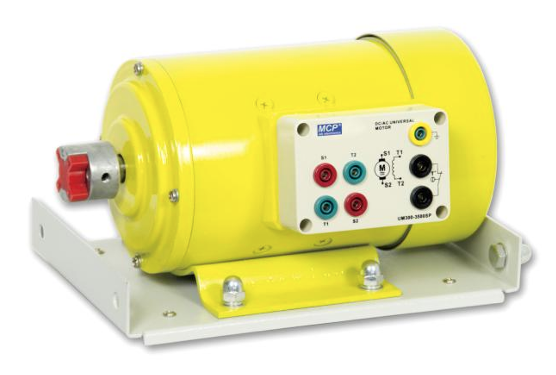

UM300-3500SP DC/AC UNIVERSAL MOTOR
BDT 48,251/-
Product Details
Brand: MCP
Model: UM300-3500SP
Country Of Origin: China
Main Advantages
Dual DC and AC operation
High-speed 3500/3700rpm performance
Universal motor for high starting torque
Powerful 300W output
Durable and heavy-duty construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | DC/AC Universal Motor |
| Armature & Excitation Voltage: | 220VDC/AC |
| Max. Armature & Excitation Current: | DC 2.0A, AC 3.9A |
| Max. Output Power: | 300W |
| Max. Rotate Speed: | 3500rpm (DC) / 3700rpm (AC) |
| Shaft Height: | 75mm |
| Dimensions: | 280 x 180 (200) x 150 mm |
| Weight: | 12kg |
The MCP UM300-3500SP DC/AC Universal Motor is a powerful, high-speed motor designed to operate on both DC and AC power supplies. Ideal for industrial, commercial, and educational applications, it features universal motor construction, providing high starting torque and reliable operation across a wide range of voltages. The UM300-3500SP operates on an armature and excitation voltage of 220VDC/AC, with a maximum current of 2.0A (DC) and 3.9A (AC). It delivers a maximum output power of 300W and achieves high rotate speeds of 3500rpm (DC) and 3700rpm (AC). The motor features a 75mm shaft height and dimensions of 280 x 180 (200) x 150 mm, weighing 12kg, with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward wiring.
MCP UM300-3500SP DC/AC Universal Motor – 300W, 3500/3700rpm, 220V
Power your equipment with high-speed versatility using the MCP UM300-3500SP, a DC/AC universal motor designed for reliable operation on both power types. Ideal for industrial, commercial, and educational applications, this motor combines universal motor construction with a robust, heavy-duty design.
Key Features & Benefits:
-
Dual Power Capability: Operates on both 220VDC and 220VAC, providing flexibility for a wide range of applications.
-
High-Speed Performance: Delivers a maximum output power of 300W with high rotate speeds of 3500rpm (DC) and 3700rpm (AC).
-
Universal Motor Design: Provides high starting torque and reliable operation under varying loads.
-
Reliable Output: Maximum armature and excitation current of 2.0A (DC) and 3.9A (AC).
-
Robust & Heavy-Duty Design: Features a 75mm shaft height, dimensions of 280 x 180 (200) x 150 mm, and a weight of 12kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
