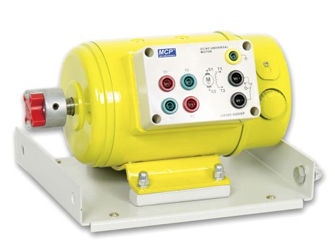

UM300-6000SP DC/AC UNIVERSAL MOTOR
BDT 39,116/-
Product Details
Brand: MCP
Model: UM300-6000SP
Country Of Origin: China
Main Advantages
Ultra-high-speed 6000rpm (DC)
Dual DC and AC operation
Universal motor for high starting torque
Powerful 300W DC / 200W AC output
Compact and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | DC/AC Universal Motor |
| Armature & Excitation Voltage: | 220VDC/AC |
| Max. Armature & Excitation Current: | DC 3.7A, AC 6.5A |
| Max. Output Power: | 300W DC / 200W AC |
| Max. Rotate Speed: | 6000rpm (DC) |
| Shaft Height: | 75mm |
| Dimensions: | 240 x 180 (190) x 140 mm |
| Weight: | 8kg |
The MCP UM300-6000SP DC/AC Universal Motor is an ultra-high-speed motor designed to operate on both DC and AC power supplies. Ideal for industrial, commercial, and educational applications, it features universal motor construction, providing high starting torque and reliable operation. The UM300-6000SP operates on an armature and excitation voltage of 220VDC/AC, with a maximum current of 3.7A (DC) and 6.5A (AC). It delivers a maximum output power of 300W (DC) or 200W (AC) and achieves an exceptional maximum rotate speed of 6000rpm on DC. The motor features a 75mm shaft height and compact dimensions of 240 x 180 (190) x 140 mm, weighing 8kg, with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward wiring.
MCP UM300-6000SP DC/AC Universal Motor – 300W, 6000rpm, 220V
Power your equipment with ultra-high-speed versatility using the MCP UM300-6000SP, a DC/AC universal motor designed for reliable operation on both power types. Ideal for industrial, commercial, and educational applications, this motor combines universal motor construction with a compact, durable design.
Key Features & Benefits:
-
Ultra-High-Speed Performance: Achieves an exceptional maximum rotate speed of 6000rpm on DC.
-
Dual Power Capability: Operates on both 220VDC and 220VAC, providing flexibility for a wide range of applications.
-
Powerful Output: Delivers a maximum output power of 300W (DC) or 200W (AC).
-
Universal Motor Design: Provides high starting torque and reliable operation under varying loads.
-
Reliable Current Handling: Maximum armature and excitation current of 3.7A (DC) and 6.5A (AC).
-
Compact & Robust Design: Features a 75mm shaft height and dimensions of 240 x 180 (190) x 140 mm, weighing 8kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
