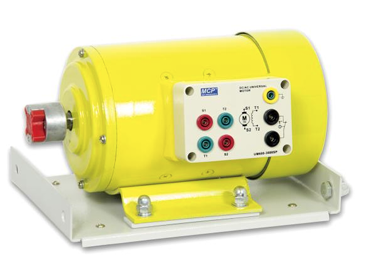

UM600-3000SP DC/AC UNIVERSAL MOTOR
BDT 48,251/-
Product Details
Brand: MCP
Model: UM600-3000SP
Country Of Origin: China
Main Advantages
Dual DC and AC operationHigh-speed 3000rpm performance
Universal motor for high starting torque
Powerful 550W output
Durable and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | DC/AC Universal Motor |
| Armature & Excitation Voltage: | 220VDC/AC |
| Max. Armature & Excitation Current: | DC 3.7A, AC 6.5A |
| Max. Output Power: | 550W |
| Max. Rotate Speed: | 3000rpm |
| Shaft Height: | 80mm |
| Dimensions: | 280 x 180 (200) x 150 mm |
| Weight: | 12.5kg |
The MCP UM600-3000SP DC/AC Universal Motor is a powerful, high-speed motor designed to operate on both DC and AC power supplies. Ideal for industrial, commercial, and educational applications, it features universal motor construction, providing high starting torque and reliable operation across a wide range of voltages. The UM600-3000SP operates on an armature and excitation voltage of 220VDC/AC, with a maximum current of 3.7A (DC) and 6.5A (AC). It delivers a maximum output power of 550W and achieves a high maximum rotate speed of 3000rpm. The motor features an 80mm shaft height and dimensions of 280 x 180 (200) x 150 mm, weighing 12.5kg, with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward wiring.
MCP UM600-3000SP DC/AC Universal Motor – 550W, 3000rpm, 220V
Power your equipment with high-speed versatility using the MCP UM600-3000SP, a DC/AC universal motor designed for reliable operation on both power types. Ideal for industrial, commercial, and educational applications, this motor combines universal motor construction with a robust, heavy-duty design.
Key Features & Benefits:
-
Dual Power Capability: Operates on both 220VDC and 220VAC, providing flexibility for a wide range of applications.
-
High-Speed Performance: Delivers a maximum output power of 550W with a high rotate speed of 3000rpm.
-
Universal Motor Design: Provides high starting torque and reliable operation under varying loads.
-
Reliable Output: Maximum armature and excitation current of 3.7A (DC) and 6.5A (AC).
-
Robust & Heavy-Duty Design: Features an 80mm shaft height, dimensions of 280 x 180 (200) x 150 mm, and a weight of 12.5kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, E1, E2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
