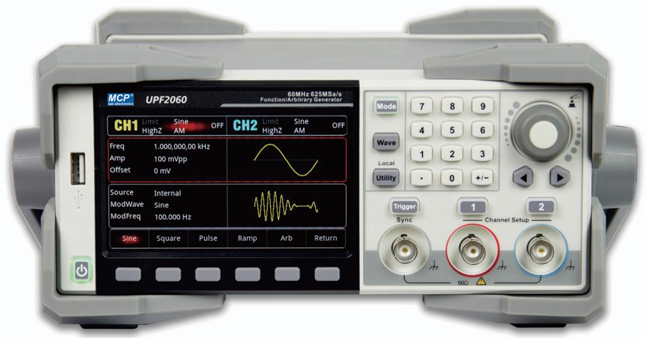

UPF2060 DDS FUNCTION (ARBITRARY) GENERATOR
BDT 86,982/-
Product Details
Brand: MCP
Model: UPF2060
Country Of Origin: China
Features
-
Dual-channel output, max sine frequency up to 120MHz
-
Sampling rate: 625MSa/s (1.25GSa/s with interpolation)
-
Vertical resolution: 16 bits
-
Multiple modulation types: AM, FM, PM, DSB-AM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM
-
Square wave up to 50MHz with low jitter
-
Harmonic distortion minimized for clean signals
-
Frequency sweep and burst modes supported
-
Channel copy, follow, and stack functions
-
Built-in 7-digit frequency counter
-
Interfaces: USB Host/Device, LAN, SCPI programmable
-
4.3-inch TFT LCD capacitive touchscreen

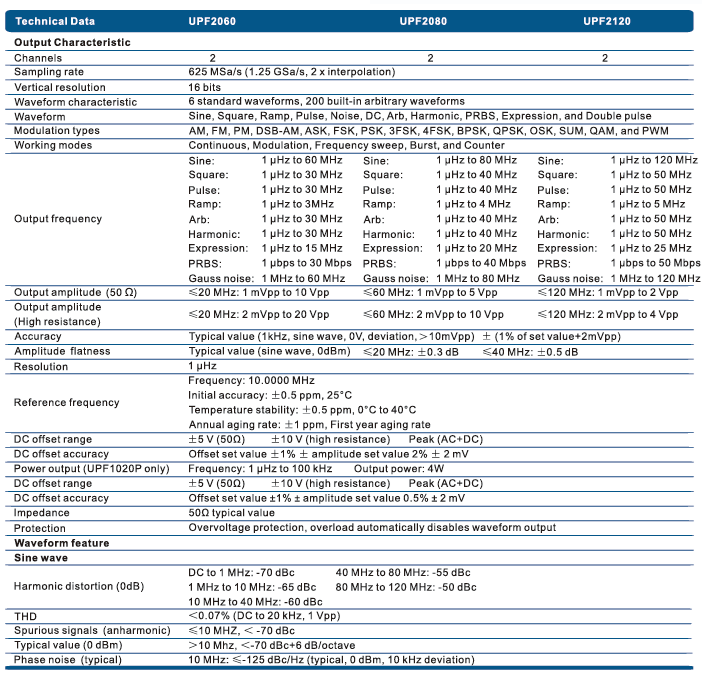

Technical Data (Highlights)
| Specification | UPF2060 | UPF2080 | UPF2120 |
|---|---|---|---|
| Channels | 2 | 2 | 2 |
| Max Sine Frequency | 60MHz | 80MHz | 120MHz |
| Max Square Frequency | 30MHz | 40MHz | 50MHz |
| Max Pulse Frequency | 30MHz | 40MHz | 50MHz |
| Max Arb Frequency | 30MHz | 40MHz | 50MHz |
| Sampling Rate | 625MSa/s (1.25GSa/s interpolated) | Same | Same |
| Vertical Resolution | 16 bits | Same | Same |
| Built-in Arbitrary Waveforms | 200 | Same | Same |
| Harmonic Distortion | –70dBc (≤1MHz), –65dBc (≤10MHz), –60dBc (≤40MHz), –55dBc (≤80MHz), –50dBc (≤120MHz) | Same | Same |
| THD | <0.07% (DC–20kHz, 1Vpp) | Same | Same |
| Phase Noise | ≤–125dBc/Hz (typical, 1kHz offset) | Same | Same |
| Rise/Fall Time | <7ns | <6ns | <5ns |
| Duty Ratio | 0.0001%–100% | Same | Same |
| Arbitrary Wave Length | Up to 64Mpts (single channel) | Same | Same |
| Storage | 200 waves | Same | Same |
| Interfaces | USB Host/Device, LAN | Same | Same |
| Dimensions | 215×103×316mm | Same | Same |
| Weight | 2.5kg | Same | Same |
| Channels | 2 |
| Max Sine Frequency | 60MHz |
| Max Square Frequency | 30MHz |
| Max Pulse Frequency | 30MHz |
| Max Arb Frequency | 30MHz |
| Sampling Rate | 625MSa/s (1.25GSa/s interpolated) |
| Vertical Resolution | 16 bits |
| Built-in Arbitrary Waveforms | 200 |
| Harmonic Distortion | –70dBc (≤1MHz), –65dBc (≤10MHz), –60dBc (≤40MHz), –55dBc (≤80MHz), –50dBc (≤120MHz) |
| THD | <0.07% (DC–20kHz, 1Vpp) |
| Phase Noise | ≤–125dBc/Hz (typical, 1kHz offset) |
| Rise/Fall Time | <7ns |
| Duty Ratio | 0.0001%–100% |
| Arbitrary Wave Length | Up to 64Mpts (single channel) |
| Storage | 200 waves |
| Interfaces | USB Host/Device, LAN |
| Dimensions | 215×103×316mm |
| Weight | 2.5kg |
Features
-
Dual-channel output, max sine frequency up to 120MHz
-
Sampling rate: 625MSa/s (1.25GSa/s with interpolation)
-
Vertical resolution: 16 bits
-
Multiple modulation types: AM, FM, PM, DSB-AM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM
-
Square wave up to 50MHz with low jitter
-
Harmonic distortion minimized for clean signals
-
Frequency sweep and burst modes supported
-
Channel copy, follow, and stack functions
-
Built-in 7-digit frequency counter
-
Interfaces: USB Host/Device, LAN, SCPI programmable
-
4.3-inch TFT LCD capacitive touchscreen
Technical Data (Highlights)
| Specification | UPF2060 | UPF2080 | UPF2120 |
|---|---|---|---|
| Channels | 2 | 2 | 2 |
| Max Sine Frequency | 60MHz | 80MHz | 120MHz |
| Max Square Frequency | 30MHz | 40MHz | 50MHz |
| Max Pulse Frequency | 30MHz | 40MHz | 50MHz |
| Max Arb Frequency | 30MHz | 40MHz | 50MHz |
| Sampling Rate | 625MSa/s (1.25GSa/s interpolated) | Same | Same |
| Vertical Resolution | 16 bits | Same | Same |
| Built-in Arbitrary Waveforms | 200 | Same | Same |
| Harmonic Distortion | –70dBc (≤1MHz), –65dBc (≤10MHz), –60dBc (≤40MHz), –55dBc (≤80MHz), –50dBc (≤120MHz) | Same | Same |
| THD | <0.07% (DC–20kHz, 1Vpp) | Same | Same |
| Phase Noise | ≤–125dBc/Hz (typical, 1kHz offset) | Same | Same |
| Rise/Fall Time | <7ns | <6ns | <5ns |
| Duty Ratio | 0.0001%–100% | Same | Same |
| Arbitrary Wave Length | Up to 64Mpts (single channel) | Same | Same |
| Storage | 200 waves | Same | Same |
| Interfaces | USB Host/Device, LAN | Same | Same |
| Dimensions | 215×103×316mm | Same | Same |
| Weight | 2.5kg | Same | Same |
The UPF2000 Series DDS Arbitrary Function Generators deliver high-performance waveform generation with dual channels, 16-bit resolution, and sampling rates up to 625MSa/s. Available in 60MHz, 80MHz, and 120MHz models, these instruments support a wide range of modulation types including AM, FM, PM, ASK, FSK, PSK, QAM, and PWM. With advanced sweep and burst modes, harmonic distortion suppression, and a built-in frequency counter, the UPF2000 Series is ideal for precision testing in laboratories, R&D, and communication system development. Compact yet powerful, they feature USB/LAN connectivity and a 4.3-inch touchscreen for intuitive operation.
