V SHAPE VERNIER CALIPER
BDT 18,200/-
Product Details
Brand: INSIZE
Model: 1273-403
Country Of Origin: China
Features:
Measure outside diameter of three number of flutes (such as taps, reamers, end mills and gears)
Made of stainless steel
Satin chrome plated reading surface
| Type: | V Shape Vernier Caliper |
| Range: | Ø4-40mm |
| Graduation: | 0.05mm |
| Accuracy: | ±0.05mm |
| Jaw Angle: | 60° (for 3 flutes) |
| Material: | Stainless Steel |
| Finish: | Satin Chrome Plated |
| Dimensions (Overall Length / Jaw Height): | 230mm / 63mm |

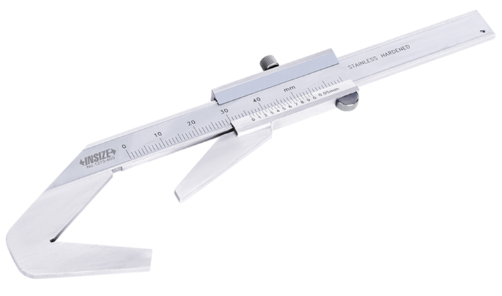

The INSIZE 1273-403 V Shape Vernier Caliper is a specialized precision measuring instrument designed to accurately measure the outside diameter of tools with an odd number of flutes, specifically 3-flute tools like taps, reamers, end mills, and gears. Featuring a 60° V-shaped jaw, it securely centers the workpiece for reliable measurement across a range of Ø4-40mm. Made of durable stainless steel with a satin chrome plated reading surface for glare-free readability, this analog caliper offers a graduation of 0.05mm and an accuracy of ±0.05mm. It is an essential tool for machinists, toolmakers, and quality control professionals.
INSIZE 1273-403 V Shape Vernier Caliper – Precision Measurement for 3-Flute Tools
Measure the outside diameter of odd-fluted cutting tools with confidence using the INSIZE 1273-403 V Shape Vernier Caliper. Designed specifically for machinists, toolmakers, and quality control inspectors, this specialized caliper solves the challenge of measuring 3-flute tools like taps, reamers, and end mills.
Key Features & Benefits:
-
Odd Flute Measurement: The 60° V-shaped jaws allow for precise measurement of the outside diameter of tools with 3 flutes by perfectly centering the tool in the V-groove.
-
High Precision: Features a graduation of 0.05mm and an accuracy of ±0.05mm for reliable readings.
-
Durable Construction: Made of high-quality stainless steel to withstand demanding machine shop environments.
-
Clear Reading: The satin chrome plated reading surface reduces glare, making the vernier scale easy to read.
-
Wide Range: Accurately measures tools with diameters from Ø4mm to Ø40mm.
-
Analog Operation: Requires no batteries and is immune to electromagnetic interference.
