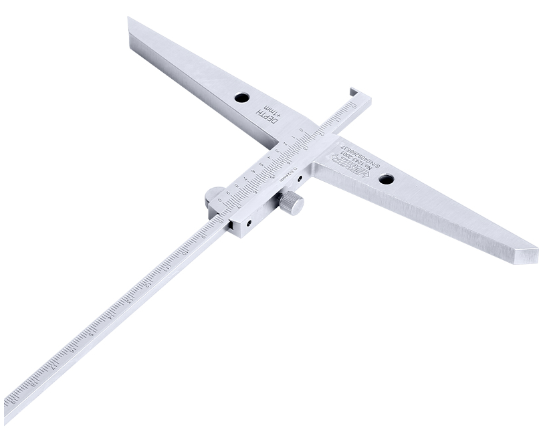

VERNIER HOOK DEPTH GAGE
BDT 33,824/-
Product Details
Brand: INSIZE
Model: 1243-2001
Country Of Origin: China
Features:
Graduation 0.02mm
Made of stainless steel
Satin chrome plating finish on reading surface
| Type: | Vernier Hook Depth Gauge |
| Range: | 0-200mm |
| Graduation: | 0.02mm |
| Accuracy: | ±0.04mm |
| Material: | Stainless steel |
| Finish: | Satin chrome plated reading surface |
| Dimensions (Overall Length): | 290mm |
The INSIZE 1243-2001 Vernier Hook Depth Gauge is a specialized analog precision measuring instrument designed for accurately measuring the depth of internal grooves, recesses, and bores. Unlike standard depth gauges, it features a specialized hook-shaped base (200mm height) that allows the user to hook onto internal ledges or undercuts to measure depths that are otherwise difficult to access. Made of durable stainless steel with a satin chrome plated reading surface for glare-free readability, it offers a measuring range of 0-200mm with a fine graduation of 0.02mm and an accuracy of ±0.04mm. It is an essential tool for machinists, toolmakers, and quality control inspectors working with complex machined parts.
INSIZE 1243-2001 Vernier Hook Depth Gauge – Precision Internal Groove Measurement
Measure the depth of internal grooves, recesses, and bores with precision using the INSIZE 1243-2001 Vernier Hook Depth Gauge. Designed for machinists, toolmakers, and quality control professionals, this specialized analog gauge features a unique hook-shaped base that allows for accurate measurement of features that standard depth gauges cannot reach.
Key Features & Benefits:
-
Specialized Hook Design: The 200mm hook base allows the user to engage internal undercuts, grooves, and ledges to measure their depth accurately.
-
High Precision: Features a fine graduation of 0.02mm and an accuracy of ±0.04mm for reliable, repeatable measurements.
-
Durable Construction: Made of high-quality stainless steel to withstand the rigors of a machine shop environment.
-
Glare-Free Reading: The satin chrome plated reading surface ensures clear, easy-to-read measurements.
-
Analog Operation: Requires no batteries and is immune to electromagnetic interference, ensuring reliable performance anywhere.
-
Versatile Application: Ideal for measuring internal grooves in hydraulic cylinders, engine blocks, and complex machined components.
