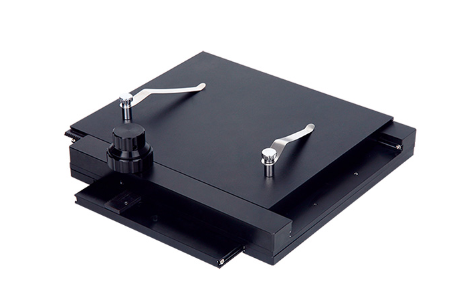

X-Y Metal Stage
BDT 37,657/-
Product Details
Brand: INSIZE
Model: ISM-DL-STAGE1
Country Of Origin: China
Features:
Precise Mechanical Positioning: Smooth X-Y travel range of 100×86mm for accurate sample movement.
Broad Compatibility: Designed to fit a wide variety of INSIZE digital microscope models.
Durable Construction: Built from sturdy metal for long-lasting stability.
Compact Footprint: Measures only 180×180×50mm, easily integrating into existing microscope setups.
User-Friendly Control: Equipped with dedicated moving knobs for fine, tactile adjustments.
Suitable for digital microscopes 5301-D400, 5303-AF103, 5310-DL401, 5313-S407, 5315-S710, 5318-MD60-XY, 5324-K210, ISM-DL300, ISM-DL301, ISM-DL302, ISM-DL520
| X-Y Travel Range: | 100Ã86mm |
| Dimensions (LÃWÃH): | 180Ã180Ã50mm |
| Weight: | 2.3kg |
| Material: | Metal |
The INSIZE ISM-DL-STAGE1 X-Y Metal Stage is a precision-engineered accessory designed to provide accurate and repeatable positioning for a wide range of INSIZE digital microscopes. Constructed from durable metal, it features smooth-operating moving knobs that allow operators to effortlessly pan and scan across a workpiece along both the X and Y axes.
With a generous travel range of 100×86mm, it significantly enhances the measurement capabilities of compatible microscope models (such as the 5301-D400, 5310-DL401, 5318-MD60-XY, and ISM-DL series). This stage is an essential addition for quality control and metrology tasks that require precise, mechanical movement of the sample rather than manual repositioning, ensuring highly accurate and repeatable measurements.
INSIZE ISM-DL-STAGE1 X-Y Metal Stage – Precision Positioning for Digital Microscopes
Enhance the measurement capabilities of your digital microscope with the INSIZE ISM-DL-STAGE1 X-Y Metal Stage. Designed for quality control labs, manufacturing floors, and metrology applications, this precision accessory provides accurate, repeatable, and smooth mechanical movement for inspecting small to medium-sized workpieces.
Key Features & Benefits:
-
Precision X-Y Movement: Features a 100×86mm travel range with dedicated moving knobs, allowing operators to accurately scan and measure across a sample without touching or repositioning the part by hand.
-
Wide Compatibility: This stage is specifically engineered to fit a broad array of popular INSIZE digital microscopes, including the 5301-D400, 5303-AF103, 5310-DL401, 5313-S407, 5315-S710, 5318-MD60-XY, 5324-K210, ISM-DL300, ISM-DL301, ISM-DL302, and ISM-DL520.
-
Sturdy Metal Construction: Built from high-quality metal to ensure maximum stability and rigidity, minimizing vibrations during precise measurements.
-
Compact & Lightweight: Weighing only 2.3kg with a footprint of 180×180×50mm, it easily integrates into your existing setup without adding significant bulk.
-
Improved Workflow: Mechanically moving the sample on a fixed stage is far more accurate and efficient than manually sliding parts, ensuring repeatable data collection.
