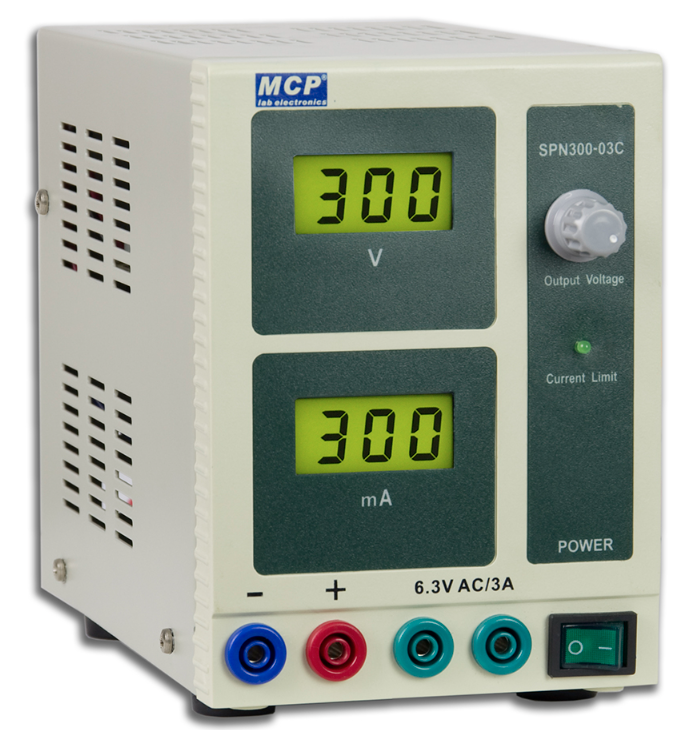

300V Adjustable DC Power Supply SPN300‑03C
BDT 13,570/-
Product Details
Brand: MCP
Model: SPN300‑03C
Country Of Origin: China
Feature:
-
Output voltage: 0 ~ 300V
-
Output current: 300mA
-
Load regulation: 30mV
-
Line regulation: 30mV
-
Ripple: 50mV
-
Display: 3‑digit LCD with backlight
-
Protection: Over current
-
Input voltage: 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz
| Output voltage: | 0 ~ 300V |
| Output current: | 300mA |
| Load regulation: | 30mV |
| Line regulation: | 30mV |
| Ripple: | 50mV |
| Display: | 3‑digit LCD with backlight |
| Protection: | Over current |
| Input voltage: | 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz |
| Dimensions: | 108 (W) × 154 (H) × 240 (D) mm |
| Weight: | 5kg |
What is this
This is a variable high voltage DC power supply. It provides an adjustable DC output from 0 to 300 V with a maximum output current of 300 mA.
How is it used
Set the required output voltage and connect the output to the circuit or component being tested. The LCD displays the output value.
The over current protection helps protect the power supply when the connected load draws excessive current.
Where is it used
It is mainly used in:
Electronics laboratories
High voltage circuit testing
Electronic component testing
Power supply and circuit development
Educational and training laboratories
Research and development
Electronic equipment testing and troubleshooting
Its main purpose is to provide a controlled high voltage DC supply for testing and developing electronic circuits and components.
The SPN300‑03C Adjustable DC Power Supply is a high‑voltage precision instrument designed for laboratories, education, and testing environments. It delivers an output voltage range of 0 ~ 300V with a stable 300mA current capacity, making it suitable for advanced circuit experiments and industrial training applications. With excellent regulation (30mV line and load), low ripple (50mV), and a clear 3‑digit LCD display with backlight, it ensures accurate and stable performance. Built with over‑current protection and dual input voltage compatibility (220–240VAC or 110–127VAC), the SPN300‑03C is versatile and dependable. Compact yet robust at 5kg, it is ideal for engineers, educators, and hobbyists requiring precise adjustable high‑voltage DC power for testing and development.
