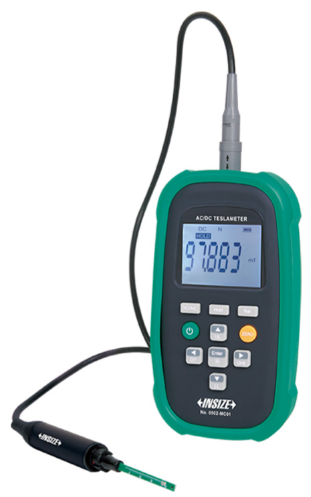

AC/DC TESLAMETERS
BDT 155,625/-
Product Details
Brand: INSIZE
Model: 0502-MC01
Country Of Origin: China
Features:
Switch between DC or AC measurement mode.
Display N/S polarity of DC magnetic field.
Zero function: eliminate the influence of zero drift before measurement.
Maximum value hold: record the maximum value of the changing magnetic field.
Auto ranging.
Relative measurement mode.
Set upper and lower alarm limit.
Built-in USB interface for data transmission.
Display with backlight.
Auto power off.
| Probe type* | radial probe |
| Range | 2500mT |
| Resolution |
0.001mT (<30mT) 0.01mT (30~300mT) 0.1mT (300~2500mT) |
| Unit | mT, G, Oe, kA/m (1mT=10G=10Oe=0.8kA/m) |
| Accuracy |
DC: ±1.0% AC: ±5.0% |
| Frequency range | DC, 40~500Hz |
| Temperature coefficient | ±0.1%/K |
| Zero drift | ±0.1mT/h |
| Interface | USB |
| Operation environment | temperature: 0°C~45°C; humidity: 20%~80%RH, non-condensing |
| Storage environment | temperature: -20°C~70°C; humidity: <85%RH, non-condensing |
| Power supply | 3×1.5V AA batteries or USB |
| Dimensions (L×W×H) | 165×90×40mm |
| Net weight | 350g |
The Insize 0502 Series AC/DC Teslameters are advanced instruments designed for precise measurement of both AC and DC magnetic fields. Available in four models (0502-MC01, MC01K, MC02, MC02K) with either radial or axial probes, they offer a wide 2500mT range with exceptional resolution down to 0.001mT. The radial probe models are ideal for measuring surface magnetic field density of permanent magnets and DC constant magnetic fields, while axial probe models are suited for solenoids, toroidal coils, and surface magnetic distribution scanning.
These teslameters allow users to switch between DC and AC measurement modes, display N/S polarity of DC magnetic fields, and utilize a zero function to eliminate zero drift before measurement. Additional features include maximum value hold, auto ranging, relative measurement mode, and settable upper and lower alarm limits. The instruments support four units (mT, G, Oe, kA/m) and offer DC accuracy of ±1.0% (MC01/MC01K) or ±2.0% (MC02/MC02K), with AC accuracy of ±5.0% across a frequency range of 40~500Hz. Data can be transmitted via the built-in USB interface, and the backlit display ensures clear readings in various lighting conditions. Powered by three 1.5V AA batteries or USB, the units measure 165×90×40mm and weigh 350g, with an auto power-off function to conserve battery life.
Versatile AC/DC Magnetic Field Measurement with the Insize 0502 Series Teslameters
Measure both AC and DC magnetic fields with precision using the Insize 0502 Series AC/DC Teslameters. Available in four models with radial or axial probes, these advanced instruments offer a wide 2500mT range and high resolution, making them ideal for permanent magnet testing, solenoid and coil measurement, and surface magnetic distribution scanning. With switchable DC/AC modes, multiple units, and USB data output, they are the ultimate tool for magnetic field analysis.
Key Features and Benefits:
-
Four Model Options: Choose from 0502-MC01, MC01K (radial/axial, ±1.0% DC accuracy) or 0502-MC02, MC02K (radial/axial, ±2.0% DC accuracy).
-
Wide Measurement Range: Measures up to 2500mT with high resolution of 0.001mT (<30mT), 0.01mT (30~300mT), and 0.1mT (300~2500mT).
-
AC/DC Switchable: Toggle between DC and AC measurement modes with a frequency range of 40~500Hz.
-
Direct Polarity Display: Shows N/S polarity of DC magnetic fields.
-
Comprehensive Functions: Includes zero function, maximum value hold, auto ranging, relative measurement mode, and upper/lower alarm limits.
-
Multiple Units: Displays in mT, G, Oe, and kA/m (1mT=10G=10Oe=0.8kA/m).
-
Data Transmission: Built-in USB interface for easy data transfer.
-
User-Friendly Features: Backlit display and auto power-off to conserve battery life.
-
Flexible Power: Operates on 3×1.5V AA batteries or USB power.
