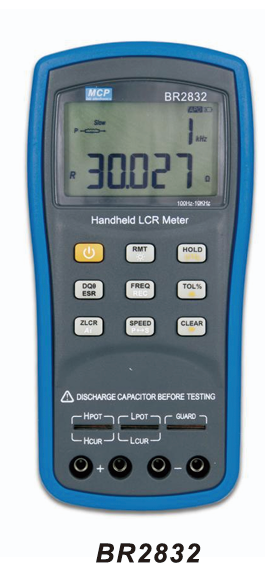

BR2832 PORTABLE LCR METER
BDT 24,203/-
Product Details
Brand: MCP
Model: BR2832
Country Of Origin: China
Features:
Hand-held and low consumption
4 bins comparator
Primary and secondary parameters dual display
0.1% Max. accuracy, resolution 0.0001
Auto power off function
| Test Parameters: | L, C, D, R, |Z|, Q, θ, ESR |
| Test frequencies | 100Hz, 120Hz, 1kHz, 10kHz |
| Test level | 0.6Vrms |
| Max. test accuracy | 0.1% |
| Output impedance | 100Ω |
| Measurement range L |
100 / 120Hz: 1 µH ~ 1000H 1kHz: 0.1 µH ~ 100H 10kHz: 0.001 µH ~ 100 H |
| Measurement range C |
100 / 120Hz: 1p ~ 20mF 1kHz: 0.1p ~ 1000 µF 10kHz: 0.01p ~ 100 µF |
| Measurement range R, |Z| | 0.0001Ω ~ 10MΩ |
| Measurement range D | 0.0001 ~ 9.999 |
| Measurement range Q | 0.0001 ~ 9.999 |
| Measurement range θ | -179.9% ~ 179.9% |
| Measurement range ESR | 0.0001Ω ~ 999.9Ω |
| Display | 40000 counts |
| Display resolution | 0.0001 |
| Measurement speed | 10 times/sec (fast), 5 times/sec (middle), 2 times/sec (slow |
| Equivalent circuit | Series / parallel |
| Ranging mode | Auto / hold |
| Range selecting | Auto |
| Tolerance mode | 1%, 5%, 10%, 20% |
| Correction function | Open and short multi-frequency Zeroing |
| Measurement terminals | Five terminals/three terminals |
| Input protection fuse | 0.1A/63V |
| Battery model | 7.2V Ni-MH 600mAH rechargeable battery |
| AC adapter |
Input: 230V ± 10%, 50Hz ± 5% Output: 12V~15VDC |
| Operating current | Max. 28mA |
| Auto power off | 5min, 15min, 30min, 60min selectable |
| Dimensions | (W×H×D) 95mm × 200mm × 45mm |
| Weight | 460g (with battery) |
The MCP BR2831/BR2832/BR2833 Portable LCR Meter is a handheld, high-precision testing instrument designed for comprehensive component analysis. It offers a wide range of test parameters including L, C, D, R, |Z|, Q, θ, and ESR, making it ideal for engineers, technicians, and hobbyists working with electronic components. The meter features a dual display for primary and secondary parameters, a 40000-count resolution, and an exceptional max accuracy of 0.1% with a resolution of 0.0001. Choose from three models with varying test frequencies: the BR2831 (up to 1kHz), BR2832 (up to 10kHz), and BR2833 (up to 100kHz). Key features include a 4-bin comparator, auto-ranging, selectable tolerance modes (1%, 5%, 10%, 20%), and open/short multi-frequency zeroing correction. The device is powered by a 7.2V Ni-MH rechargeable battery (with an AC adapter option) and features a selectable auto power-off (5/15/30/60 min). It measures 95 x 200 x 45 mm, weighs 460g, and comes with a durable handheld design.
MCP BR2831/BR2832/BR2833 Portable LCR Meter – High Precision Component Tester
Analyze electronic components with exceptional precision using the MCP BR2831/BR2832/BR2833, a professional-grade portable LCR meter designed for accuracy, versatility, and convenience. Ideal for engineers, technicians, and electronics enthusiasts, this handheld instrument delivers reliable measurements for a wide range of component parameters.
Key Features & Benefits:
-
Comprehensive Test Parameters: Measures L, C, D, R, |Z|, Q, θ, and ESR for complete component analysis.
-
Multiple Test Frequencies:
-
BR2831: 100Hz, 120Hz, 1kHz
-
BR2832: 100Hz, 120Hz, 1kHz, 10kHz
-
BR2833: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
-
-
High Accuracy & Resolution: 0.1% max accuracy with a display resolution of 0.0001 (40000 counts).
-
Dual Display: Shows primary and secondary parameters simultaneously.
-
Advanced Features: Includes a 4-bin comparator, auto-ranging, selectable tolerance modes (1%, 5%, 10%, 20%), and open/short multi-frequency zeroing.
-
Flexible Measurement: Selectable measurement speeds (fast, middle, slow) and series/parallel equivalent circuit modes.
-
Smart Power Management: Powered by a 7.2V Ni-MH rechargeable battery with selectable auto power-off (5/15/30/60 min) and low consumption.
-
Durable & Portable: Handheld design measuring 95 x 200 x 45 mm and weighing 460g.
