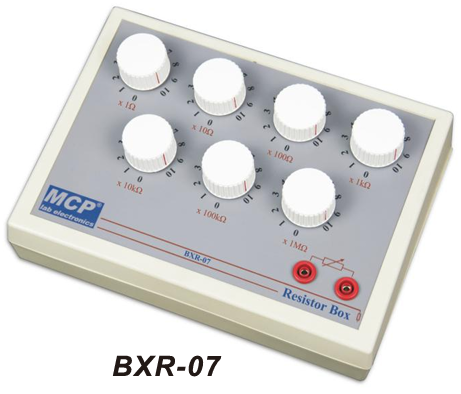

BXR-07 RESISTOR BOX
BDT 11,336/-
Product Details
Brand: MCP
Model: BXR-07
Country Of Origin: China
Features
-
High accuracy to 1%
-
Economical, high‑performance high resistance decade for all laboratory use
-
Plastic cabinet for better insulation
| Decade (1) Range / Max. Current | 1 Ω ~ 10 Ω 700 mA |
| Decade (2) Range / Max. Current | 10 Ω ~ 100 Ω 200 mA |
| Decade (3) Range / Max. Current | 100 Ω ~ 1 kΩ 70 mA |
| Decade (4) Range / Max. Current | 1 kΩ ~ 10 kΩ 20 mA |
| Decade (5) Range / Max. Current | 10 kΩ ~ 100 kΩ 7 mA |
| Decade (6) Range / Max. Current | 100 kΩ ~ 1 MΩ 1 mA |
| Decade (7) Range / Max. Current | 1 MΩ ~ 10 MΩ 0.11 mA |
| Dimensions (L×W×H) | 170 × 240 × 90 mm |
| Weight | 0.8 kg |
The BXR‑07 Resistor Box is a versatile tool for precise resistance calibration and selection in electrical experiments. Featuring seven decades with ranges from 1 Ω to 10 MΩ, it provides dependable results with 1% accuracy. The plastic cabinet ensures excellent insulation and safety, while its compact design makes it easy to use and transport. Widely adopted in schools, vocational colleges, and research labs, the BXR‑07 is an essential instrument for teaching resistance principles and supporting circuit design experiments.
The BXR‑07 Resistor Box is a precision laboratory instrument designed for resistance selection and calibration. With seven decades ranging from 1 Ω to 10 MΩ, it offers high accuracy within 1%. Housed in a durable plastic cabinet for insulation and safety, the BXR‑07 ensures reliable performance in experiments and testing. Compact yet powerful, it is ideal for schools, universities, and labs requiring precise resistance control for circuit design and analysis.
