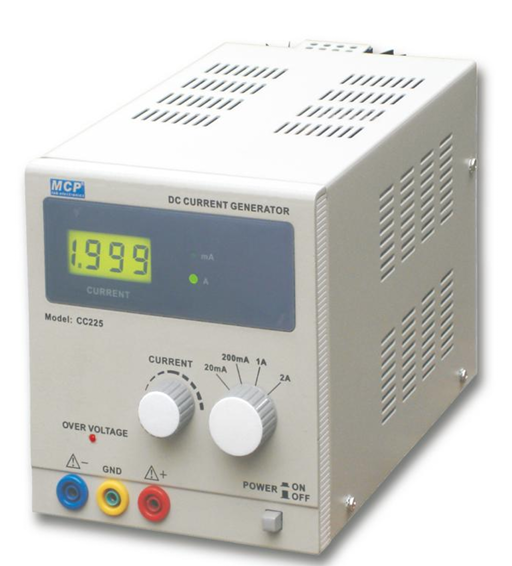

CC225 DC CURRENT GENERATOR
BDT 29,186/-
Product Details
Brand: MCP
Model: CC225
Country Of Origin: China
Features
-
Constant current output
-
Continuously adjustable
-
Short circuit and over voltage protection
-
3½‑digit LCD current meter
| Output current: | 0–2A (4 steps) |
| Maximum voltage: | 25V |
| Resolution: | 10 µA (0–20mA) 100 µA (20–100–200mA) 1mA (200mA–2A) |
| Load regulation: | 0.2% |
| Line regulation: | 0.2% |
| Display: | 3½‑digit LCD with backlight |
| Input voltage: | 110–127VAC ±10% 60Hz 220–240VAC ±10% 50Hz (switchable) |
| Dimensions: | 132(W) × 160(H) × 270(D) mm |
| Weight: | 4kg |
What it is
A laboratory constant-current source that delivers a continuously adjustable current from 0 to 2 A (in four ranges), with a maximum voltage of 25 V.
Purpose
To provide a stable and precisely controlled current for testing, driving, and characterizing electronic components and circuits that require constant-current operation.
Where to use it
Electronics laboratories and workshops
Component and circuit testing
Educational electronics experiments
Development and troubleshooting benches
How to use it
Select the appropriate current range (0–20 mA, 20–100 mA, 100–200 mA, or 200 mA–2 A).
Continuously adjust the output current within the selected range.
Connect the load — the unit maintains the set current with 0.2 % regulation.
Monitor the current on the 3½-digit backlit LCD display.
Built-in short-circuit and over-voltage protection keeps the supply and the circuit safe.
It is designed for laboratory and educational use where a reliable, higher-current (up to 2 A) constant-current source is required.
The CC225 Constant Current Source is a precision instrument designed for laboratory and industrial applications requiring stable current output. With continuously adjustable output up to 2A, fine resolution steps, and built‑in protections against short circuit and over voltage, it ensures safe and reliable operation. The 3½‑digit LCD display with backlight provides clear monitoring, while its compact design and switchable input voltage make it versatile for global use. Ideal for calibration, testing, and electronics research.
