CONDUCTIVITY METER
BDT 170,112/-
Product Details
Brand: INSIZE
Model: 0414-ED34
Country Of Origin: China
Features:
Equipped with rugged platinum-black conductivity electrode (K=1), rugged platinum-black coating, not only increases the surface area of the electrode and reduces the polarisation effect, but also improves the adhesion of the platinum-black to the metal, corrosion-resistant POM housing, built-in thermistor, automatic temperature compensation.
GLP data storage and management, USB data output.
1~4 points automatic calibration, with calibration guidance and automatic inspection function.
The meter can recognize conductivity standard solutions automatically.
Manual and automatic temperature compensation functions for more accurate measurement.
The meter can switch conductivity, TDS, salinity.
Equipped with flexible electrode holder, easy to operate with one hand.
| Conductivity: range |
(0.00~19.99)μS/cm, (20.0~199.9)μS/cm (200~1999)μS/cm, (2.00~19.99)mS/cm, (20.0~199.9)mS/cm |
| resolution | 0.01/0.1/1μS/cm, 0.01/0.1mS/cm |
| accuracy* | ±(1.0%FS+1d) |
| temperature compensation | 0°C~50°C (manual or automatic) |
| calibration mode | 1~4 points |
| electrode constant | 0.1/1/10cm⁻¹ |
| TDS: range | (0~100)g/L |
| resolution | 0.01/0.1/1mg/L, 0.01/0.1g/L |
| accuracy* | ±(1.0%FS+1d) |
| TDS conversion factor | 0.40~1.00 |
| Temperature: range | 0°C~100°C |
| resolution | 0.1°C |
| accuracy* | ±(0.5°C+1d) |
| Salinity: range | (0~100)ppt |
| Data storage | 200 groups of USB data |
| Standard solution | 84μS/cm, 1413μS/cm, 12.88mS/cm |
| Power supply | AC/DC adapter (9V) |
| Dimension (L×W×H) | 195×215×100mm |
| Weight | 950g |

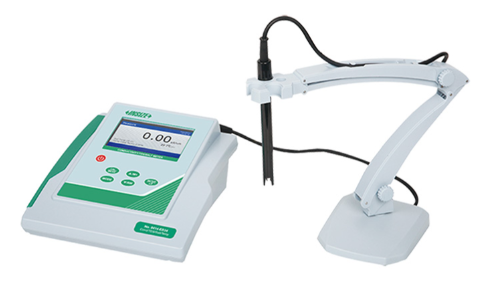

The Insize 0414-ED34 is a benchtop Conductivity Meter designed for laboratory-grade water quality analysis. It features a rugged platinum-black conductivity electrode (K=1) with a corrosion-resistant POM housing and built-in thermistor. The platinum-black coating increases the electrode's surface area, reduces polarization effects, and improves adhesion to the metal, ensuring long-term reliability. The meter measures conductivity across five ranges (0.00μS/cm to 199.9mS/cm), TDS (0~100g/L), salinity (0~100ppt), and temperature (0°C~100°C), providing comprehensive water analysis capabilities.
This advanced instrument offers 1~4 points automatic calibration with calibration guidance and automatic inspection, and automatically recognizes standard conductivity solutions (84μS/cm, 1413μS/cm, 12.88mS/cm). It supports both manual and automatic temperature compensation (0°C~50°C) for precise measurements and allows switching between conductivity, TDS, and salinity modes. The meter features GLP data storage and management with USB data output, storing up to 200 groups of data. It comes with a flexible electrode holder for one-handed operation, a large display, and is powered by a 9V AC/DC adapter. The unit measures 195×215×100mm and weighs 950g.
Laboratory-Grade Water Analysis with the Insize 0414-ED34 Conductivity Meter
Achieve precise and reliable water quality measurements with the Insize 0414-ED34 Benchtop Conductivity Meter. Designed for laboratory and industrial applications, this advanced instrument features a rugged platinum-black electrode and offers comprehensive measurement of conductivity, TDS, salinity, and temperature. With automatic calibration, standard solution recognition, and GLP data management, it is the ideal solution for water treatment, environmental monitoring, and chemical analysis.
Key Features and Benefits:
-
Rugged Platinum-Black Electrode: K=1 electrode with platinum-black coating for increased surface area, reduced polarization, and improved corrosion resistance.
-
Multi-Parameter Measurement: Measures conductivity (0.00μS/cm~199.9mS/cm), TDS (0~100g/L), salinity (0~100ppt), and temperature (0°C~100°C).
-
Automatic Calibration: 1~4 points automatic calibration with calibration guidance and automatic inspection function.
-
Standard Recognition: Automatically recognizes 84μS/cm, 1413μS/cm, and 12.88mS/cm standard solutions.
-
Temperature Compensation: Manual and automatic compensation from 0°C~50°C for accurate readings.
-
GLP Data Management: Stores up to 200 groups of data with USB output for easy transfer.
-
Flexible Electrode Holder: Allows for convenient one-handed operation.
-
Large Display: Clear LCD for easy reading in laboratory settings.
-
Stable Power: Operates on a 9V AC/DC adapter for continuous use.
