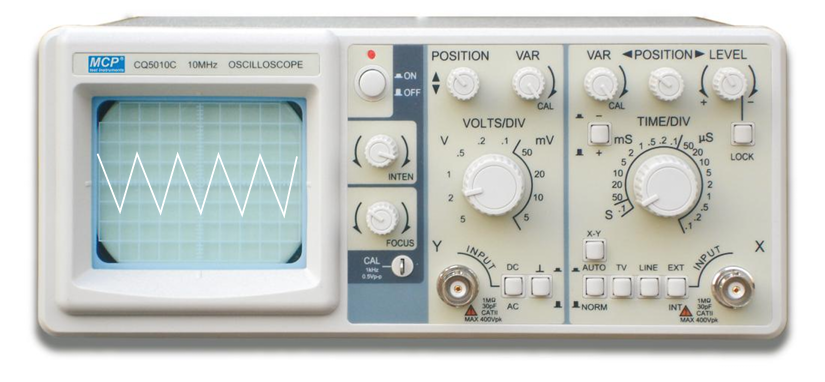

CQ5010C ANALOG OSCILLOSCOPE
BDT 25,480/-
Product Details
Brand: MCP
Model: CQ5010C
Country Of Origin: China
Features
-
Electrical encoder switch for high stability
-
10MHz single channel
-
TV synchronizing and X‑Y operating modes
-
Easy to operate
-
High performance with 5mV/div sensitivity
-
Modern, novel appearance
| CRT: |
Type: 3" round Display area: 8 × 10 div (1 div = 6mm) Potential: 1.3kV Color: Green Sensitivity: 5mV/div – 5V/div ±3% Bandwidth (–3dB): DC 0–10MHz, AC 10Hz–10MHz |
| Vertical System: |
Input impedance: 1MΩ ±3%, 30pF ±5pF Input coupling: DC, GND, AC Max. input voltage: 400V (DC + AC peak) Trimming ratio: 2.5:1 |
| Horizontal System: |
Sweep time: 0.1s/div – 0.1µs/div ±3% Trimming ratio: 2.5:1 Modes: AUTO, NORM, TV Source: INT, LINE, EXT Polarity: “+” or “–” |
| Trigger System: |
Sensitivity: INT 1 div, EXT 3 div, TV 2 div External trigger input impedance: 1MΩ ±3%, 25pF ±5pF Max. input voltage: 160V (DC + AC peak) |
| X‑Y Operation: |
Sensitivity: X 0.5V/div, Y 5mV/div – 5V/div Bandwidth (–3dB): DC 0–1MHz, AC 10Hz–1MHz Phase difference: ≤3° (DC–50kHz) |
| Calibration: | 1kHz ±2%, 0.5Vp‑t ±2% square wave |
| Power Source: |
110–127VAC ±10%, 220–240VAC ±10% 50Hz ±2Hz, 60Hz ±2Hz |
| Dimensions: | 225 × 91 × 290mm |
| Weight: | 3kg |
| Accessories: | Operation manual, fuse, power cable, probe |

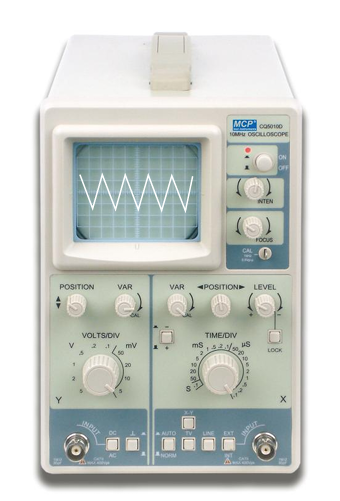

The CQ5010C / CQ5010D Oscilloscopes are compact, single‑channel 10MHz instruments designed for educational, laboratory, and electronics testing applications. With high sensitivity (5mV/div), stable encoder switching, and versatile operating modes including TV sync and X‑Y operation, they deliver reliable waveform analysis. Featuring a 3" CRT display, wide bandwidth, and precise triggering, these oscilloscopes are ideal for students, technicians, and engineers seeking affordable yet high‑performance measurement tools.
