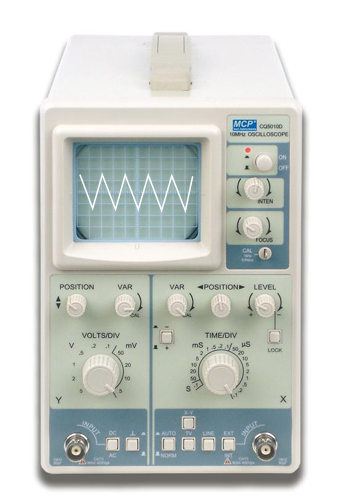

CQ5010D ANALOG OSCILLOSCOPE
BDT 25,480/-
Product Details
Brand: MCP
Model: CQ5010D
Country Of Origin: China
Features
-
Electrical encoder switch for high stability
-
10MHz single channel
-
TV synchronizing and X‑Y operating modes
-
Easy to operate
-
High performance with 5mV/div sensitivity
-
Modern, novel appearance
| CRT: |
Type: 3" round Display area: 8 × 10 div (1 div = 6mm) Potential: 1.3kV Color: Green Sensitivity: 5mV/div – 5V/div ±3% Bandwidth (–3dB): DC 0–10MHz, AC 10Hz–10MHz |
| Vertical System: |
Input impedance: 1MΩ ±3%, 30pF ±5pF Input coupling: DC, GND, AC Max. input voltage: 400V (DC + AC peak) Trimming ratio: 2.5:1 |
| Horizontal System: |
Sweep time: 0.1s/div – 0.1µs/div ±3% Trimming ratio: 2.5:1 Modes: AUTO, NORM, TV Source: INT, LINE, EXT Polarity: “+” or “–” |
| Trigger System: |
Sensitivity: INT 1 div, EXT 3 div, TV 2 div External trigger input impedance: 1MΩ ±3%, 25pF ±5pF Max. input voltage: 160V (DC + AC peak) |
| X‑Y Operation: |
Sensitivity: X 0.5V/div, Y 5mV/div – 5V/div Bandwidth (–3dB): DC 0–1MHz, AC 10Hz–1MHz Phase difference: ≤3° (DC–50kHz) |
| Calibration: | 1kHz ±2%, 0.5Vp‑t ±2% square wave |
| Power Source: |
110–127VAC ±10%, 220–240VAC ±10% 50Hz ±2Hz, 60Hz ±2Hz |
| Dimensions: | 140 × 196 × 290mm |
| Weight: | 3kg |
| Accessories: | Operation manual, fuse, power cable, probe |

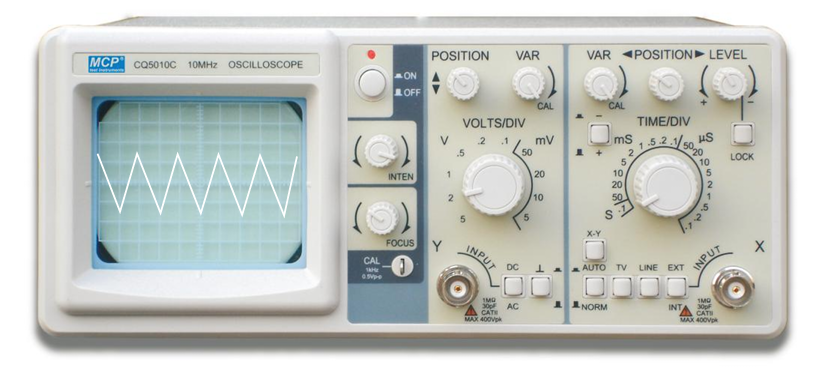

CQ5010C / CQ5010D 10 MHz Analog Oscilloscopes
A compact single-channel analog oscilloscope for everyday measurements. An electronic encoder switch gives stable, easy control, and 5 mV/div sensitivity shows small signals clearly on a 3" green CRT. TV sync and X-Y modes cover video and phase work.
Use it for: electronics teaching labs, student projects, repair benches, and general troubleshooting of audio, power, and low-frequency circuits.
You can:
View signals up to 10 MHz with 5 mV/div to 5 V/div vertical sensitivity
Set sweep speeds from 0.1 s/div down to 0.1 µs/div
Trigger in AUTO, NORM, or TV mode, from internal, line, or external sources, on positive or negative polarity
Check video signals with TV synchronizing
Compare two signals and measure phase in X-Y mode (up to 1 MHz)
Choose DC, AC, or GND input coupling
Verify calibration with the built-in 1 kHz, 0.5 Vp-p square wave
Key specs:
Display: 3" round CRT, 8 × 10 div (6 mm per div)
Bandwidth: DC to 10 MHz, or 10 Hz to 10 MHz with AC coupling
Input: 1 MΩ / 30 pF, 400 V maximum (DC + AC peak)
Choosing a model: CQ5010C is 225 × 91 × 290 mm. CQ5010D is 140 × 196 × 290 mm.
Specs: 110-127 V / 220-240 V (50/60 Hz), 3 kg.
Includes: probe, power cable, fuse, and operation manual.
The CQ5010C / CQ5010D Oscilloscopes are compact, single‑channel 10MHz instruments designed for educational, laboratory, and electronics testing applications. With high sensitivity (5mV/div), stable encoder switching, and versatile operating modes including TV sync and X‑Y operation, they deliver reliable waveform analysis. Featuring a 3" CRT display, wide bandwidth, and precise triggering, these oscilloscopes are ideal for students, technicians, and engineers seeking affordable yet high‑performance measurement tools.
