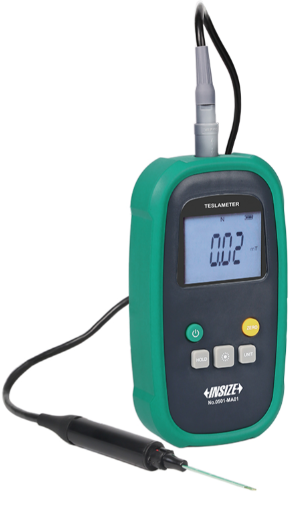

DC TESLAMETERS
BDT 74,968/-
Product Details
Brand: INSIZE
Model: 0501-MA01
Country Of Origin: China
Features:
Measure magnetic induction of DC magnetic field.
Directly display the N/S polarity of the measured magnetic field.
One-key zero function, eliminate the influence of zero drift before measurement.
Maximum value hold, record the maximum value of the changing magnetic field.
Unit switch between mT or G (1mT=10G).
Auto ranging.
Built-in USB interface for data transmission.
Display with backlight.
Auto power off.
| Probe type* | radial probe |
| Range | 2000mT |
| Resolution |
0.01mT (0~200mT) 0.1mT (200mT~2000mT) |
| Accuracy | ±1.0% |
| Temperature coefficient | ±0.1%/K |
| Zero drift | ±0.5mT/h |
| Interface | USB |
| Power supply | 3×1.5V AA batteries or USB |
| Dimension (L×W×H) | 165×90×40mm |
| Net weight | 350g |
The Insize 0501 Series DC Teslameters are professional-grade instruments designed to measure the magnetic induction of DC magnetic fields with high precision. Available in four models (0501-MA01, MA01K, MA05, MA05K), they feature either radial or axial probes to suit different measurement applications. The radial probe models are ideal for measuring the surface magnetic field density of permanent magnets and DC constant magnetic fields, while the axial probe models are suited for measuring magnetic fields generated by solenoids or toroidal coils and scanning surface magnetic distribution.
These teslameters offer a wide range of 2000mT with a resolution of 0.01mT (0~200mT) and 0.1mT (200mT~2000mT). The MA01/MA01K models provide ±1.0% accuracy, while the MA05/MA05K models offer ±2.0% accuracy (≤1000mT) and ±5.0% (1000mT~2000mT). Key features include direct N/S polarity display, a one-key zero function to eliminate zero drift, maximum value hold for changing magnetic fields, switchable units (mT or G), auto ranging, and a backlit display. Data can be transmitted via the built-in USB interface. The devices are powered by three 1.5V AA batteries or USB, measure 165×90×40mm, and weigh 350g. An auto power-off function conserves battery life.
Precision Magnetic Field Measurement with the Insize 0501 Series DC Teslameters
Measure DC magnetic fields accurately with the Insize 0501 Series DC Teslameters. Available in four models with radial or axial probes, these professional instruments are designed for applications ranging from permanent magnet testing to solenoid and toroidal coil measurement. With a wide 2000mT range and high resolution, they deliver reliable data for quality control, research, and industrial applications.
Key Features and Benefits:
-
Four Model Options: Choose from 0501-MA01, MA01K (radial/axial, ±1.0% accuracy) or 0501-MA05, MA05K (radial/axial, ±2.0% accuracy).
-
Wide Measurement Range: Measures up to 2000mT with 0.01mT resolution (0~200mT) and 0.1mT (200mT~2000mT).
-
Direct Polarity Display: Shows N/S polarity of the measured magnetic field.
-
One-Key Zero Function: Eliminates zero drift before measurement for accurate readings.
-
Maximum Value Hold: Records the maximum value of changing magnetic fields.
-
Unit Switching: Toggle between mT and G (1mT=10G) for versatile reporting.
-
Auto Ranging: Automatically selects the optimal range for the measurement.
-
Data Transmission: Built-in USB interface for easy data transfer.
-
User-Friendly Features: Backlit display and auto power-off to conserve battery life.
-
Flexible Power: Operates on 3×1.5V AA batteries or USB power.
