DG1000-1500SP DC GENERATOR
BDT 65,797/-
Product Details
Brand: MCP
Model: DG1000-1500SP
Country Of Origin: China
Main Advantages
Separate excitation for precise control
Powerful 1000W output
Stable 220VDC output
Mobile base with casters
Heavy-duty and robust construction
Easy wiring with labeled terminals
Suitable for education and research
| Type: | DC Generator |
| Excitation Voltage: | 0~220VDC |
| Excitation Current: | 0.14A |
| Max. Output Voltage: | 220VDC |
| Max. Output Power: | 1000W |
| Max. Rotate Speed: | 1500rpm |
| Shaft Height: | 95mm |
| Dimensions: | 370 x 180 (190) x 290 mm |
| Weight: | 26.5kg |

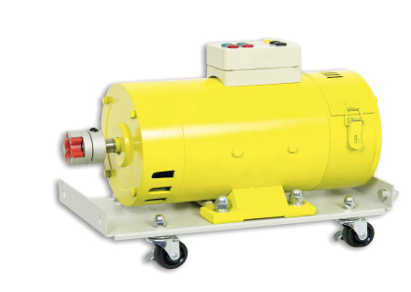

The MCP DG1000-1500SP DC Generator is a powerful, heavy-duty DC generator designed for reliable DC power generation with precise control. Ideal for industrial, commercial, and educational applications, it features separate excitation windings, allowing independent control of the field and armature for accurate voltage regulation. The DG1000-1500SP operates on an excitation voltage of 0~220VDC with an excitation current of 0.14A, delivering a maximum output voltage of 220VDC and a maximum output power of 1000W. It achieves a maximum rotate speed of 1500rpm. The generator features a 95mm shaft height and dimensions of 370 x 180 (190) x 290 mm, weighing 26.5kg. It is mounted on a base with casters for easy mobility and includes clearly labeled terminals for straightforward wiring.
MCP DG1000-1500SP DC Generator – 1000W, 220VDC, 1500rpm
Generate reliable DC power with precision using the MCP DG1000-1500SP, a powerful DC generator designed for controlled voltage output and dependable performance. Ideal for industrial, commercial, and educational applications, this generator combines separate excitation construction with a mobile, heavy-duty design.
Key Features & Benefits:
-
Separate Excitation Design: Allows independent control of the field and armature for precise voltage regulation.
-
Powerful DC Output: Delivers a maximum output voltage of 220VDC with a maximum output power of 1000W.
-
Wide Excitation Range: Operates on 0~220VDC excitation voltage with a low excitation current of 0.14A.
-
Stable Performance: Achieves a maximum rotate speed of 1500rpm.
-
Mobile & Heavy-Duty Design: Features a 95mm shaft height, dimensions of 370 x 180 (190) x 290 mm, a weight of 26.5kg, and is mounted on a base with casters for easy mobility.
-
Easy Wiring: Equipped with clearly labeled terminals for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
