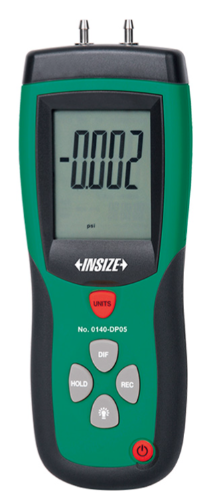

Differential Pressure Manometer
BDT 39,147/-
Product Details
Brand: INSIZE
Model: 0140-DP05
Country Of Origin: China
Features:
Offset and differential measurement
Record maximum/minimum/average value with relative timestamp
Built-in USB interface for data transmission
Unit: kPa, psi, inH₂O, bar, mbar, inHg, mmHg, oz/in², ftH₂O, cmH₂O, kg/cm²
Zero adjust
Data hold
Display with backlight
Low battery indication
Automatic power off
Safety rating: CAT III 600V
| Measurement range | -34.47kPa~34.47kPa |
| Maximum pressure | 137.9kPa |
| Unit | kPa |
| Resolution | 0.01 |
| Accuracy | ±0.3%FSO (25°C) |
| Repeatability | ±0.2% (Max. ±0.5%FSO) |
| Linearity/hysteresis | ±0.29%FSO |
| Response time | 0.5s typical |
| Operation temperature | 0°C~50°C |
| Power supply | 1×9V 6F22 battery or AC/DC adapter |
| Dimension | 165×90×40mm |
| Weight | 350g |
The Insize 0140-DP05 is a high-precision Differential Pressure Manometer engineered for accurate offset and differential pressure measurement. With a measurement range of -34.47kPa to 34.47kPa and a maximum pressure tolerance of 137.9kPa, this instrument is ideal for HVAC diagnostics, pneumatic system testing, and laboratory applications. It features a high-resolution display (0.01 kPa) and delivers reliable accuracy of ±0.3%FSO at 25°C.
This advanced manometer offers a wide selection of measurement units, including kPa, psi, inH₂O, bar, mbar, inHg, mmHg, oz/in², ftH₂O, cmH₂O, and kg/cm², providing versatility for diverse industrial requirements. Key functions include Max/Min/Average recording with relative timestamps, zero adjustment, data hold, and a backlit display for low-light environments. Data can be transmitted via the built-in USB interface. The device is powered by a 9V battery or an AC/DC adapter and features a safety rating of CAT III 600V, ensuring safe operation in electrical environments.
Precision Differential Pressure Measurement with the Insize 0140-DP05 Manometer
Take accurate pressure readings with the Insize 0140-DP05 Differential Pressure Manometer. Designed for professionals in HVAC, industrial maintenance, and laboratory testing, this robust instrument provides reliable offset and differential pressure measurements with exceptional accuracy. Its wide range of measurement units and advanced data logging features make it a versatile tool for diagnosing airflow, filter pressure drops, and pneumatic system performance.
Key Features and Benefits:
-
Wide Measurement Range: Measures from -34.47kPa to 34.47kPa with a 0.01 resolution, handling a broad spectrum of low-pressure applications.
-
Multiple Units: Supports 11 units including kPa, psi, inH₂O, bar, mbar, inHg, mmHg, oz/in², ftH₂O, cmH₂O, and kg/cm².
-
Advanced Data Recording: Records maximum, minimum, and average values with relative timestamps for detailed analysis.
-
High Accuracy: Features ±0.3%FSO accuracy (at 25°C) and ±0.2% repeatability for dependable results.
-
User-Friendly Design: Includes zero adjustment, data hold, a backlit display, and low battery indication.
-

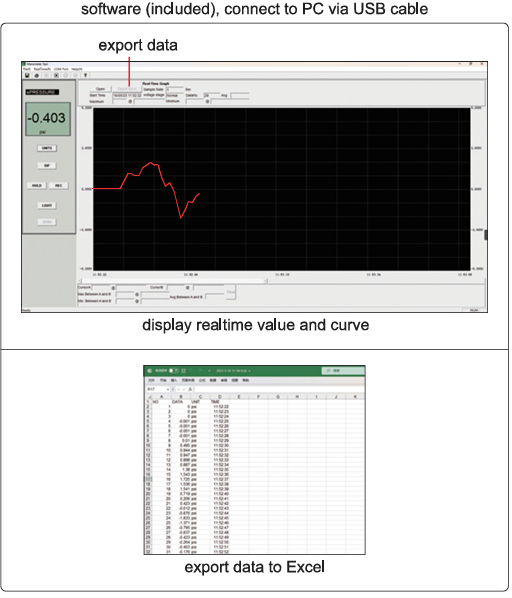

Data Transmission: Built-in USB interface allows for easy data transfer to a computer.
-
Safety Compliant: Rated CAT III 600V for safe use in electrical testing environments.
