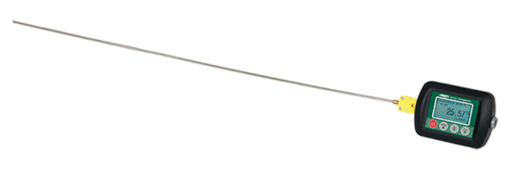

Digital Thermometer (High Temperature Type)
BDT 185,367/-
Product Details
Brand: INSIZE
Model: 0324-DT11
Country Of Origin: China
Features:
Can measure the temperature of liquid, steam and gas
Real time/MAX/MIN/AVG temperature display
Built-in gravity sensor, automatic horizontal or vertical screen display
Display backlight
Automatic power off
Software is included: on-line monitoring, data storage
| Thermocouple type | K/E/N/T/S |
| Temperature range |
K: -200°C~1372°C E: -200°C~1000°C N: -200°C~1300°C T: -200°C~400°C S: -50°C~1768°C |
| Temperature accuracy |
K: ±0.8°C (at -200°C~0°C); ±0.6°C (at 0°C~1372°C) E: ±0.7°C (at -200°C~0°C); ±0.5°C (at 0°C~1000°C) N: ±0.8°C (at -200°C~0°C); ±0.6°C (at 0°C~1300°C) T: ±0.8°C (at -200°C~0°C); ±0.6°C (at 0°C~400°C) S: ±1.5°C (at -50°C~0°C); ±1.2°C (at 0°C~1768°C) |
| Temperature resolution | 0.1°C/0.01°C (adjustable) |
| Annual stability | ±8μV |
| Memory capacity | 100,000 |
| Logging interval | 2s~99s |
| Power supply | rechargeable lithium battery, working time≥40h |
| Operation environment |
temperature: -10°C~50°C humidity: 0%RH~95%RH (non-condensing) |
| Dimension | 60×63×83mm |
| Weight | 88g |
The Insize 0324-DT11 is a high-temperature digital thermometer engineered for precise measurement of liquids, steam, and gases in extreme thermal environments. Compatible with K, E, N, T, and S type thermocouples, it covers an impressive temperature range up to 1768°C (S-type). The package includes a K-type bar armoured thermocouple (Ø3×500mm), and an optional K-type armoured thermocouple with a 2m extension wire (Ø1.5×1000mm) is available for specialized applications.
This advanced instrument features a built-in gravity sensor that automatically adjusts the display orientation (horizontal or vertical) for optimal readability. It offers real-time, MAX, MIN, and AVG temperature displays, a backlit screen, and an adjustable resolution of 0.1°C or 0.01°C. With a massive 100,000-point memory capacity and a logging interval from 2s to 99s, it is ideal for long-term data collection. The rechargeable lithium battery provides over 40 hours of working time. The included PC software enables on-line monitoring, data collection, display, and storage.
High-Temperature Precision Measurement with the Insize 0324-DT11 Thermometer
Measure extreme temperatures with confidence using the Insize 0324-DT11 High Temperature Digital Thermometer. Designed for industrial furnaces, boiler systems, and advanced research, this robust instrument supports K, E, N, T, and S type thermocouples, reaching up to 1768°C. The included K-type armoured thermocouple ensures durability in harsh environments, while the built-in gravity sensor automatically adjusts the screen orientation for easy reading.
Key Features and Benefits:
-
Multi-Thermocouple Compatibility: Supports K, E, N, T, and S type thermocouples for versatile high-temperature measurement.
-
Extreme Temperature Range: Measures up to 1768°C (S-type) with high accuracy (±0.6°C for K-type at 0°C~1372°C).
-
High Memory Capacity: Stores up to 100,000 data points with an adjustable logging interval from 2s to 99s.
-
Smart Display: Built-in gravity sensor automatically switches between horizontal and vertical screen orientations.
-
Comprehensive Data Display: Shows real-time, MAX, MIN, and AVG temperature values.
-
Long Battery Life: Rechargeable lithium battery provides ≥40 hours of continuous operation.
-
PC Software Included: Enables on-line monitoring, data collection, display, and storage.
-
Rugged & Portable: Compact design (60×63×83mm) and lightweight (88g) with a backlit display
