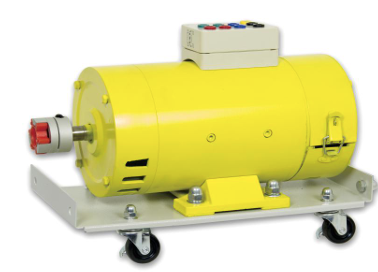

DM1000-1500CP COMPOUND DC MOTOR
BDT 65,797/-
Product Details
Brand: MCP
Model: DM1000-1500CP
Country Of Origin: China
Main Advantages
Compound winding for balanced torque and speed
Powerful 1000W output
Variable speed via 0~220VDC armature
Stable 220VDC excitation
Mobile base with casters
Heavy-duty and robust construction
Suitable for education and research
| Motor Type: | Compound DC Motor |
| Armature Voltage: | 0~220VDC |
| Excitation Voltage: | 220VDC |
| Max. Armature Current: | 6A |
| Excitation Current: | 0.14A |
| Max. Output Power: | 1000W |
| Max. Rotate Speed: | 1500rpm |
| Shaft Height: | 95mm |
| Dimensions: | 370 x 180 (190) x 290 mm |
| Weight: | 25.5kg |
The MCP DM1000-1500CP Compound DC Motor is a powerful, heavy-duty DC motor designed for applications requiring a balance of high starting torque and stable speed regulation. Ideal for industrial, commercial, and educational applications, it features compound winding construction, combining both series and shunt field windings for optimal performance. The DM1000-1500CP operates on an armature voltage of 0~220VDC and a fixed excitation voltage of 220VDC, with a maximum armature current of 6A and an excitation current of 0.14A. It delivers a maximum output power of 1000W and a maximum rotate speed of 1500rpm. The motor features a 95mm shaft height and dimensions of 370 x 180 (190) x 290 mm, weighing 25.5kg. It is mounted on a base with casters for easy mobility and includes clearly labeled terminals for straightforward wiring.
MCP DM1000-1500CP Compound DC Motor – 1000W, 1500rpm, 220VDC
Power your equipment with versatility and precision using the MCP DM1000-1500CP, a compound DC motor designed for balanced torque and speed regulation. Ideal for industrial, commercial, and educational applications, this motor combines series and shunt field windings with a mobile, heavy-duty design.
Key Features & Benefits:
-
Compound Winding Design: Combines series and shunt field windings for a balance of high starting torque and stable speed regulation.
-
Powerful Output: Delivers a maximum output power of 1000W with a maximum rotate speed of 1500rpm.
-
Variable Speed Control: Operates on a 0~220VDC armature voltage with a fixed 220VDC excitation voltage for smooth, adjustable speed control.
-
Reliable Current Handling: Maximum armature current of 6A and excitation current of 0.14A.
-
Mobile & Heavy-Duty Design: Features a 95mm shaft height, dimensions of 370 x 180 (190) x 290 mm, a weight of 25.5kg, and is mounted on a base with casters for easy mobility.
-
Easy Wiring: Equipped with clearly labeled terminals for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
