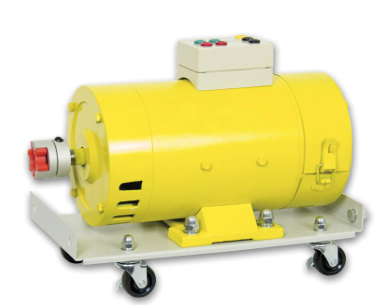

DM1000-1500SP SEPARATED/SHUNT DC MOTOR
BDT 65,797/-
Product Details
Brand: MCP
Model: DM1000-1500SP
Country Of Origin: China
Main Advantages
Separate armature and field control
Powerful 1000W output
Variable speed via 0~220VDC
Stable 1500rpm performance
Mobile base with casters
Heavy-duty and robust construction
Suitable for education and research
| Motor Type: | Separated/Shunt DC Motor |
| Armature & Excitation Voltage: | 0~220VDC |
| Max. Armature Current: | 6A |
| Max. Excitation Current: | 0.14A |
| Max. Output Power: | 1000W |
| Max. Rotate Speed: | 1500rpm |
| Shaft Height: | 95mm |
| Dimensions: | 370 x 180 (190) x 290 mm |
| Weight: | 26.5kg |
The MCP DM1000-1500SP Separated/Shunt DC Motor is a powerful, heavy-duty DC motor designed for precise speed and torque control. Ideal for industrial, commercial, and educational applications, it features separate armature and excitation windings, allowing independent control of field and armature voltages for advanced motor characterization. The DM1000-1500SP operates on an armature and excitation voltage of 0~220VDC, with a maximum armature current of 6A and a maximum excitation current of 0.14A. It delivers a maximum output power of 1000W and a maximum rotate speed of 1500rpm. The motor features a 95mm shaft height and dimensions of 370 x 180 (190) x 290 mm, weighing 26.5kg. It is mounted on a base with casters for easy mobility and includes clearly labeled terminals for straightforward wiring.
MCP DM1000-1500SP Separated/Shunt DC Motor – 1000W, 1500rpm, 220VDC
Power your equipment with precision and flexibility using the MCP DM1000-1500SP, a separated/shunt DC motor designed for advanced speed and torque control. Ideal for industrial, commercial, and educational applications, this motor combines independent field and armature control with a mobile, heavy-duty design.
Key Features & Benefits:
-
Separated/Shunt Design: Allows independent control of armature and excitation voltages for advanced motor characterization and precise speed regulation.
-
Powerful Output: Delivers a maximum output power of 1000W with a maximum rotate speed of 1500rpm.
-
Reliable Current Handling: Maximum armature current of 6A and excitation current of 0.14A.
-
Variable Speed Control: Operates on 0~220VDC for both armature and excitation for smooth, adjustable speed control.
-
Mobile & Heavy-Duty Design: Features a 95mm shaft height, dimensions of 370 x 180 (190) x 290 mm, a weight of 26.5kg, and is mounted on a base with casters for easy mobility.
-
Easy Wiring: Equipped with clearly labeled terminals for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
