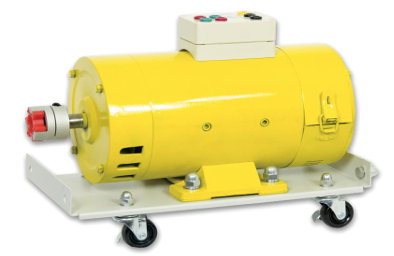

DM1000-1500SR SERIES DC MOTOR
BDT 65,797/-
Product Details
Brand: MCP
Model: DM1000-1500SR
Country Of Origin: China
Main Advantages
Series winding for high starting torque
Powerful 1000W output
Variable speed via 0~220VDC
Stable 1500rpm performance
Mobile base with casters
Heavy-duty and robust construction
Suitable for education and research
| Motor Type: | Series DC Motor |
| Armature & Excitation Voltage: | 0~220VDC |
| Max. Armature & Excitation Current: | 7A |
| Max. Output Power: | 1000W |
| Max. Rotate Speed: | 1500rpm |
| Shaft Height: | 95mm |
| Dimensions: | 370 x 180 (190) x 290 mm |
| Weight: | 25kg |
The MCP DM1000-1500SR Series DC Motor is a powerful, heavy-duty DC motor designed for reliable performance and high starting torque. Ideal for industrial, commercial, and educational applications, it features series winding construction for robust operation under heavy loads. The DM1000-1500SR operates on an armature and excitation voltage of 0~220VDC, with a maximum armature and excitation current of 7A. It delivers a maximum output power of 1000W and a maximum rotate speed of 1500rpm. The motor features a 95mm shaft height and dimensions of 370 x 180 (190) x 290 mm, weighing 25kg. It is mounted on a base with casters for easy mobility and includes clearly labeled terminals for straightforward wiring.
MCP DM1000-1500SR Series DC Motor – 1000W, 1500rpm, 220VDC
Power your equipment with high torque performance using the MCP DM1000-1500SR, a series DC motor designed for reliable operation and robust load handling. Ideal for industrial, commercial, and educational applications, this motor combines series winding construction with a mobile, heavy-duty design.
Key Features & Benefits:
-
Series Winding Design: Provides high starting torque and stable operation under heavy loads.
-
Powerful Output: Delivers a maximum output power of 1000W with a maximum rotate speed of 1500rpm.
-
Reliable Current Handling: Maximum armature and excitation current of 7A.
-
Variable Speed Control: Operates on 0~220VDC for both armature and excitation for smooth, adjustable speed control.
-
Mobile & Heavy-Duty Design: Features a 95mm shaft height, dimensions of 370 x 180 (190) x 290 mm, a weight of 25kg, and is mounted on a base with casters for easy mobility.
-
Easy Wiring: Equipped with clearly labeled terminals for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
