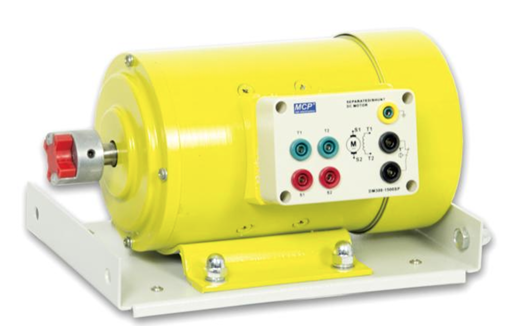

DM300-1500SP SEPARATED/SHUNT DC MOTOR
BDT 48,251/-
Product Details
Brand: MCP
Model: DM300-1500SP
Country Of Origin: China
Main Advantages
Separate armature and field control
Powerful 300W output
Variable speed via 0~220VDC
Stable 1500rpm performance
Durable industrial construction
Easy wiring with labeled terminals
Suitable for education and research
| Motor Type: | Separated/Shunt DC Motor |
| Armature & Excitation Voltage: | 0~220VDC |
| Max. Armature Current: | 1.7A |
| Max. Excitation Current: | 0.14A |
| Max. Output Power: | 300W |
| Max. Rotate Speed: | 1500rpm |
| Shaft Height: | 75mm |
| Dimensions: | 280 x 180 (200) x 150 mm |
| Weight: | 13kg |
The MCP DM300-1500SP Separated/Shunt DC Motor is a powerful, high-performance DC motor designed for precise speed and torque control. Ideal for industrial, commercial, and educational applications, it features separate armature and excitation windings, allowing independent control of field and armature voltages for advanced motor characterization. The DM300-1500SP operates on an armature and excitation voltage of 0~220VDC, with a maximum armature current of 1.7A and a maximum excitation current of 0.14A. It delivers a maximum output power of 300W and a maximum rotate speed of 1500rpm. The motor features a 75mm shaft height and dimensions of 280 x 180 (200) x 150 mm, weighing 13kg, with clearly labeled terminals (T1, T2, and others) for straightforward wiring.
MCP DM300-1500SP Separated/Shunt DC Motor – 300W, 1500rpm, 220VDC
Power your equipment with precision and flexibility using the MCP DM300-1500SP, a separated/shunt DC motor designed for advanced speed and torque control. Ideal for industrial, commercial, and educational applications, this motor combines independent field and armature control with a robust, durable design.
Key Features & Benefits:
-
Separated/Shunt Design: Allows independent control of armature and excitation voltages for advanced motor characterization and precise speed regulation.
-
Powerful Output: Delivers a maximum output power of 300W with a maximum armature current of 1.7A and excitation current of 0.14A.
-
Variable Speed Control: Operates on 0~220VDC for both armature and excitation, with smooth adjustable speed up to 1500rpm.
-
Compact & Robust Design: Features a 75mm shaft height and dimensions of 280 x 180 (200) x 150 mm, weighing 13kg.
-
Easy Wiring: Equipped with clearly labeled terminals (T1, T2, and others) for straightforward connection.
-
Industrial-Grade Construction: Built to withstand demanding environments in industrial, commercial, and educational settings.
